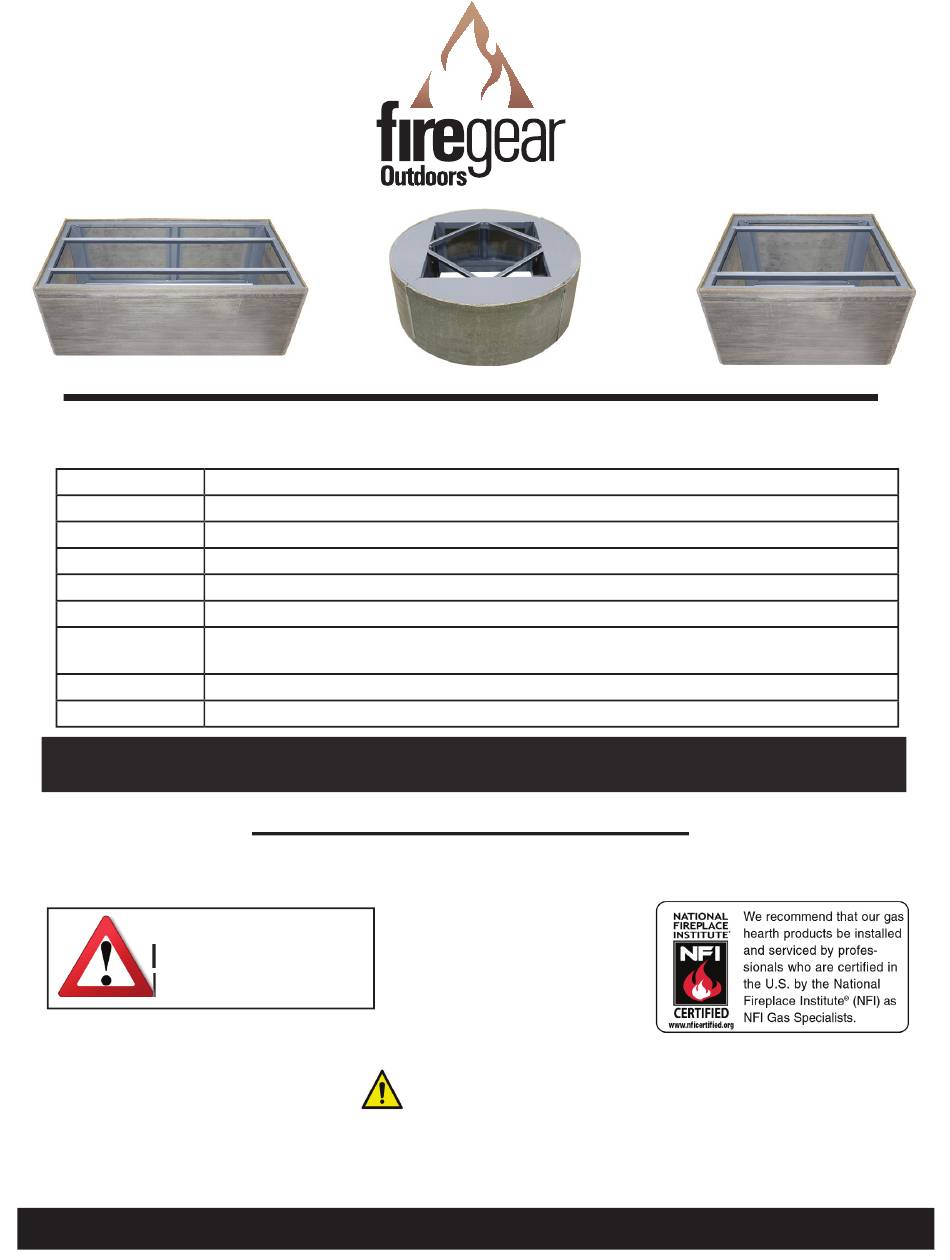

AnF "Assemble-n-Finish" Fire Pit Enclosures
AnF "Assemble-n-Finish" Fire Pit Enclosures
Model
Description
ANF-R42
42" x18" enclosure fi ts FPB-16R/19R & FPB-20S
ANF-R48
48"x18" enclosure fi ts FPB19R/25R or FPB20S/26S
ANF-R60
60"x18" enclosure fi ts FPB-25R/29R/33R or FPB26S/32S/38S
ANF-L48
48"x 24"x 18" enclosure fi ts FPB-24L/30L/36L
ANF-L66
66"x24"x18" enclosure fi ts FPB-24L/30L/36L or (2) FPB-24L (end to end)
ANF-L74
74"x 24"x18" enclosure fi ts FPB-24L/30L/36L or (2) FPB-24L or (2) FPB-30L (end to end)
ANF-L90
90"x 24" x 18" enclosure FPB-24L/30L/36L or (2) FPB-24L or (2) FPB-30L (end to end)
or (2) FPB-36L (end to end)
ANF-S48
42"x 42" x 18" enclosure fi ts FPB-19R/25R, FPB-20S/26S
ANF-S60
60"x 60"x 18" enclosure fi ts FPB-25R/29R/33R or FPB-26S/32S/38S
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO ASSEMBLE OR INSTALL THIS PRODUCT
These enclosures requires a minimum 18-square inches of cross ventilation per
installed burner. Failure to provide proper ventilation can void the warranty.
Warning:
Warning:
Outdoor Use Only
Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLATION PRECAUTION:
CALIFORNIA PROPOSITION 65
WARNING
This product can expose you to Chromium, which is
known to the state of California to cause cancer
and birth defects or other reproductive harm.
(For more information, go to www.p65warnings.ca.gov)
Advertisement
Related Manuals for Firegear ANF-R42
Summary of Contents for Firegear ANF-R42
- Page 1 AnF “Assemble-n-Finish” Fire Pit Enclosures AnF “Assemble-n-Finish” Fire Pit Enclosures Model Description ANF-R42 42” x18” enclosure fi ts FPB-16R/19R & FPB-20S ANF-R48 48”x18” enclosure fi ts FPB19R/25R or FPB20S/26S ANF-R60 60”x18” enclosure fi ts FPB-25R/29R/33R or FPB26S/32S/38S ANF-L48 48”x 24”x 18” enclosure fi ts FPB-24L/30L/36L ANF-L66 66”x24”x18”...
- Page 2 Fig. 1 Round AnF Contents Leveling Legs (16) Self Tapping Screws (16) Cement Board Screws AnF-R42 & AnF-R48: 4 Legs AnF-R60: 8 Legs STEP 1 It is important to start the assembly process with the quarter sections upside-down. To make sure the quarter pieces are upside down, the bottom side has a nutsert (See Fig 2 - circle).
- Page 3 Please note that this is a OPTIONAL feature only used for specifi c Firegear Outdoor models. The chart below shows which Fire Pit Burner models fi t in each model of AnF, and which ones require pan supports.
- Page 4 STEP 4 10mm MgO (Magnesium Oxide) Board is provided for the top surface. Each board comes with a pre-marked template based on the most popular Firegear burners for the size of AnF enclosures (See Fig. 8). Place all (4) boards on top of the AnF. Mark where you need to cut following the template. For each piece you will need to cut on the inside (for the pan) and the outside (for the edge of the AnF).
- Page 5 STEP 5 After the entire AnF is assembled, install the Vent-Kit-6x12. These vents are designed to be used with the AnF Series as well as universal vents for many other types of fi re pit enclosures. Look at the contents provided to ensure you have received everything correctly. (2) Vents (12) Phillips Black (12) Stainless Steel...
- Page 6 Linear AnF Enclosure Assembly NOTE Two people are recommended to assemble all enclosures. It is also recommended to assemble the AnF enclosure on a fl at surface. Assembly of the AnF should be done at or near the location of the installation.
- Page 7 Butt the inner fl ange of one of the panels to the non-fl ange side of another panel (See Fig. 13). Fig. 14 Butting Ends Together After the two ends are butt together, secure them with self-tapping screws; one into the inner hole at the top and one into inner hole at the bottom of the two panels (See Fig.
- Page 8 Using the self tapping screws, install them in the pre-drilled holes on each side (See Fig. 18). Fig. 17 Pan Support Placement Fig. 18 Install Pan Supports If you are using a Firegear Burner System, you MUST install the supports for the AnF. Every Linear Burner System requires supports. STEP 4 10mm MgO (Magnesium Oxide) Board is provided for the top surface.
- Page 9 STEP 5 After the entire AnF is assembled, install the Vent-Kit-6x12. These vents are designed to be used with the AnF Series as well as universal vents for many other types of fi re pit enclosures. Look at the contents provided to ensure you have received everything correctly. (2) Vents (12) Phillips Black (12) Stainless Steel...
- Page 10 Square AnF Enclosure Assembly NOTE Two people are recommended to assemble all enclosures. It is also recommended to assemble the enclosure on a fl at surface. The assembly of the AnF should be done at or near the location of the installation.
- Page 11 Butt the inner fl ange of one other panels to the non-fl ange side of another panel (See Fig. 24). Fig. 24 Butting Ends Together After the two ends are butt together, secure them with self-tapping screws; one into the inner hole at the top and one into inner hole at the bottom of the two sections (See Fig.
- Page 12 STEP 4 10mm MgO (Magnesium Oxide) Board is provided for the top surface. Each board comes with a pre-marked template based on the most popular Firegear burners for the size of AnF enclosures (See Fig. 29). Place both boards on top of the AnF. Mark where you need to cut following the template. For each piece you will need to cut on the inside in order to fi t the burner type.
- Page 13 Step 5 After the entire AnF is assembled, install the Vent-Kit-6x12. These vents are designed to be used with the AnF Series as well as universal vents for many other types of fi re pit enclosures. Look at the contents provided to ensure you have received everything correctly. (2) Vents (12) Phillips Black (12) Stainless Steel...
- Page 14 For Commercial applications, the liability of payment record from the end user to verify Firegear Outdoors is limited to the express terms of this purchase date and to establish warranty period. This warranty. We expressly disclaim any and all implied...
