Triad DSi-1 Quick Start Manual

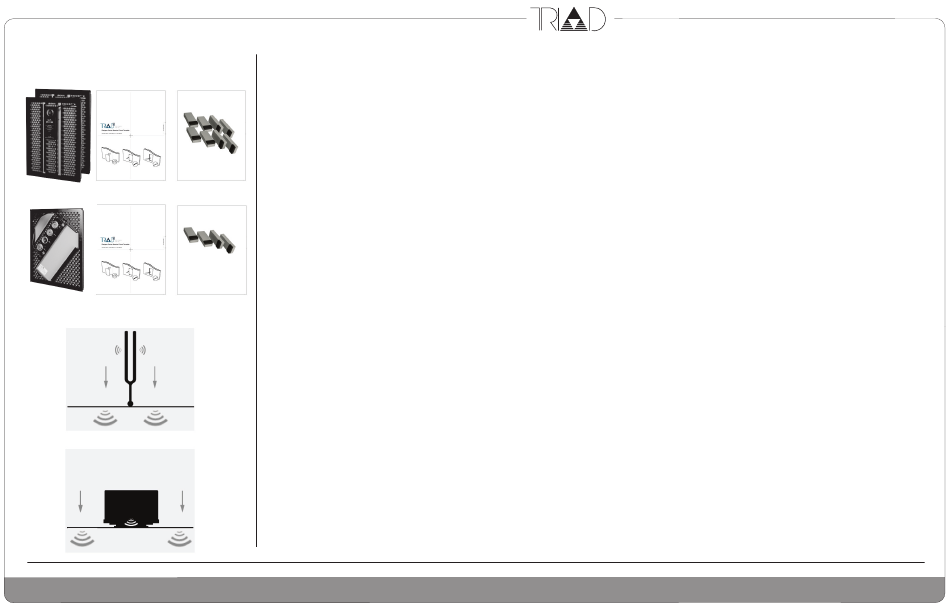

Unpacking / Contents
DSi-1, DSi-3, DS100se, DS300se, DS300sen, DS500se, speaker models
DSi-2, DS200dc, DS400dc dual channel speaker models
Speaker Panels Cutout Template Installation Lugs
(For installs
without Backboxes)
Tuning Fork:
Triad DesignerSeries Exciter:
TriadSpeakers.com • Sales: 1800-666-6316
Specifications:
(Note: Frequency Response may vary with wall construction or finish)
Applicable Models Dimensions
DSi-1 15-3/4x11-7/8x1-5/8in; 40x30x4cm
DSi-2dc (2ch) (Prelim) 15-3/4x11-7/8x1-5/8in; 40x30x4cm
DSi-3 15-3/4x11-7/8x1-5/8in; 40x30x4cm
DS100se 17-3/4x13-5/8x1-5/8in; 45x35.5x4cm
DS100sen 17-3/4x7-7/8x1-5/8in; 45x35.5x4cm
DS200dc (2ch) 17-3/4x13-5/8x1-5/8in; 45x35.5x4cm
DS300se 17-3/4x13-5/8x1-5/8in; 45x35.5x4cm
DS300sen 17-3/4x7-7/8x1-5/8in; 45x20.5x4cm
DS400dc (2ch) 17-3/4x13-5/8x1-5/8in; 45x35.5x4cm
DS500se 17-3/4x13-5/8x1-5/8in; 45x35.5x4cm
Important Installation Information!
* DSB (Regular and Narrow) & DSi-B BackBoxes - provides some sound isolation to the adjoining area. While optional for stud walls, they are STRONGLY RECOMMENDED, especially for interior
walls. BackBoxes are NOT new construction brackets: All DesignerSeries speakers are designed to be installed after drywall is hung.
* DSSW & DSi-SW SolidWall BackBoxes (Regular and Narrow) - are required for solid structures. They do NOT isolate sound to adjoining living areas. See installation instructions packed with each BackBox.
For other installation types see complete product installation manual online at www.triadspeakers.com/support.html.
All DS Speakers Must Be Used with HPF-2 or HPF-8 High Pass Filter/Current Limiter located at the amplifier to protect the speaker and validate the warranty.
Before Installing DesignerSeries Speakers, ensure that the building is environmentally sealed, dehumidified, and at stable temperature between 61 degrees F (16 C) & 95 degrees F (35C). Use only
with quick drying drywall compound (hours, not days). Do not install when humidity is high or environment is moist.
North American Limited Warranty
Triad speakers are warranted to be free from defects in manufacturing and workmanship (10) years when operated under normal conditions and installed as recommended.
Should any such defects occur within the warranty period call Triad Service at 1-877-264-6315 for an RA (Return Authorization) number. Return the product in intact factory
packaging with RA number clearly visible on outside of box and proof & date of purchase inside to:
Triad Speakers Inc., 15835 NE Cameron Blvd., Portland, Oregon 97230 USA
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact factory packaging, contact your dealer or Triad Service for purchase. At our discretion
we will repair or replace the product and return it free of charge. International customers should contact their dealer for service. This limited warranty is extended only to Triad
products and is expressly in lieu of all other warranties expressed or implied.
Triad DesignerSeries Speakers
Triad's DesignerSeries speaker panels use revolutionary "Diffuse Source", Opti Damping", & "Opti Drive" technologies to create clear, clean, intelligible sound from invisible speak-
ers. Unlike traditional cone speakers, DesignerSeries panels create sound using age-old musical instrument principles (think guitar). We replace the strings with a powerful electrical
tuning fork called an Exciter and the instrument body with a strong, light, aircraft grade honeycomb panel durable enough for walls & ceilings. The result? Incredibly natural sound.
Installed as instructed (see overleaf), DesignerSeries speakers are completely sealed and suitable for wet humid areas such as pools or bathrooms as long as the wall's interior is
dry. They work especially well where uniform coverage and even volume levels are desired, such as surround channels and distributed audio. Installed vertically or horizontally,
their unique dispersion is perfect for locations where traditional speakers suffer, e.g. high on a wall well above listening or artwork heights or even in the ceiling. Built robust for the
long term, DesignerSeries speakers include an HPF-2 or 8 protection unit (depending on model & # of speakers) located at the amp to protect the panels from amplifier damage.
Triad DesignerSeries speakers offer Integrators & Designers a world class sounding speaker with no compromise to the interior design of any living space.
Built robust for the long term, DesignerSeries speakers include a protection unit, HPF-2 or 8 (depending on # of speakers used), located at the amp, for protection from amplifier
damage. Triad DesignerSeries speakers offer Integrators & Designers a world class sounding speaker with no compromise to the interior design of any living space.
DesignerSeries
Frequency Response Sensitivity
112 Hz - 20 kHz 83 dB
112 Hz - 20 kHz 83 dB
112 Hz - 20 kHz 84 dB
105 Hz - 20 kHz 83 dB
130 Hz - 20 kHz 85 dB
100 Hz - 20 kHz 85 dB
105 Hz - 20 kHz 85 dB
130 Hz - 20 kHz 85 dB
100 Hz - 20 kHz 88 dB
105 Hz - 20 kHz 87 dB
Triad DesignerSeries Products - Quick Start Guide
Page 1
- Product Info & Warranty -
Max Power (Cont) Sub Crossover Freq Impedance
15 Watts per ch 125Hz 8 ohms
2x15 Watts per panel 125Hz 8 ohms/ch
30 Watts per ch 125Hz 8 ohms
15 Watts per ch 120Hz 8 ohms
15 Watts per ch 130Hz 8 ohms
2x15 Watts per panel 120Hz 8 ohms/ch
30 Watts per ch 110Hz 8 ohms
30 Watts per ch 130Hz 8 ohms
2x30 Watts per panel 120Hz 8 ohms/ch
50 Watts per ch 105Hz 4 ohms
