Lightware WP-HDMI-TPS-TX97-EU Quick Start Manual

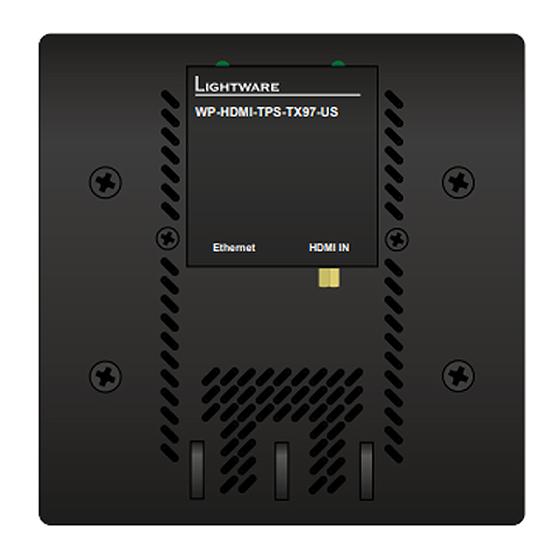

WP-HDMI-TPS-TX97-US
Ethernet HDMI IN

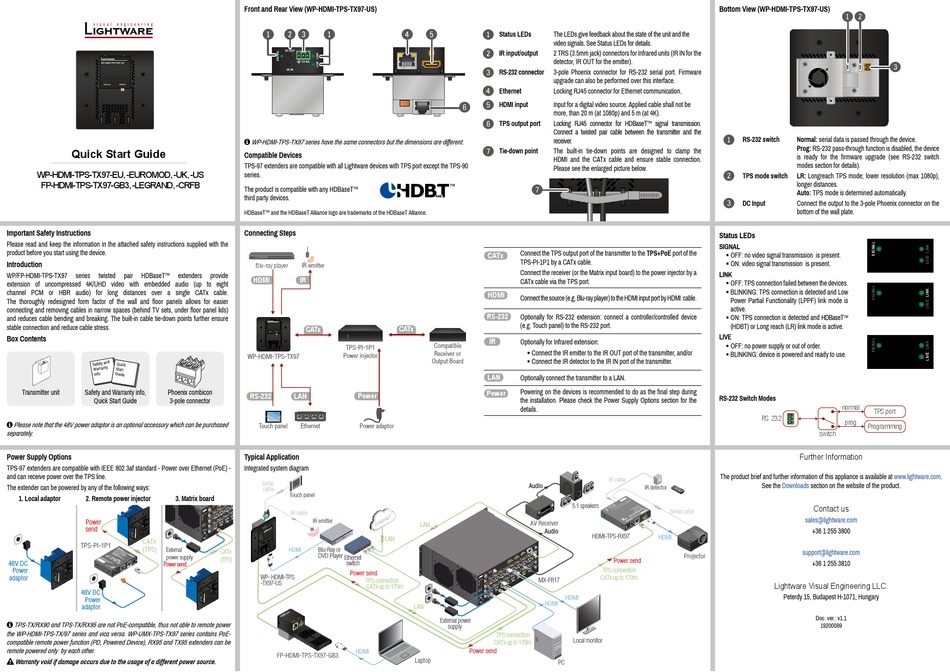

Quick Start Guide

WP-HDMI-TPS-TX97-EU, -EUROMOD, -UK, -US
FP-HDMI-TPS-TX97-GB3, -LEGRAND, -CRFB
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
WP/FP-HDMI-TPS-TX97 series twisted pair HDBaseT extenders
TM
extension of uncompressed 4K/UHD video with embedded audio (up to eight
channel PCM or HBR audio) for long distances over a single CATx cable.
The thoroughly redesigned form factor of the wall and floor panels allows for easier
connecting and removing cables in narrow spaces (behind TV sets, under floor panel lids)
and reduces cable bending and breaking. The built-in cable tie-down points further ensure
stable connection and reduce cable stress.
Box Contents
OUT
HDMI
Transmitter unit Safety and Warranty info, Phoenix combicon
Quick Start Guide 3-pole connector
 Please note that the 48V power adaptor is an optional accessory which can be purchased
separately.
Power Supply Options
TPS-97 extenders are compatible with IEEE 802.3af standard - Power over Ethernet (PoE) -
and can receive power over the TPS line.
The extender can be powered by any of the following ways:
1. Local adaptor 2. Remote power injector 3. Matrix board
Power
send
SIGN
AL
LIVE LINK
CATx
TPS-PI-1P1
(TPS)
External
power supply
48V DC
Power send
Power
SIGN
adaptor AL
LIVE
LINK
48V DC
Power
adaptor
 TPS-TX/RX90 and TPS-TX/RX95 are not PoE-compatible, thus not able to remote power
the WP-HDMI-TPS-TX/97 series and vica versa. WP-UMX-TPS-TX97 series contains PoE-
compatible remote power function (PD, Powered Device), RX95 and TX95 extenders can be
remote powered only by each other.
 Warranty void if damage occurs due to the usage of a different power source.
Front and Rear View (WP-HDMI-TPS-TX97-US)
1 23 1
IR OUT
TX RX
IR IN
 WP-HDMI-TPS-TX97 series have the same connectors but the dimensions are different.
Compatible Devices
TPS-97 extenders are compatible with all Lightware devices with TPS port except the TPS-90
series.
The product is compatible with any HDBaseT
TM
third party devices.
HDBaseT TM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Connecting Steps
IR emitter
Blu-ray player
provide
HDMI IR
WP-HDMI-TPS-TX97-US
CATx
Ethernet HDMI IN
TPS-PI-1P1
Power injector
WP-HDMI-TPS-TX97
Power
RS-232 LAN
Touch panel Ethernet Power adaptor
Typical Application
Integrated system diagram
Serial
cable
Touch panel
IR cable
IR emitter
E T H
US
-TX 97-
MI- TPS
-HD
WP
I IN
HDM
rnet
Ethe
Blu-Ray or
HDMI
CATx
DVD Player
Ethernet
(TPS)
switch
Power send
WP- HDMI-TPS
TPS connection
-TX97-US
CATx up to 170m
SIGN
AL
LIVE
LINK
HDMI
FP-HDMI-TPS-TX97-GB3
4 5 1
Status LEDs The LEDs give feedback about the state of the unit and the
video signals. See Status LEDs for details.
2
IR input/output 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter).
3
RS-232 connector 3-pole Phoenix connector for RS-232 serial port. Firmware
upgrade can also be performed over this interface.
4
Ethernet Locking RJ45 connector for Ethernet communication.
5
HDMI input Input for a digital video source. Applied cable shall not be
6
more, than 20 m (at 1080p) and 5 m (at 4K).
6
TPS output port Locking RJ45 connector for HDBaseT
Connect a twisted pair cable between the transmitter and the
receiver.
7
Tie-down point The built-in tie-down points are designed to clamp the
HDMI and the CATx cable and ensure stable connection.
Please see the enlarged picture below.
7
DVI
Connect the TPS output port of the transmitter to the TPS+PoE port of the
CATx
TPS-PI-1P1 by a CATx cable.
Connect the receiver (or the Matrix input board) to the power injector by a
CATx cable via the TPS port.
HDMI
Connect the source (e.g. Blu-ray player) to the HDMI input port by HDMI cable.
RS-232
Optionally for RS-232 extension: connect a controller/controlled device
(e.g. Touch panel) to the RS-232 port.
CATx
IR
Optionally for Infrared extension:
Compatible
ƒ Connect the IR emitter to the IR OUT port of the transmitter, and/or
Receiver or
Output Board ƒ Connect the IR detector to the IR IN port of the transmitter.
LAN
Optionally connect the transmitter to a LAN.
Power Powering on the devices is recommended to do as the final step during
the installation. Please check the Power Supply Options section for the
details.
Audio
E T
E R N
AV Receiver
LAN
Audio
LAN
MX-FR17
HDMI
LAN
External power
supply
TPS connection
CATx up to 170m
Power send
Laptop
PC
Bottom View (WP-HDMI-TPS-TX97-US)
signal transmission.
TM
1
RS-232 switch
2 TPS mode switch
3
DC Input
Status LEDs
SIGNAL
ƒ OFF: no video signal transmission is present.
ƒ ON: video signal transmission is present.
LINK
ƒ OFF: TPS connection failed between the devices.
ƒ BLINKING: TPS connection is detected and Low
Power Partial Functionality (LPPF) link mode is
active.
ƒ ON: TPS connection is detected and HDBaseT
(HDBT) or Long reach (LR) link mode is active.
LIVE
ƒ OFF: no power supply or out of order.
ƒ BLINKING: device is powered and ready to use.
RS-232 Switch Modes
The product brief and further information of this appliance is available at www.lightware.com.
IR cable
IR detector
5.1 speakers
Serial cable
)
PoE (
IN
TPS
HDMI-TPS-RX97
HDMI
Projector
Power send
TPS connection
CATx up to 170m
HDMI
Local monitor
12
3
Normal: serial data is passed through the device.
Prog: RS-232 pass-through function is disabled, the device
is ready for the firmware upgrade (see RS-232 switch
modes section for details).
LR: Longreach TPS mode; lower resolution (max 1080p),
longer distances.
Auto: TPS mode is determined automatically.
Connect the output to the 3-pole Phoenix connector on the
bottom of the wall plate.
TM
normal
TPS port
RS-232
prog
Programming
switch
Further Information
See the Downloads section on the website of the product.
Contact us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: v1.1
19200089
