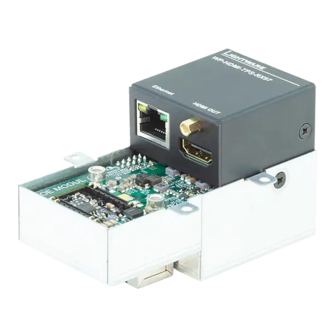

Lightware WP-HDMI-TPS-RX97 Series Quick Start Manual

WP-HDMI-TPS-RX97-US
Ethernet HDMI OUT

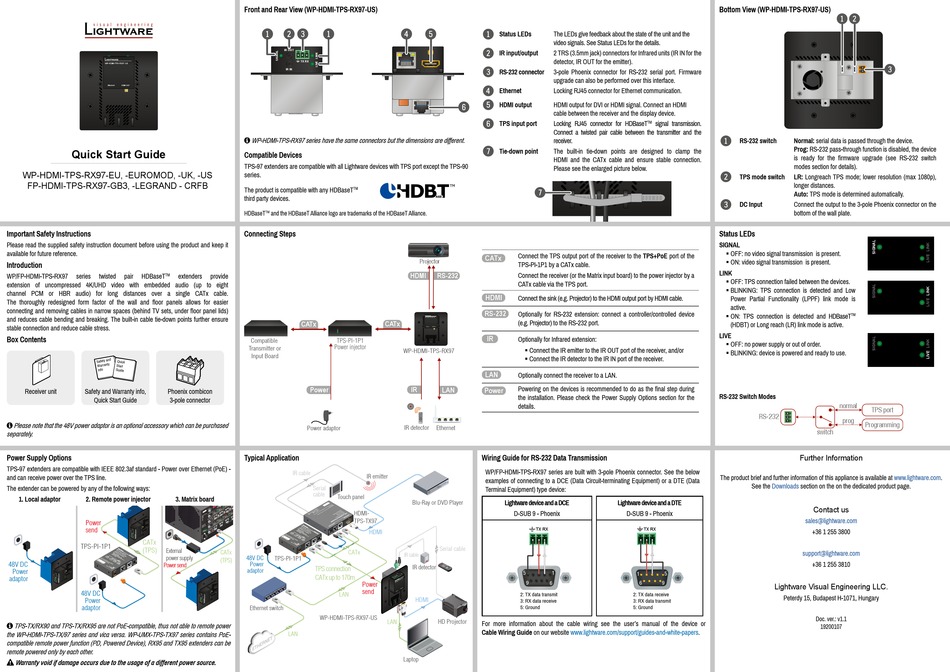

Quick Start Guide
WP-HDMI-TPS-RX97-EU, -EUROMOD, -UK, -US
FP-HDMI-TPS-RX97-GB3, -LEGRAND - CRFB
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
WP/FP-HDMI-TPS-RX97 series twisted pair HDBaseT extenders
TM
extension of uncompressed 4K/UHD video with embedded audio (up to eight
channel PCM or HBR audio) for long distances over a single CATx cable.
The thoroughly redesigned form factor of the wall and floor panels allows for easier
connecting and removing cables in narrow spaces (behind TV sets, under floor panel lids)
and reduces cable bending and breaking. The built-in cable tie-down points further ensure
stable connection and reduce cable stress.
Box Contents
HDMI OUT
Receiver unit Safety and Warranty info, Phoenix combicon
Quick Start Guide 3-pole connector
 Please note that the 48V power adaptor is an optional accessory which can be purchased
separately.
Power Supply Options
TPS-97 extenders are compatible with IEEE 802.3af standard - Power over Ethernet (PoE) -
and can receive power over the TPS line.
The extender can be powered by any of the following ways:
1. Local adaptor 2. Remote power injector 3. Matrix board
Power
send
SIGN
AL
LIVE LINK
CATx
TPS-PI-1P1
(TPS)
External
power supply
48V DC
Power send
Power
SIGN
adaptor AL
LIVE
LINK
48V DC
Power
adaptor
 TPS-TX/RX90 and TPS-TX/RX95 are not PoE-compatible, thus not able to remote power
the WP-HDMI-TPS-TX/97 series and vica versa. WP-UMX-TPS-TX97 series contains PoE-
compatible remote power function (PD, Powered Device), RX95 and TX95 extenders can be
remote powered only by each other.
 Warranty void if damage occurs due to the usage of a different power source.
Front and Rear View (WP-HDMI-TPS-RX97-US)
1 23 1
IR OUT
TX RX
IR IN
 WP-HDMI-TPS-RX97 series have the same connectors but the dimensions are different.
Compatible Devices
TPS-97 extenders are compatible with all Lightware devices with TPS port except the TPS-90
series.
The product is compatible with any HDBaseT
TM
third party devices.
HDBaseT TM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Connecting Steps
provide
CATx
Compatible TPS-PI-1P1
Power injector
Transmitter or
Input Board
Power
Power adaptor
Typical Application
IR cable
IR emitter
Serial
cable
Touch panel
HDMI-
TPS-TX97
PoE ( )
OUT HDMI
TPS
CATx CATx
48V DC
TPS-PI-1P1
(TPS)
Power
TPS connection
adaptor
CATx up to 170m
Power
send
LAN
SIGN
AL
LIVE
LINK
Ethernet switch
WP-HDMI-TPS-RX97-US
LAN
E T
R N
H E
E T
4 5 1
Status LEDs The LEDs give feedback about the state of the unit and the
video signals. See Status LEDs for the details.
2
IR input/output 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter).
3
RS-232 connector 3-pole Phoenix connector for RS-232 serial port. Firmware
upgrade can also be performed over this interface.
4
Ethernet Locking RJ45 connector for Ethernet communication.
5
HDMI output HDMI output for DVI or HDMI signal. Connect an HDMI
6
cable between the receiver and the display device.
6
TPS input port Locking RJ45 connector for HDBaseT
Connect a twisted pair cable between the transmitter and the
receiver.
7
Tie-down point The built-in tie-down points are designed to clamp the
HDMI and the CATx cable and ensure stable connection.
Please see the enlarged picture below.
7
DVI
Connect the TPS output port of the receiver to the TPS+PoE port of the
CATx
Projector
TPS-PI-1P1 by a CATx cable.
HDMI RS-232
Connect the receiver (or the Matrix input board) to the power injector by a
CATx cable via the TPS port.
HDMI
Connect the sink (e.g. Projector) to the HDMI output port by HDMI cable.
RS-232
Optionally for RS-232 extension: connect a controller/controlled device
WP-HDMI-TPS-RX97-US
CATx (e.g. Projector) to the RS-232 port.
Ethernet HDMI OUT
IR
Optionally for Infrared extension:
ƒ Connect the IR emitter to the IR OUT port of the receiver, and/or
WP-HDMI-TPS-RX97
ƒ Connect the IR detector to the IR IN port of the receiver.
LAN
Optionally connect the receiver to a LAN.
IR LAN Powering on the devices is recommended to do as the final step during
Power
the installation. Please check the Power Supply Options section for the
details.
IR detector Ethernet
Wiring Guide for RS-232 Data Transmission
WP/FP-HDMI-TPS-RX97 series are built with 3-pole Phoenix connector. See the below
examples of connecting to a DCE (Data Circuit-terminating Equipment) or a DTE (Data
Terminal Equipment) type device:
Blu-Ray or DVD Player Lightware device and a DCE
D-SUB 9 - Phoenix
TX RX
Serial cable
IR cable
IR detector
5 1
97- US
TPS -RX 9 6
MI-
WP -HD
I OUT
HDM
t
Eth erne 2: TX data transmit
HDMI
3: RX data receive
5: Ground
LAN HD Projector
For more information about the cable wiring see the user's manual of the device or
Cable Wiring Guide on our website www.lightware.com/support/guides-and-white-papers.
Laptop
Bottom View (WP-HDMI-TPS-RX97-US)
TM signal transmission.
1
RS-232 switch Normal: serial data is passed through the device.
Prog: RS-232 pass-through function is disabled, the device
is ready for the firmware upgrade (see RS-232 switch
modes section for details).
2
TPS mode switch LR: Longreach TPS mode; lower resolution (max 1080p),
longer distances.
Auto: TPS mode is determined automatically.
3 DC Input Connect the output to the 3-pole Phoenix connector on the
bottom of the wall plate.
Status LEDs
SIGNAL
ƒ OFF: no video signal transmission is present.
ƒ ON: video signal transmission is present.
LINK
ƒ OFF: TPS connection failed between the devices.
ƒ BLINKING: TPS connection is detected and Low
Power Partial Functionality (LPPF) link mode is
active.
ƒ ON: TPS connection is detected and HDBaseT
(HDBT) or Long reach (LR) link mode is active.
LIVE
ƒ OFF: no power supply or out of order.
ƒ BLINKING: device is powered and ready to use.
RS-232 Switch Modes
RS-232
The product brief and further information of this appliance is available at www.lightware.com.
See the Downloads
Lightware device and a DTE
D-SUB 9 - Phoenix
TX RX
1 5
6 9
Lightware Visual Engineering LLC.
2: TX data receive
Peterdy 15, Budapest H-1071, Hungary
3: RX data transmit
5: Ground
12
3
TM
normal
TPS port
prog
Programming
switch
Further Information
section on the on the dedicated product page.
Contact us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Doc. ver.: v1.1
19200107
