Figure 28 - Terminate Input Wiring Rte - Pir & Push Button - Keyscan CA250B Technical Instructions

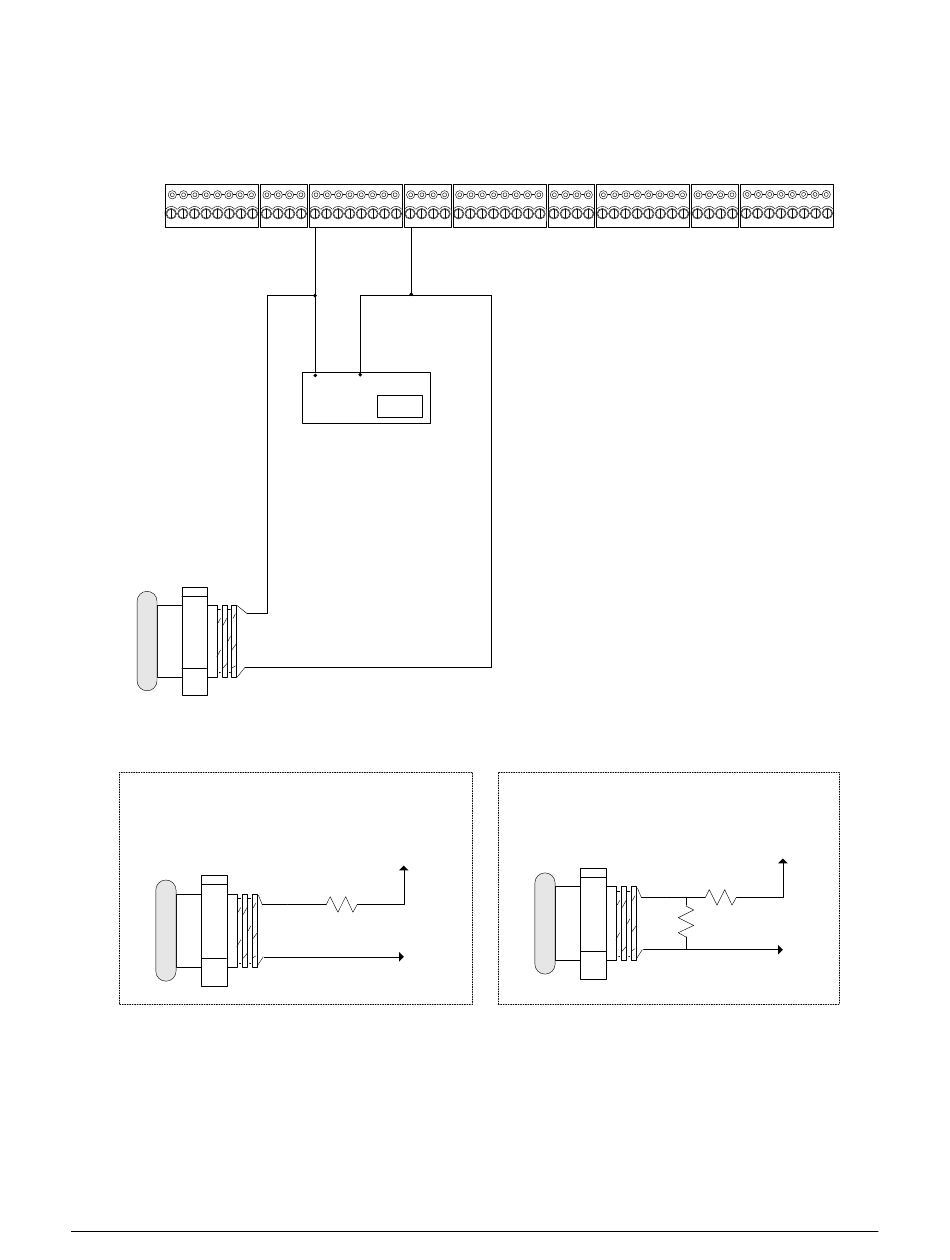

Figure 28 – Terminate Input Wiring RTE - PIR & Push Button
Door Inputs - A Common
1 2 3 4 5 6 7 8
No supervision
RTE
Push Button
NO
NO = Normally Open
COM
Note
If using supervision, it is only required on the device farthest from the ACU
terminal. Example shows supervision on RTE Push Button.
Single end of line supervision
NO
COM
KI-00132E-10-13
Keyscan Inc. – Technical Guide (PC109x - 04.15)
Cut View of CA8500B
RTE Inputs - B Common AUX Inputs - C
1 2 3 4 5 6 7 8 1
COM
NO
Lens
PIR (Request To Exit)
NO = Normally Open
"Two devices wired in
parallel to each other"
to Request
to Exit
1K
to Common Return
Common AUX Inputs - D
2 3 4 5 6 7 8 9 10 11 12 13
PIR
Motion Sensor RTE (Request to Exit) – ½ second
pulse
Determines the amount of time the output relays
will energize when motion is detected.
Notes
Diagram illustrates CA8500B. Connections
also apply to CA250B & CA4500B.
- CA250B – up to 2 Request to Exits
- CA450B – up to 4 Request to Exits
- CA8500B – up to 8 Request to Exits
Supervision level set in Client software:
System VII & Vantage – Site Unit Setup
Aurora – Hardware Setup
Supervision level applied to all door inputs, RTE
inputs, and auxiliary inputs.
Double end of line supervision
NO
COM
Common AUX Inputs - E
14 15 16 17 18 19 20 21 22 23 24
to Request
to Exit
1K
3K
to Common Return
41
