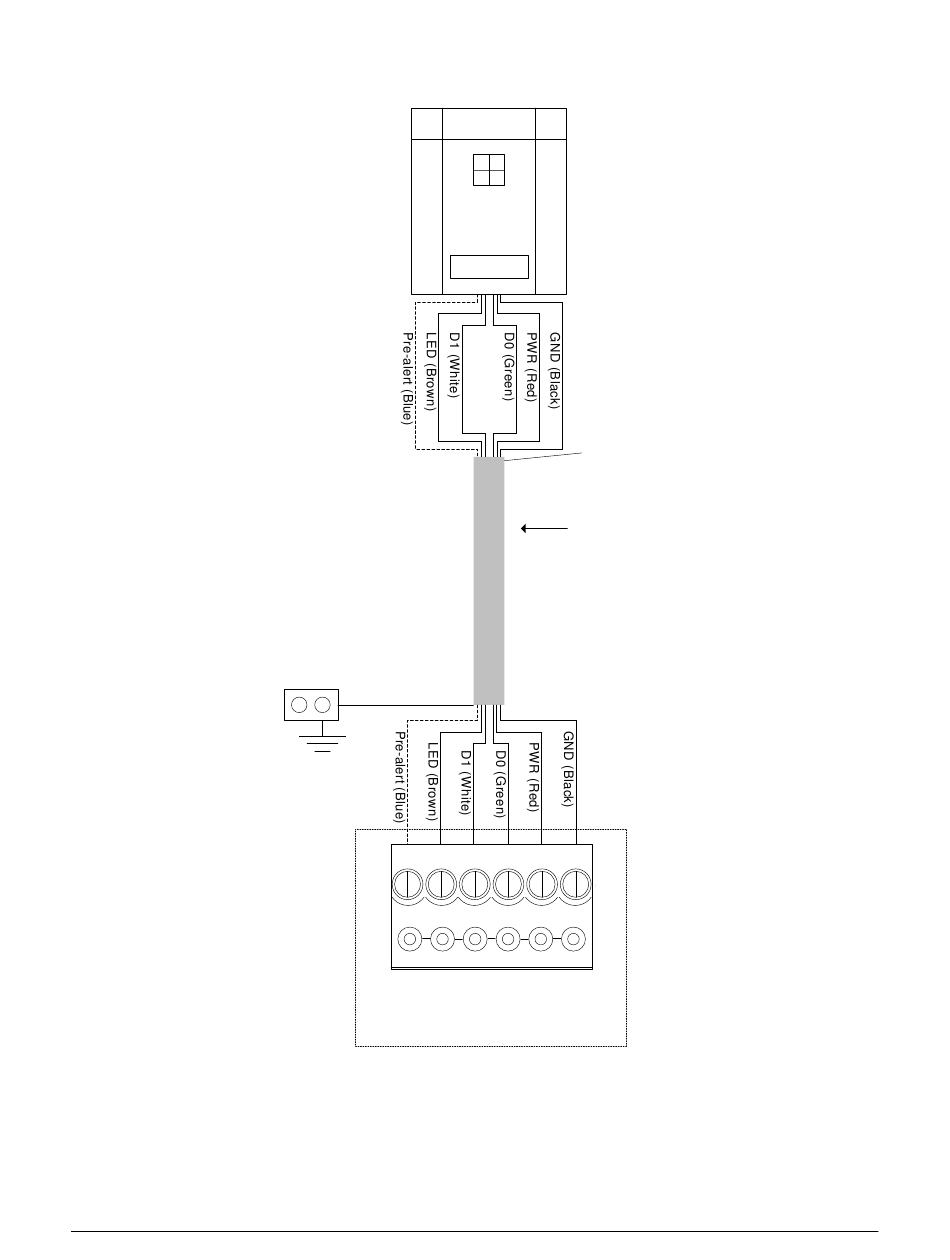

Figure 78 – Indala PX 603 and PX 605 Wiring
Blue (Beeper) used for pre-alert
otherwise isolate and tape
back.
If connecting external sound
device, see Pre-Alert Relay
Option or refer to ACU cut
Shield not connected.
sheet enclosed with panel for
Isolate with electrical tape.
ACU/OCB8 relay assignments.
6 conductors shielded 22 AWG
Maximum - 500 ft (152.4 m)
ACU Ground
Lug
Shield
C1 LED D1 D0 PWR GND
(BEEP) WHT GRN RED BLK
Reader terminal on control board
KI-00210E-07-11
