WIEEX-Tx
Transmitter
H1
Cable connects to
WIEEX transmitter.
KI-00226E-07-11
Keyscan Inc. – Technical Guide (PC109x - 04.15)

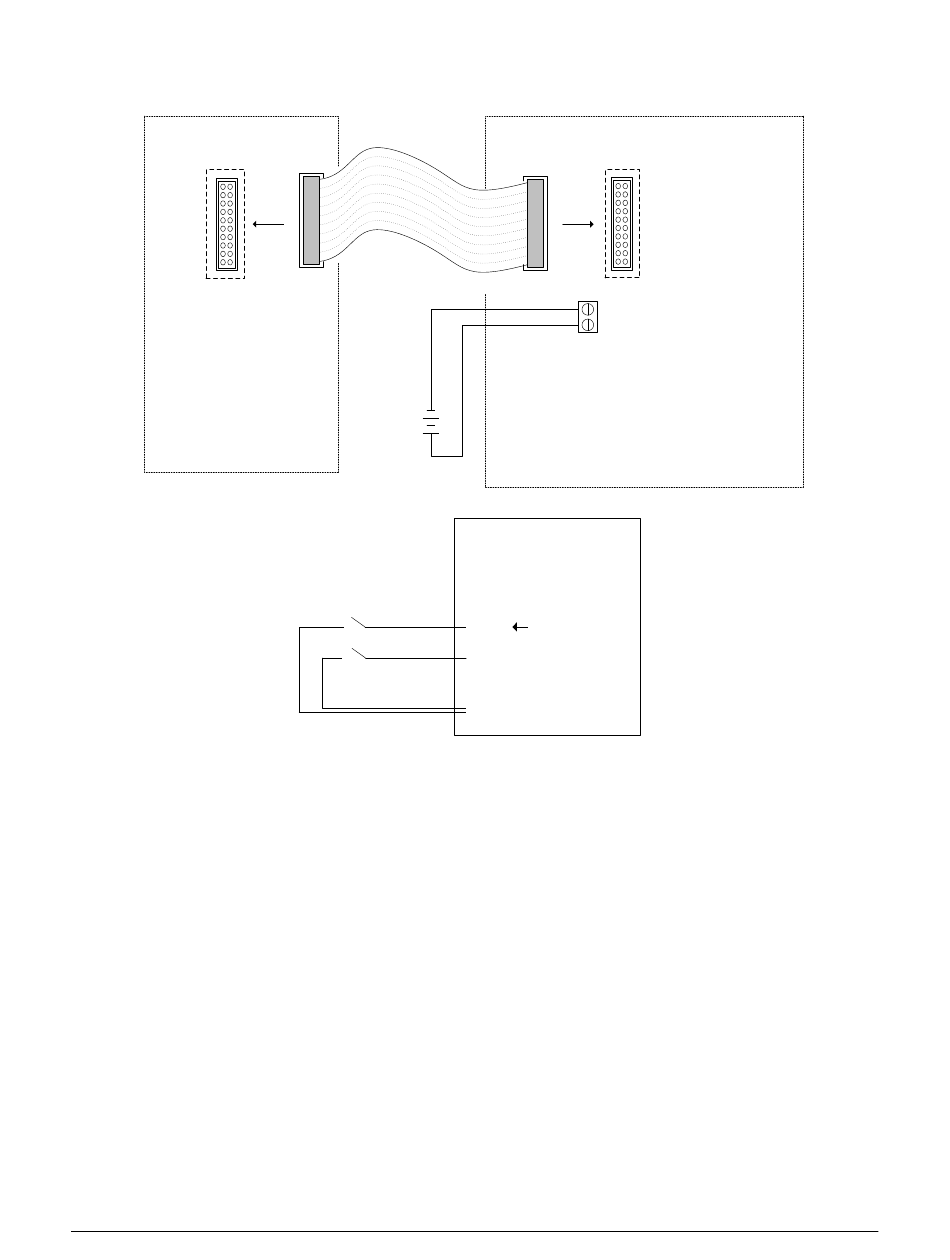

Figure 86 – WIEEX2 to OCB-8 Cable Connection
12VDC
-
Power
+
Supply
OCB-8
H1
-
12V
+
OCB-8
Relay 1 – Follows LED/BRN (used for P3
rd
signalling 3 party devices*
Relay 2 – Follows RB4 (Door Output Relay)
Relay 3 – Follows RB5 input state on Rx receiver
Relay 4 to 8 – Not Used (set jumpers to reversed
state)
* Note on Relay 1 – To
WIEEX-Rx eliminate relay chatter,
Receiver
remove jumper.
Connect to GND
RB5
RB4/RB5 with
switch to change
RB4
OCB-8 relay 2/3
connected on
WIEEX-Tx
GND
124
