Figure 75 - Hid Iclass R15 Series - Keyscan CA250B Technical Instructions

Versions
- KRP15L
- KRP15SE
- R15HGOV
- RP15HGOV
Shield not connected.
Isolate with electrical tape.
Isolate and tape back
unused conductors.
ACU Ground
KI-00509E-10-13
Keyscan Inc. – Technical Guide (PC109x - 04.15)

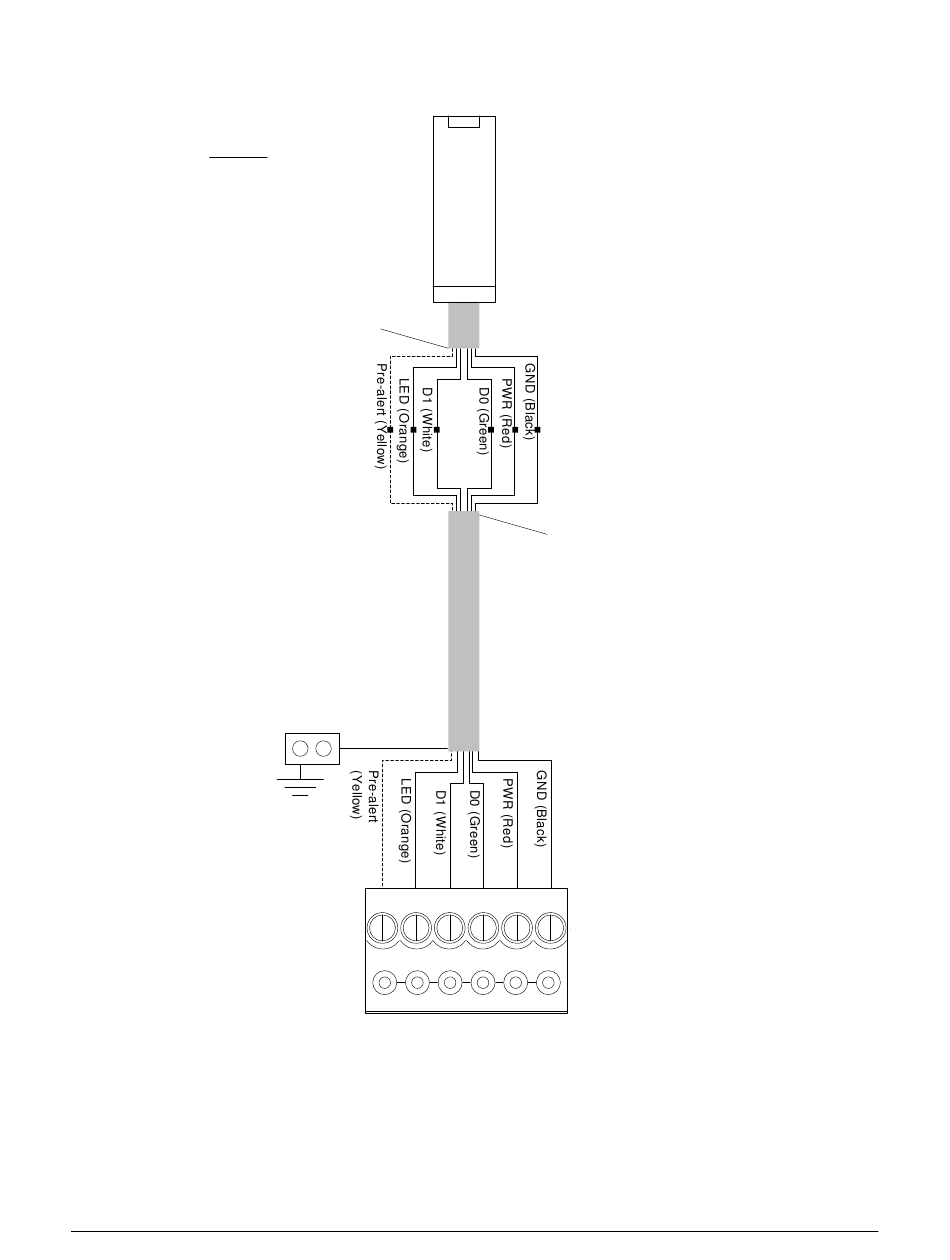

Figure 75 – HID iClass R15 Series
6 conductors
shielded 22 AWG
Maximum - 500 ft
(152.4 m)
Lug
Shield
C1 LED D1 D0
(BEEP) WHT GRN
Reader terminal on control board
Yellow (Beeper) used for pre-
alert otherwise isolate and
tape back.
If connecting external sound
device, see Pre-Alert Relay
Option or refer to ACU cut
sheet enclosed with panel for
ACU/OCB8 relay
assignments.
Note - If Pre-alert is
connected, SE multiclass
reader may not transmit
HID 125 kHz-compatible
card during the pre-alert
beep.
Shield not connected.
Isolate with electrical tape.
PWR GND
RED BLK
109
