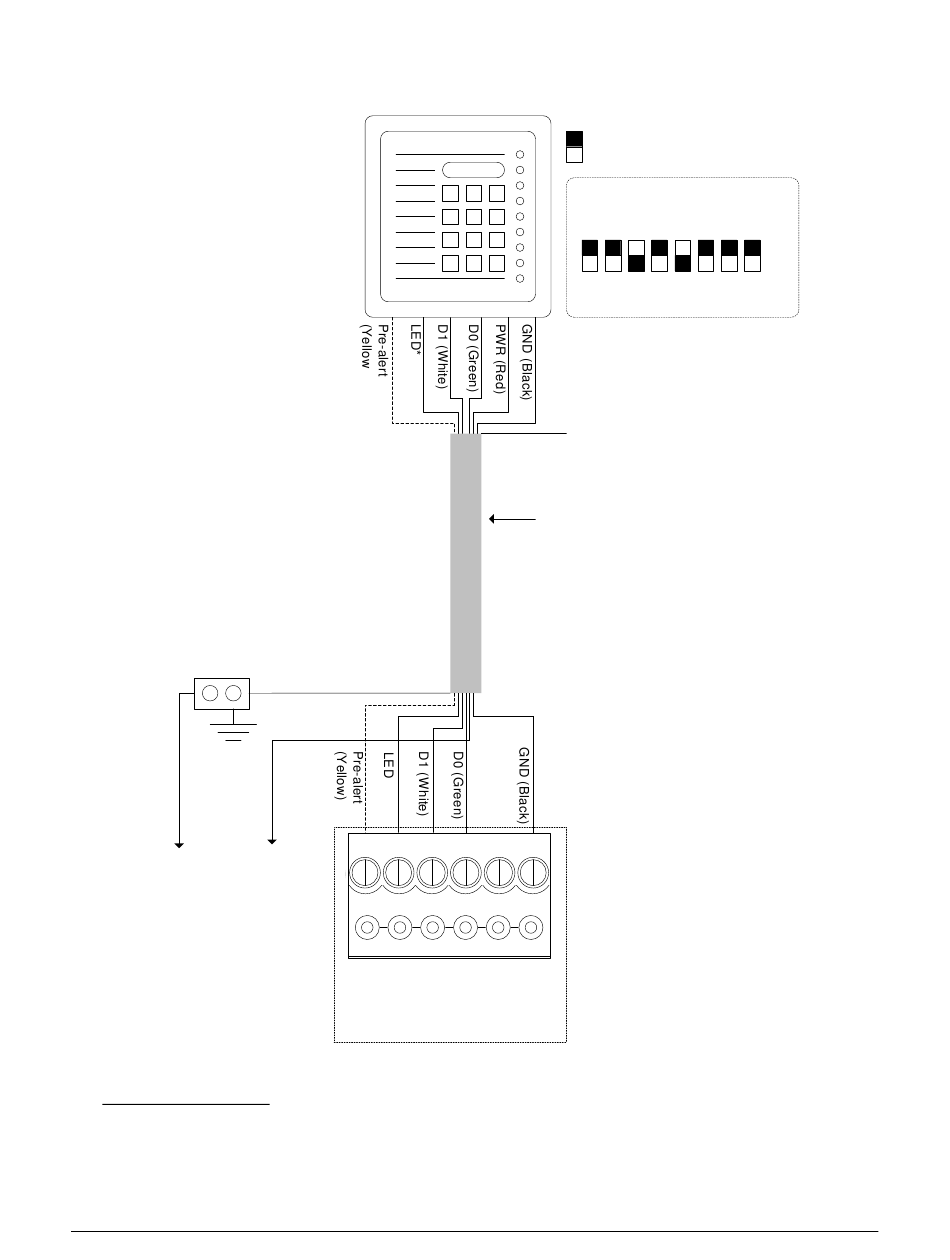

Figure 68 - Hid 5355Kp Wiring - Keyscan CA250B Technical Instructions

* To LED Green
terminal.
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Note - If Pre-alert is connected,
the reader cannot read any
HID 125 kHz-compatible card
during the pre-alert beep.
ACU Ground
Lug
Red
Black
VDC
to
separate
DC power
supply
KI-00205E-07-11
Note on HID 5355 KP
Reader/Keypad/LED ordered as 00 (4 bit burst) example 5355AGK00 (Red/Green colour)
Keyscan Inc. – Technical Guide (PC109x - 04.15)
Figure 68 – HID 5355KP Wiring
1
4
7
*
Shield
+
C1 LED D1 D0
(BEEP) WHT GRN
Reader terminal on control board
Black = position of DIP switch head
2 3 HID-5355KP
5 6
1 2 3
8 9
0 #
Internal reader switches
Shield not
connected.
Isolate with
electrical tape.
6 conductors shielded 22 AWG
Maximum - 500 ft (152.4 m)
PWR GND
RED BLK
SW1
4 5 6 7 8
On
Off
