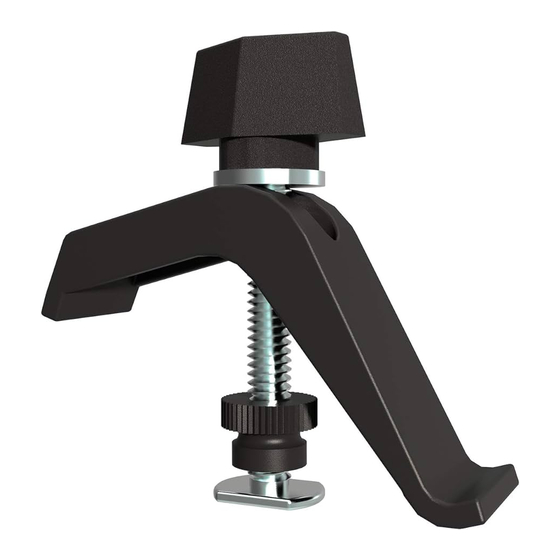

Kreg Track Clamp Owner's Manual

Track Clamp
Owner's Manual
Guide d'utilisation
Manual del propietario
ITEM# KMS7520
Article #KMS7520
Artículo # KMS7520
• Kreg Track Clamps are intended for use with Kreg Accu-Cut™, Combo-Trak, and Mini Trak.
• Read, understand, and follow the safety warnings and operation instructions included
with this product, another Kreg product used in combination with his product, and those provided
by your electric tool manufacturer. Keep all guards and safety devices in place.
• Wear proper eye, ear, and respiratory protection.
• Always disconnect your electric tool from power before making adjustments to the tool or Track Clamps.
Using Track Clamps with the Kreg Accu-Cut
ATTENTION
Position the Track Clamps in the starter-block recess and track T-slot
closest to the edge of the track that will be aligned with the cut.
Using Track Clamp with Other Kreg Traks
WARNING:
known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
• Allow the electric tool to come to a complete stop before making adjustments or removing
• Maintain your tools and accessories. Check for misalignment or binding of moving parts, loose
™
when cutting materials with a slippery surface, when making a cut in a workpiece that is not
flat, and when making a cut using only one track section.
Keep heel on track
www.kregtool.com • 800.447.8638
This product can expose you to chemicals including Carbon 1333-86-4, which are
the workpiece.
fasteners, broken parts, and any other condition that may affect safe operation. If an unsafe
condition is discovered, correct it before use.
ATTENTION
Secure the Accu-Cut™ track to the workpiece with Track Clamps
Mounting a Track Clamp on a jig or fixture
Drill Hole
ø " [ 6.5 mm ]
⁄
1
4
Counterbore
ø " [ 16 mm ]
⁄
5
8
NK9020
Version 2 - 5/2018
