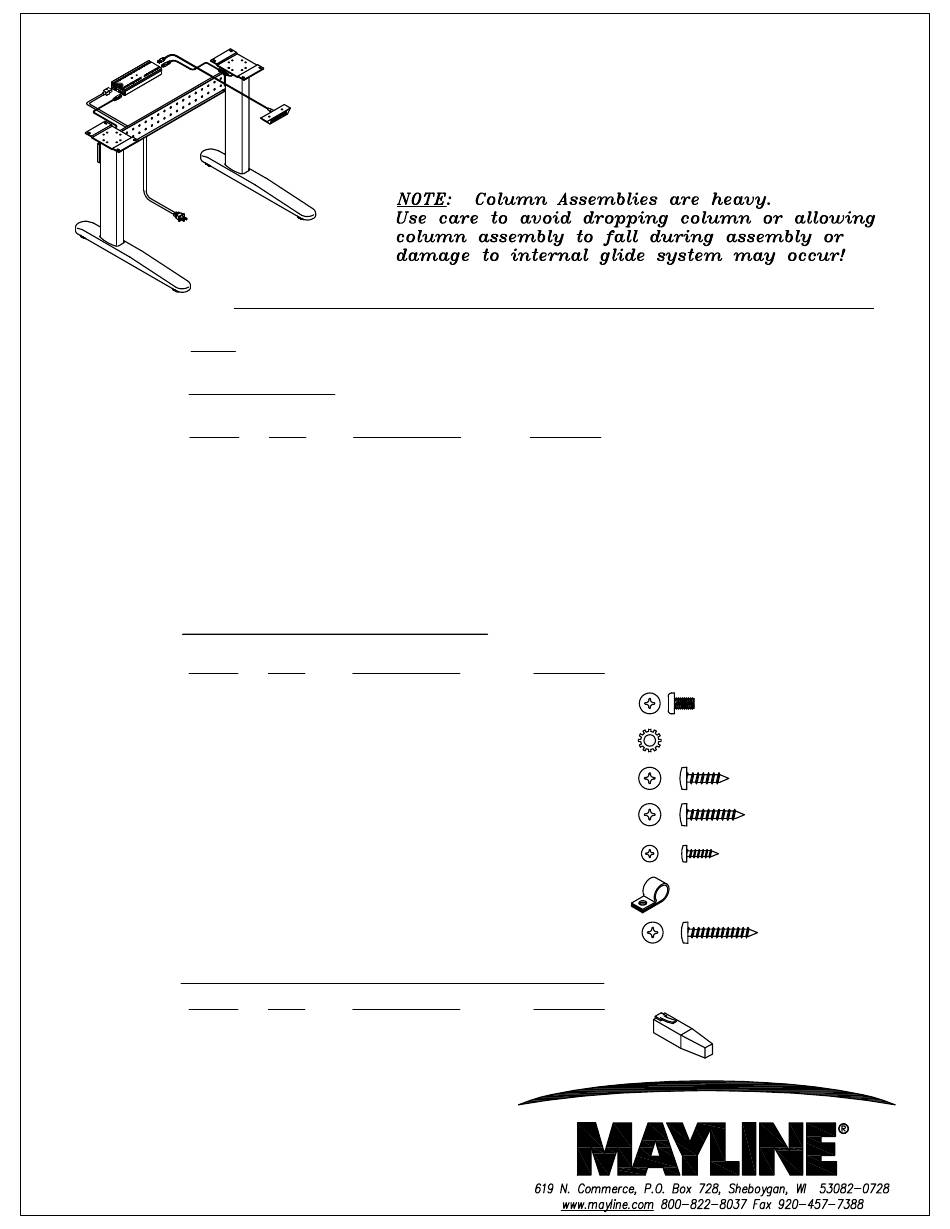

NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
REF. #
1
2
3
4
5
6
7
8
HARDWARE BAG (PART No. A7311) *For individual item, order by part number
REF. #
E1
E2
E3
E4
E5
E6
E7
OPTIONAL HARDWARE BAG (PART No. A8241)
REF. #
9
I549
REV. 09
6-2016
ASSEMBLY INSTRUCTIONS
for DUAL COLUMN XR BASE
When ordering components, specific size information may be required.
Contact a Mayline Customer Service Representative.
QTY.
DESCRIPTION
2
LIFT ACTUATOR
2
XR FOOT
1
CHANNEL CROSS
2
TOP PLATE
1
CONTROL BOX, 2 LEG
1
MEMORY SWITCH
1
MAIN CABLE
2
39.37 MOTOR CABLE
QTY.
DESCRIPTION
16
M6 x 16mm SCREW
16
STAR WASHER
3
#10 x 3/4 SCREW
8
#10 x 1" SCREW
2
#6 x 5/8 SCREW
3
CABLE CLAMP
2
#8 x 1 3/4" SCREW
QTY.
DESCRIPTION
1
Anti-Collision Dongle
PART No.
Z460
A7310 (26") A7792 (23")
CALL~~
B6969
Z537
Z463
Z467
Z464
PART No.
X419
W29
X11
X12
X10
F191
X533
PART No.
Z498*
(1)
1-800-822-8037
~~Denotes Size
