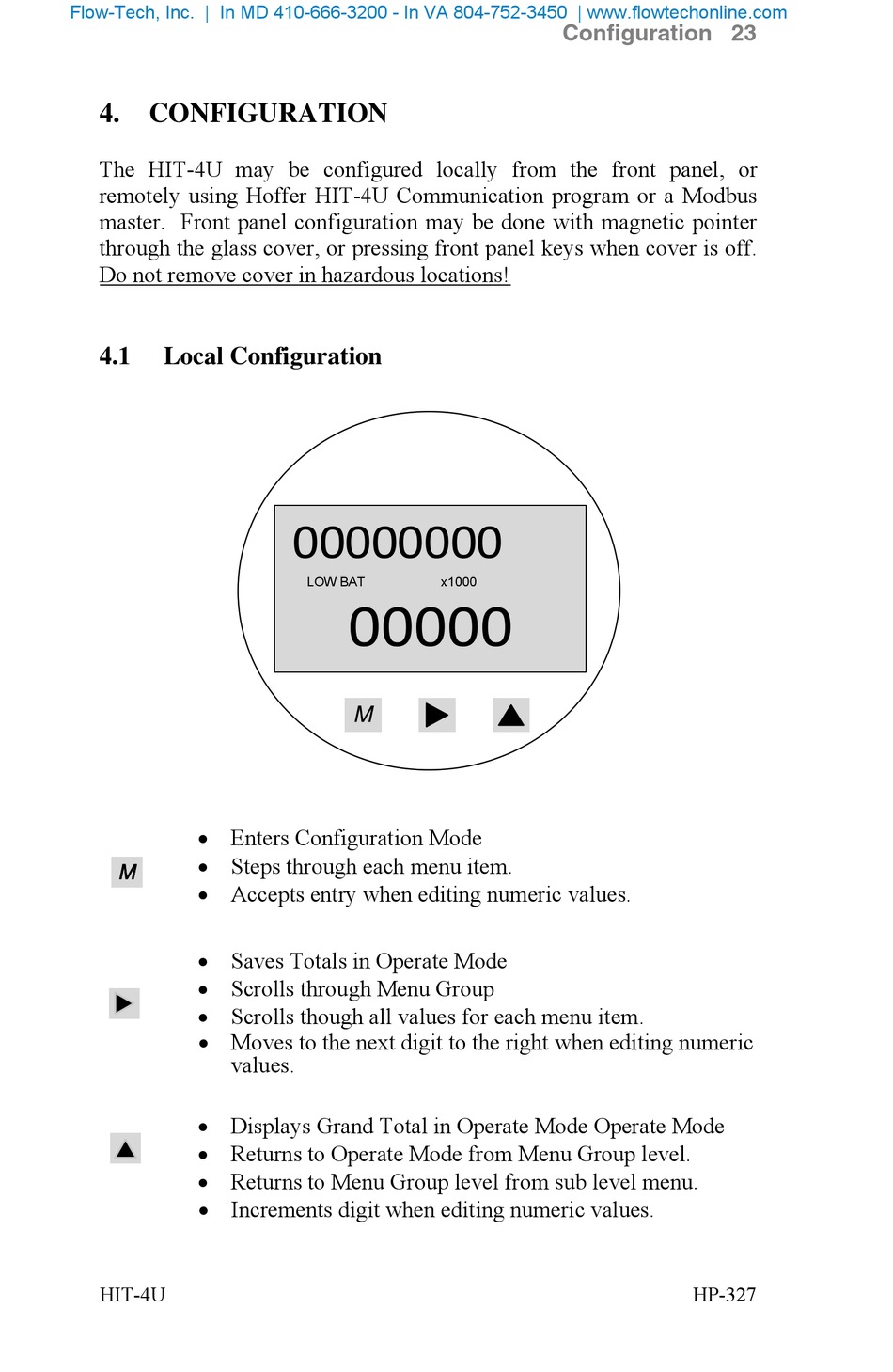

4. CONFIGURATION

The HIT-4U may be configured locally from the front panel, or
remotely using Hoffer HIT-4U Communication program or a Modbus
master. Front panel configuration may be done with magnetic pointer
through the glass cover, or pressing front panel keys when cover is off.
Do not remove cover in hazardous locations!
4.1

Local Configuration

 Enters Configuration Mode
 Steps through each menu item.
M
 Accepts entry when editing numeric values.
 Saves Totals in Operate Mode
 Scrolls through Menu Group
 Scrolls though all values for each menu item.
 Moves to the next digit to the right when editing numeric
 Displays Grand Total in Operate Mode Operate Mode
 Returns to Operate Mode from Menu Group level.
 Returns to Menu Group level from sub level menu.
 Increments digit when editing numeric values.
HIT-4U
00000000
LOW BAT
00000
M
values.
Configuration 23
x1000
HP-327
