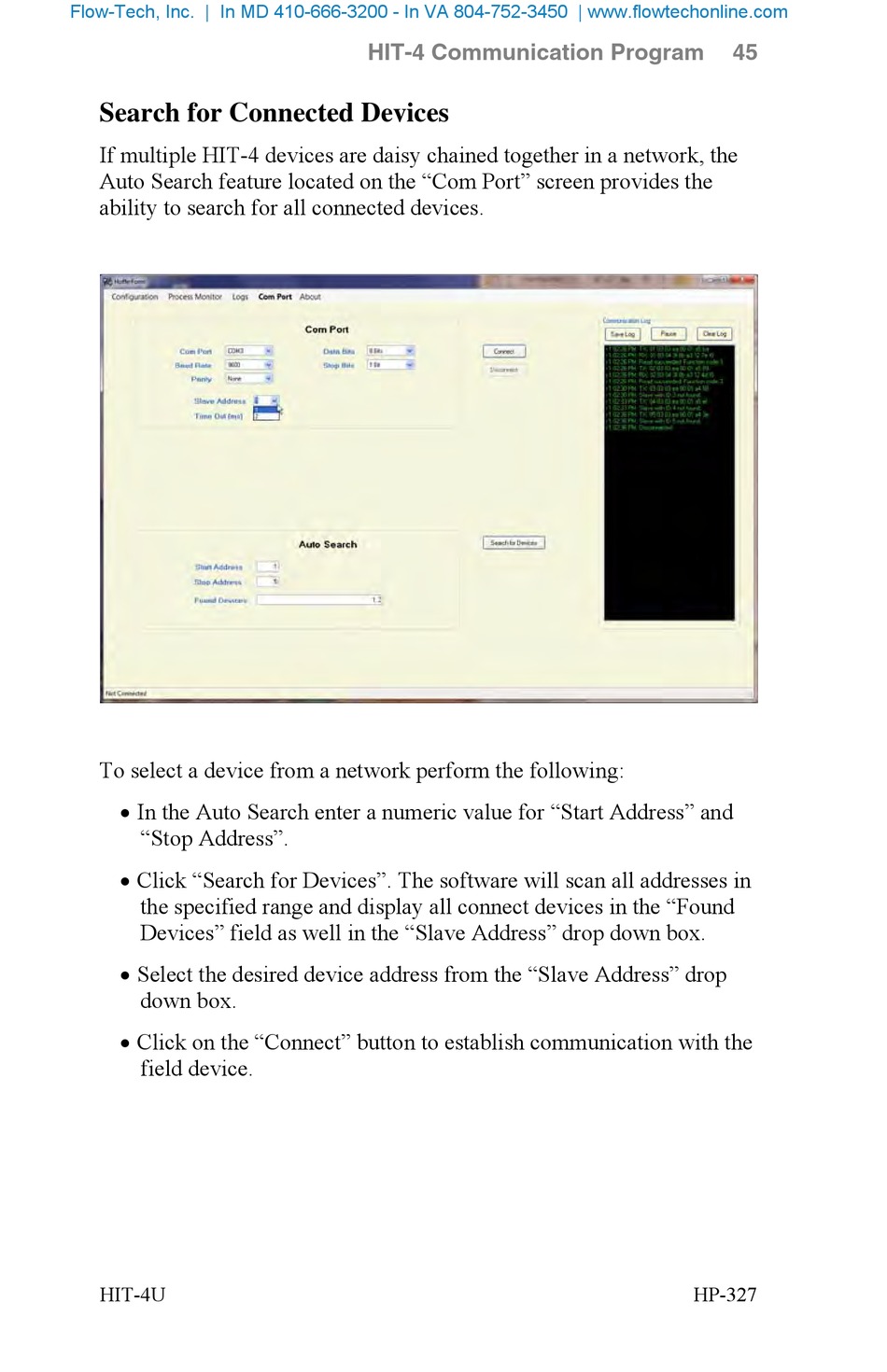

Search for Connected Devices
If multiple HIT-4 devices are daisy chained together in a network, the
Auto Search feature located on the "Com Port" screen provides the
ability to search for all connected devices.
To select a device from a network perform the following:
 In the Auto Search enter a numeric value for "Start Address" and
"Stop Address".
 Click "Search for Devices". The software will scan all addresses in
the specified range and display all connect devices in the "Found
Devices" field as well in the "Slave Address" drop down box.
 Select the desired device address from the "Slave Address" drop
down box.
 Click on the "Connect" button to establish communication with the
field device.
