010COV.book Page 1 Wednesday, November 1, 2017 4:28 PM

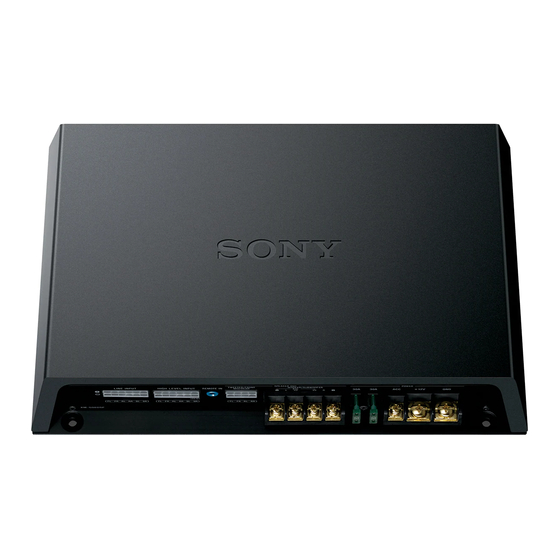

6/5 Channel
Class-D Amplifier
with DSP
Owner's Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. XM-GS6DSP
Serial No.
XM-GS6DSP
masterpage: Cover
4-733-364-11(1)
Operating Instructions
Mode d'emploi
Manual de instrucciones
XM-GS6DSP
4-733-364-11(1)
GB
FR
ES
TH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sony XM-GS6DSP
Summary of Contents for Sony XM-GS6DSP
- Page 1 Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. XM-GS6DSP Serial No.
-
Page 2: Warning
Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. XM-GS6DSP 4-733-364-11(1) - Page 3 XMGS6DSPUC\020INT.fm 010COV.book Page 3 Wednesday, November 1, 2017 4:27 PM Important notice Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO...
-
Page 4: Table Of Contents
Table of Contents Sony 5-speaker system with 4.1ch DSP connection Warning ........2 supported. -
Page 5: Operation
RESET button Resets the unit to the factory defaults (the DSP settings and BLUETOOTH pairing information stored on the unit are also erased). Press with a pointed object such as a ballpoint pen. XM-GS6DSP 4-733-364-11(1) -
Page 6: Installation And Connections
HIGH LEVEL INPUT connector REMOTE IN jack For a wired remote control (not supplied) SPEAKER OUT section: TWEETER/FRONT/MID/REAR connector WOOFER/SUBWOOFER terminals POWER section: Fuse (30 A) ACC (accessary) terminal +12V terminal GND (ground (earth)) terminal XM-GS6DSP 4-733-364-11(1) -
Page 7: Installation
Note When you tighten a screw, be careful not to apply too much torque as doing so may damage the screw (the torque value should be less than 1 N•m). XM-GS6DSP 4-733-364-11(1) -
Page 8: Power Connections
* Ground (earth) to chassis. +12 V and GND terminals of this unit are at least 8-Gauge (AWG-8) or have a sectional area of more than 8 mm² ( in²). XM-GS6DSP 4-733-364-11(1) -
Page 9: Remote Connections
Connect the ACC terminal to the ACC power line, and connect the remote input (REM) terminal to the ACC power line via the high level input connector (sky blue lead ). to the car’s ACC power line Sky blue XM-GS6DSP 4-733-364-11(1) -
Page 10: Input Connections
Select “2ch/BT” or “6ch” mode depending on the *3 The sound settings of the DSP (page 17) can be made use/non-use of the DSP. by the “Sony | Music Center” application on the When selecting the “2ch/BT” mode, also select the iPhone/Android smartphone. Before setting, sensitivity “2V”... - Page 11 SUB AUDIO IN of this unit does not support stereo the “6ch” position. signal input. * Use an RCA splitter cable (not supplied) to branch the signals from REAR AUDIO OUT to REAR AUDIO IN and SUB AUDIO IN. XM-GS6DSP 4-733-364-11(1)
- Page 12 Brown Subwoofer Sky blue output Brown/(black) striped Brown/(blue) striped Note If subwoofer outputs are not equipped to your car audio unit, use this unit as a 4ch amplifier, or make the connection in 2ch mode () instead. XM-GS6DSP 4-733-364-11(1)
- Page 13 FR Front speaker (right) Gray/striped Green RL Rear speaker (left) Green/striped Purple RR Rear speaker (right) Purple/striped Brown SL Subwoofer (left) Brown/(black) striped Sky blue SR Subwoofer (right) Brown/(blue) striped XM-GS6DSP 4-733-364-11(1)
-
Page 14: Speaker Connections
When adjusting the volume balance of the front speakers, rear speakers and subwoofer while the unit is in 2ch mode (DSP mode), operate your iPhone/ Android smartphone to adjust the [Fader], [Balance] and [Subwoofer Level] settings of the “Sony | Music Center” application. XM-GS6DSP 4-733-364-11(1) -
Page 15: Bluetooth
010COV.book Page 15 Wednesday, November 1, 2017 4:27 PM 3-way speaker system With the input connection (page 11) BLUETOOTH Using Sony 3 Way Component Speaker System XS-GS1631C is recommended. Preparing a BLUETOOTH Device Tweeter (min. 4 Ω) You can enjoy music on a BLUETOOTH compatible device such an iPhone/Android smartphone Midrange speaker (min. -
Page 16: Connecting With A Paired Bluetooth Device
To disconnect the paired device To switch to the line input connection (in 2ch Perform step 2. mode) Select [Audio In] on the “Sony | Music Center” Connecting with a paired BLUETOOTH application. device To turn off the BLUETOOTH functions Press and hold PAIRING for 7 seconds. -
Page 17: Settings
Operate your iPhone/Android driving. smartphone to activate the “Sony | “Sony | Music Center” is an app for controlling Sony Music Center” application, then touch audio devices which are compatible with “Sony | Music Center”, by your iPhone/Android smartphone. -
Page 18: Additional Information
– dust or dirt. [Custom] (position set by “Advanced car audio If your car is parked in direct sunlight and there is setting” of “Sony | Music Center”) a considerable rise in temperature inside the car, [OFF] (no position set) allow the unit to cool down before use. -
Page 19: About Ipod
Please note that the use of this accessory with iPod or iPhone may affect wireless performance. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. XM-GS6DSP 4-733-364-11(1) -
Page 20: Specifications
WOOFER/SUBWOOFER terminals Speaker impedance: 4 Ω – 8 Ω (Speaker output connector), 2 Ω – 8 Ω (WOOFER/SUBWOOFER terminals) 295 mm (11 248 mm (9 184.8 mm (7 199.5 mm (7 51 mm (2 XM-GS6DSP 4-733-364-11(1) -
Page 21: Copyrights
Check the battery voltage (10.5 V – 16 V). trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are The POWER/PROTECTOR indicator flashes those of their respective owners. - Page 22 Application name does not match the actual is low (high). application in “Sony | Music Center”. Volume level will differ depending on the Launch the application again from the “Sony | BLUETOOTH device. Music Center” application. – Adjust the volume of the connected BLUETOOTH device or this unit.
-
Page 23: Support Site
010COV.book Page 23 Wednesday, November 1, 2017 4:27 PM Support Site If you have any questions or for the latest support information on this product, please visit the website below: Customers in the United States/Canada: http://esupport.sony.com/ Customers in Asia Pacific/Middle East: http://www.sony-asia.com/section/support http://www.sony-asia.com/caraudio/ XM-GS6DSP 4-733-364-11(1)
