XM-GS100

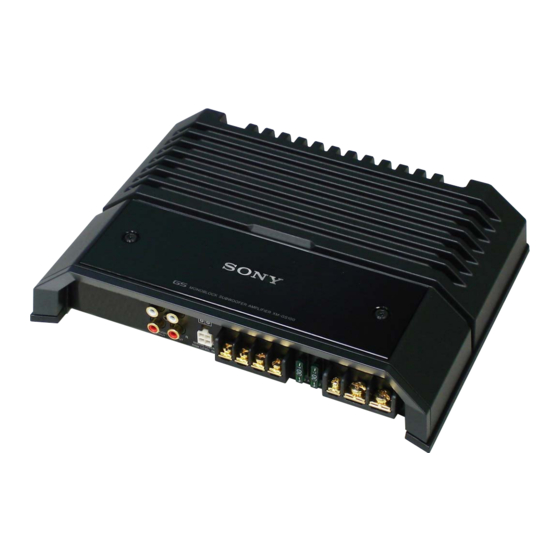

The Sony® GS-100 Class-D subwoofer amplifier affords incredible
installation flexibility thanks to its compact size and packs quite a punch.
GS series amplifiers offer tremendous value including convenience
features such as: modern cosmetics, variable cross-overs and singe-side
electrical connections to suit almost any application.
Bullets
• Compact chassis size
• 330W x 1 RMS at 4 Ohms
• 600W x 1 max power at 4 Ohm
• 600W x 1 RMS at 2 Ohms
• 1100W x 1 max power at 2 Ohm
• Dynamic Distortion Suppression
• Active Thermal Control
• High Level Input with Sensing Power On
• Variable LPF
• Subsonic Filter
• Bass Boost
• 3 year warranty
Features
Amp Design
The XM-GS100's efficient Class-D mono block design, compact chassis size and single sided
connections provide multiple mounting options while maximizing output and control for your
audio system.
4 Ohm Power Output
The XM-GS100 delivers 330 watts RMS power at 4 ohm with 14.4 volts, from 20 Hz - 200 Hz with less
than 1% THD+N. This unit has a maximum output power of 600 mono at 4 ohm.
2 Ohm Power Output
The XM-G100 delivers 600 watts RMS power at 2 ohm with 14.4 volts, at 50 Hz with less than 1%
THD+N. This unit has a mximum output power of 1100 watts mono at 2 ohm.
Built-in Crossovers
The XM-GS100 has a removable top panel that conceals a variable 12 dB/oct LPF (Low-Pass
filter) at 50-300Hz as well as a 12 dB/octave sub-sonic HPF (High-Pass filter), variable at 6-70Hz
to maximize your systems potential. This amplifier also offers a variable 0-10 dB 40 Hz bass boost
circuit to increase low frequency response.
Input Flexibilty
As well as traditional RCA inputs, the XM-GS100 offers direct connections (High Level Input) to
the speaker output of your car audio unit if it is not equipped with RCA line outputs. The auto
sensing, high level input feature also allows the amplifier to be powered up without the need for
remote power turn on connections.
Protection Circuitry
The Active Thermal Control regulates the units operating temperature for stable, long-term
playback at high volume levels. Dynamic Distortion Suppressor reduces distortion that occurs at
higher playback levels for clear bass reproduction.
Warranty
The XM-GS100 includes a 3 year warranty.
1
GS sereis Class-D Subwoofer Amplifier
