User manual M2
Profibus DP

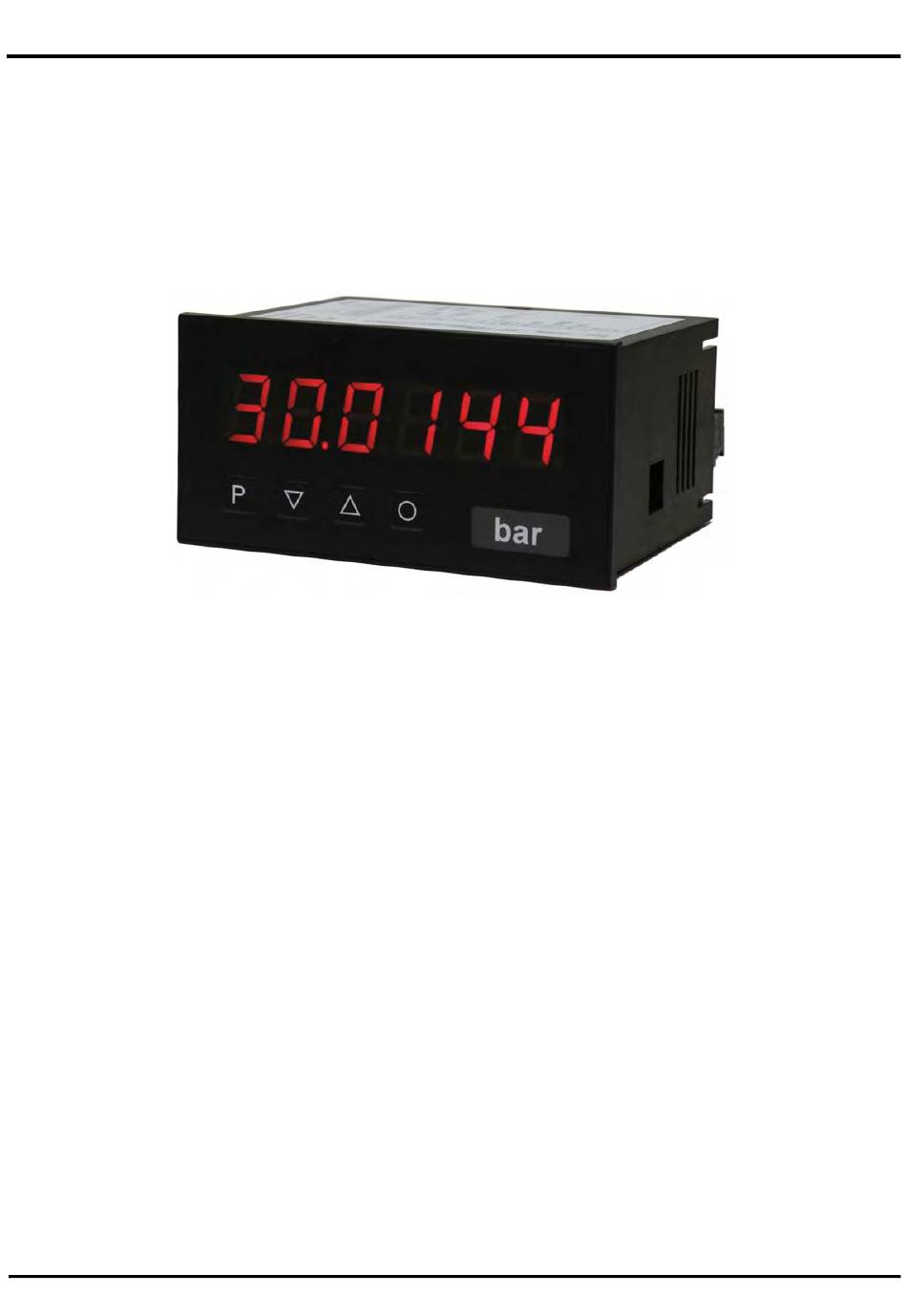

Technical features:
• 6-digit red display (optional: green, orange, blue)
• minimal installation depth: 70 mm excluding plug-in terminal
• programming interlock via access code
• protection class IP65 (front side)
• plug-in terminal
M2_1B9GB.pdf updated: 08.03.2012
96x48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Related Manuals for DayTronic M2

Summary of Contents for DayTronic M2

  • Page 1 User manual M2 Profibus DP Technical features: • 6-digit red display (optional: green, orange, blue) • minimal installation depth: 70 mm excluding plug-in terminal • programming interlock via access code • protection class IP65 (front side) • plug-in terminal M2_1B9GB.pdf updated: 08.03.2012...
  • Page 2 Identification STANDARD TYPES ORDER NUMBER Profibus M2-1BR6B.9000.570BD Housing size: 96x48 mm M2-1BR6B.9000.670BD Options – breakdown order code: M 2- 1 B R 6 B. 9 0 0 0. 6 7 0 B D Standard type M-Line Dimension D physical unit Installation depth 89 mm incl.

  • Page 3: Table Of Contents

    Contents Assembly Electrical connection Function and operation description Setting up the device 4.1. Switching on 4.2. Parametrisation Operating modes 5.1. Operating mode 1 5.2. Operating mode 2 5.3. Operating mode 3 5.4. Operating mode 4 5.5. Operating mode 5 5.6. Explanations to panel parameters 5.7.

  • Page 4: Assembly

    1. Assembly 1. Assembly Please read the Safety advice on page 15 before installation and keep this user manual for future reference. Gap for physical unit After removing the fixing elements, insert the device. Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand.

  • Page 5: Electrical Connection

    2. Electrical connectio 2. Electrical connection Connection example: Profibus arranges the devices in sequence. An allocation in form of a star is not acceptable! Both ends of the data line require a termination. One in the triggering included termination needs to be activated. The maximum allowable length of the data line depends on the baudrate an is 1000 m.

  • Page 6: Function And Operation Description

    3. Function and operation description 3. Function and operation description Operation The device is triggered via Profibus and shows numerics and signs in a 6-digit 7-segment display. Thereby the communication can be triggered via a Bus master. The display recognizes automatically the used Baudrate with a Bus master and needs as single information the Profibus address, which can be parametrised via the keypad of the display.

  • Page 7: Setting Up The Device

    4. Setting up the device 4. Setting up the device 4.1. Switching-on Once the installation is complete, you can start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.

  • Page 8: Parametrisation

    4. Setting up the device Menu level Parameterisation level Administrator code / Master code (4-digit number-combination free available), A.Co: With this code all parameters can be re-activated, after LOC has been activated under menu item run before. By pushing [P] in operation mode for approx. 3 seconds, CodE occurs in the display and enables the user to reach all parameters by entering the A.co.

  • Page 9: Operating Modes

    5. Operating modes 5. Operating modes The Profibus displays support 5 different operating modes, as given below. 5.1. Operating mode 1 Display of 16 bit signed integer values (-32768…32767). Configuration values Byte-No. Characteristic Description Function 2 Bytes output data Display value „signed integer“ 0x21 Output data Byte-No.

  • Page 10: Operating Mode

    5. Operating modes 5.3. Operating mode 3 Display value of 32 bit signed integer values (-4.294.967.296…4.294.967.295). Configuration data Byte-No. Characteristics Description Function 4 Bytes output data Display value „signed long integer“ 0x23 Output data Byte-No. Function Display value High-Word, High-Byte Display value High-Word, Low-Byte Display value Low-Word, High-Byte Display value Low-Word, Low-Byte...

  • Page 11: Operating Mode

    5. Operating modes 5.5. Operating mode 5 Direct display triggering with brightness control. Configuration data Byte-No. Characteristics Description Function 2 Bytes output data Panel parameter (see explanations 5.6) 0x21 1 Byte output data Mode (see explanations 5.8) 0x20 8 Bytes output data Direct display 0x27 Output data...

  • Page 12: Explanations To Panel Parameters

    5. Operating modes 5.6. Explanations to panel parameters Byte-Nr. Function 00 equates 100 % brightness 0-1* 01 equates 75% brightness 10 equates 50% brightness 11 equates 25 % brightness Reserved Flashing at 1.digit (left/ display digit with highest value at 8-digit displays) Flashing at 2.digit Flashing at 3.digit Flashing at 4.digit...

  • Page 13: Explanations To The Mode

    5. Operation types 5.8. Explanations of the mode Byte-No. Function 00000000 Display via ASCII table (see 5.8.1) 00000001 Direct triggering of the segments (see 5.8.2) 00000010 Reserved … 00000100 Reserved Display Display test 5.8.1. Mode 0 ASCII table: At all empty fields a space is displayed. 5.8.2.

  • Page 14: Error Indications

    6. Error indications 6. Error indications The display controls several possibilites of errors and shows them if required in the display. Overflow behavior If a process value (Integer value) is transfered, that exceeds the display range of the display, then the display shows a fast flashing display with the incorrect value, this means the available significant digits.

  • Page 15: Factory Settings

    7. Factory settings 7. Factory settings 7.1. Synoptical table of default values Parametrisation Parameter Menu items Default value Device address Display of decimal point Display 100% 100% brightness Master code Standard Parameter lock Standard operation operation 7.2. Reset to factory settings (default values) To return the unit to a defined basic state, a reset can be carried out to the default values.

  • Page 16: Technical Data

    8. Technical data 8. Technical data Housing 96x48x70 mm (BxHxD) Dimensions 96x48x89 mm (BxHxD) incl. plug-in terminal +0.8 +0.6 Panel cut-out 92.0 x 45.0 Wall thickness up to 15 mm Fixing Screw elements Material PC Polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class Standard IP65 (Front), IP00 (Back)

  • Page 17: Safety Advice

    Please inform the supplier immediately of any damage. Installation The M2-device must be installed by a suitably qualified specialist (e.g. with a qualification in industrial electronics). Notes on installation •...
  • Page 20 M2_1B9GB.pdf Stand: 08.03.2012...
