Mocka Luna Assembly Instructions

Mocka Luna Storage Seat
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B
10x 10x
bolt locking nut
H
E G
1x 2x 2x
seat screw ring

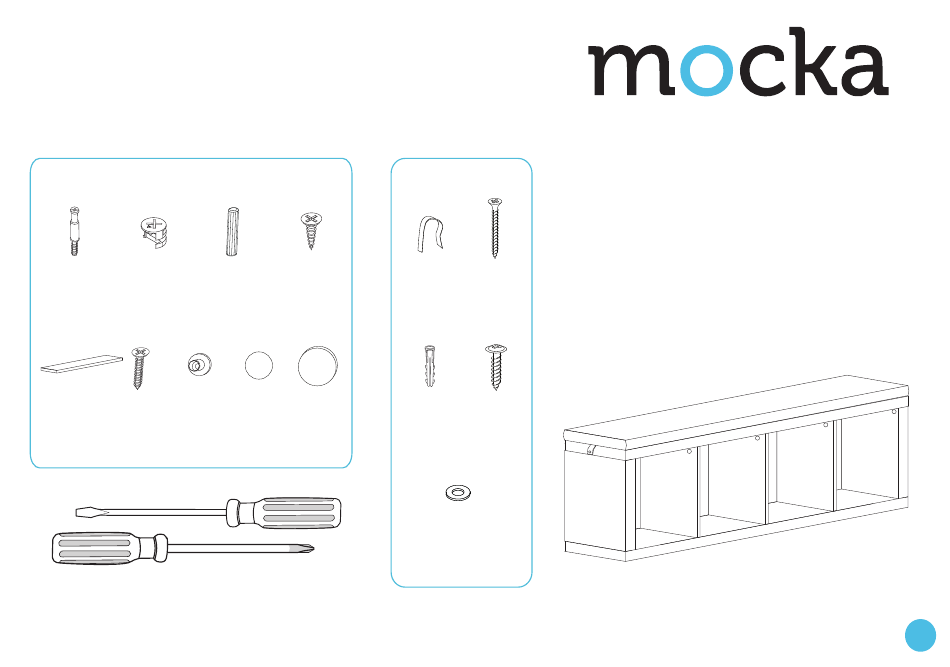

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C D
20x 10x
dowel screw
I J
10x 4x
cover felt pads
WARNING:
potential to tip over in certain circumstances, i.e. if a child attempts
W
to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
1x safety 1x wall
strap screw
Y
X
1x
1x wall
screw
anchor
Z
1x
washer
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the
