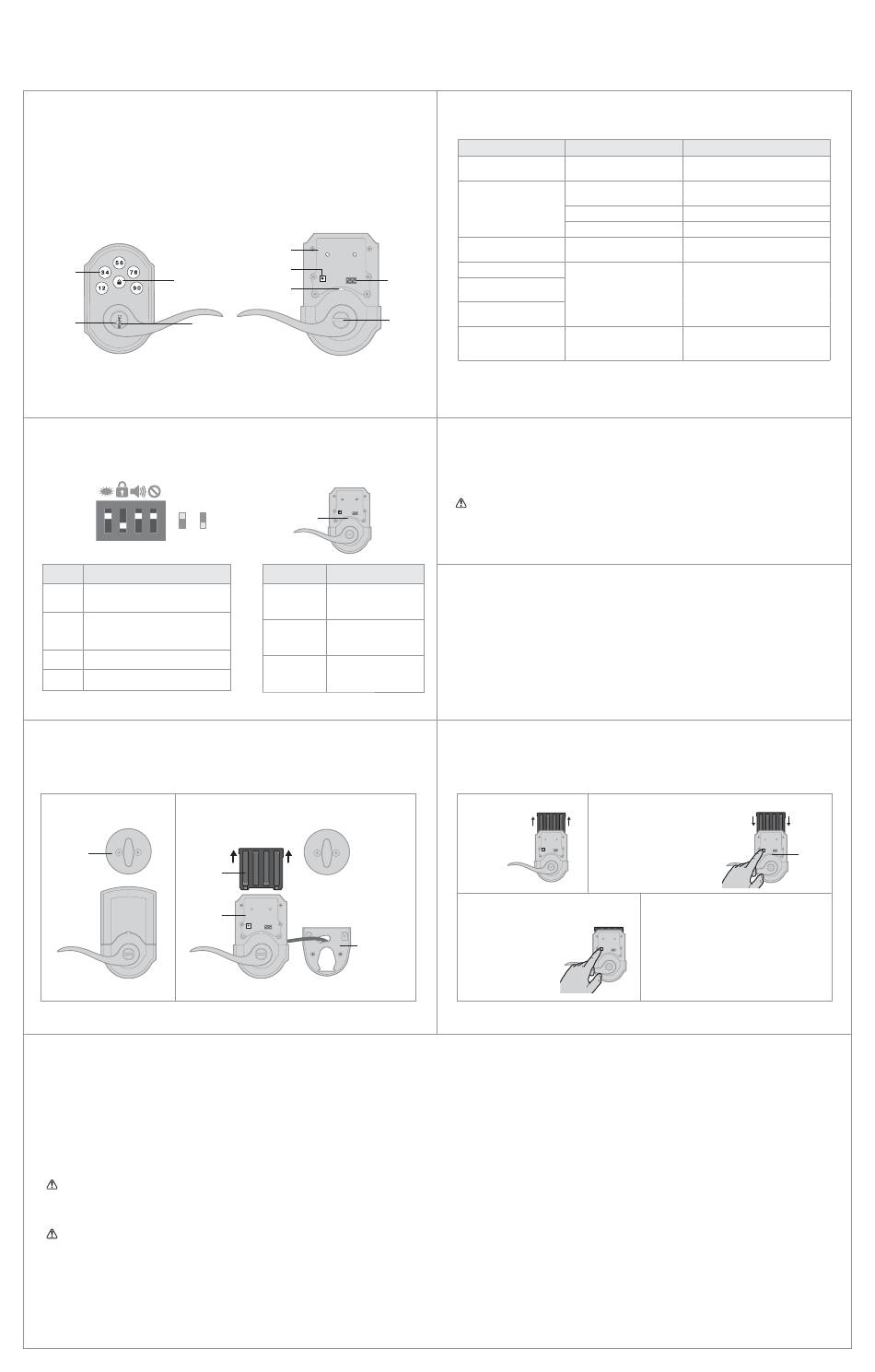

Weiser SmartCode 5 Installation And User Manual page 4

SmartCode at a Glance
Exterior
Keypad
Lock
button
SmartKey Keyway
tool hole
Switches and Status LED colors
Switches
On Off
1 2 3 4
Switch Function
Door lock status LED blinks every 6
1
seconds
Lock automatically re-locks door 30
2 seconds after unlocking. Disabled if no
codes are programmed.
3 Audio
4 Not used.
Battery Replacement
If another lock is installed above the lever, remove the interior
assembly when battery replacement is required.
Lock
above
lever
Battery
pack
Interior
assembly
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualified locksmith or other security professional.
Reference Guide
Interior (cover removed)
Back
panel
Program
button
Switches
Status
LED
Turnpiece
Status
LED
Color Lock Status
Green Unlocked
Amber Locked
Red Low battery
Mounting
plate
System Alerts
Alert Reason
Keypad flashes red 1 time Door jammed while
with 1 beep* attempting to lock.
Unsuccessful programming.
Keypad flashes red 3 times
with 3 beeps* One incorrect code entered.
No user code programmed.
Keypad flashes red 10
Low battery.
times with 10 beeps*
Lock beeps 2 times.
Keypad flashes red 3 times.
Programming timeout.
Keypad flashes red 6 times
with 6 beeps*.
Keypad flashes red 15 times Three incorrect codes entered
with 15 beeps* within one minute.
*Beeping sound will only be heard if switch #3 is on.
Deleting a user code
In order to delete a user code, you must override the code by adding a diff erent user code in the same
position. For example, if you want to delete the third code, add a diff erent user code in position three.
Test the old user code to make sure it can no longer unlock the door.
If you cannot remember the user code position, you may wish to perform a factory reset to delete all
codes associated with the lock.
Troubleshooting
A complete Programming and Troubleshooting Guide is available on
the SmartCode 5 Lever page at www.weiserlock.com.
Factory Reset
A factory reset will delete all codes associated with the lock.
1 Remove 2 Press and HOLD the Program
battery pack.
3 Press the Program button
once more. When the LED
flashes green and you
hear one beep, the lock
has been reset.
4 / 4
Solution
Manually re-lock door. If needed,
reposition strike.
Attempt programming procedure
again.
Re-enter code.
Program at least one user code.
Replace batteries.
Attempt programming procedure
again, making sure not to pause for
more than 5 seconds.
Re-enter code after 60 second keypad
lockout.
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED flashes red.
4 Add user codes to your lock.
