JetCard 2215 Quick Installation Guide
Package
•JetCard 2215
•DC Connector Cable, ATX R4 pin to L4 pin, 30cm
•Quick installation guide
•Documentation and software CD‐ROM

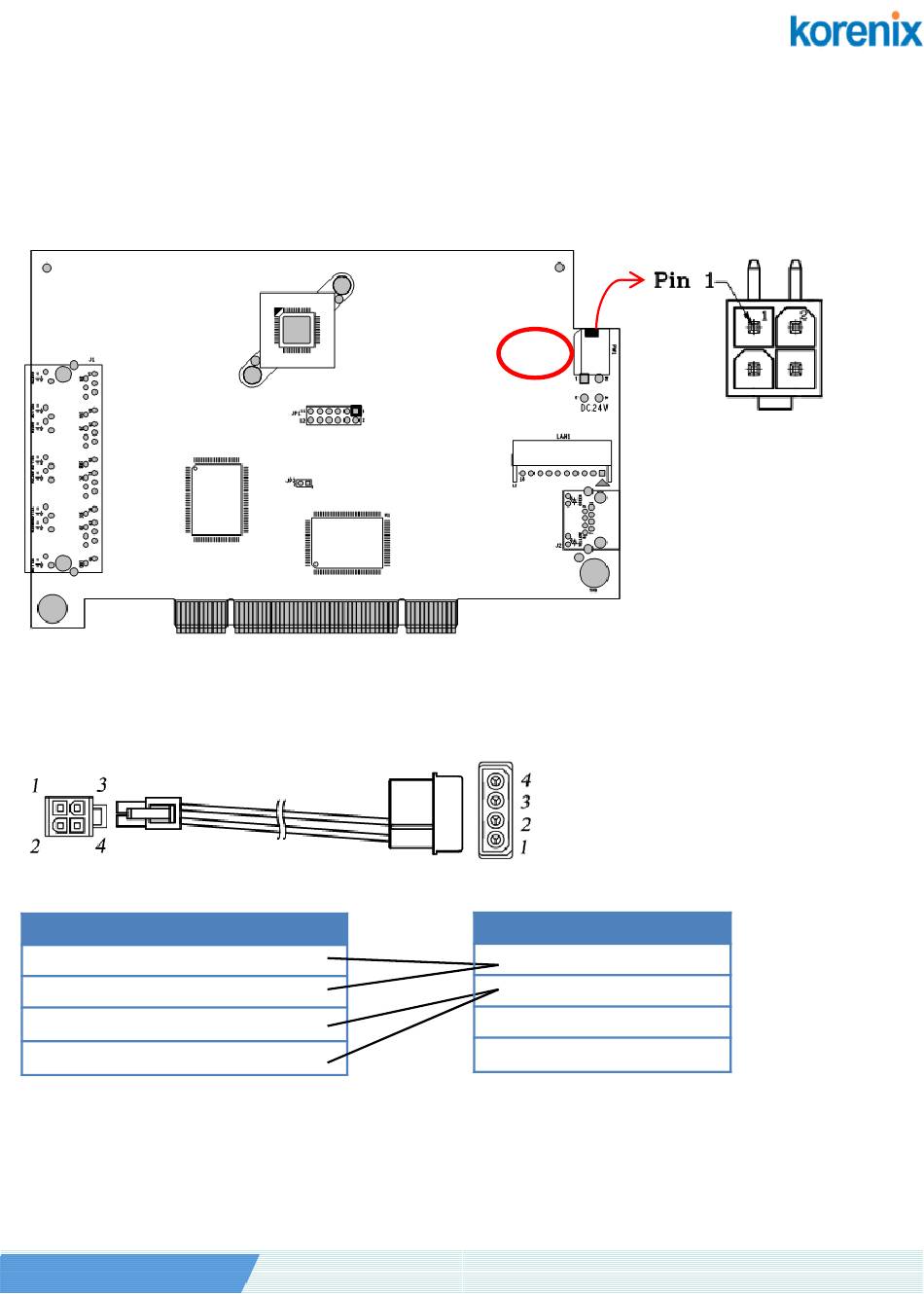

Overview
•Dimension (mm):107 x 166
PoE x4
PIN assignment—Power connector (PW1, ATX 4P)
4‐Pin 12V P4 Connector
Power Signal
GND
GND
12~24V DC
12~24V DC
•Power supply:
12~24V DC (ATX 4P connector)for system use and PoE function
•Power consumption:
80W (incl. PoE)
JetCard 2215 QIG v1.2
JP1
JP3
—Power Connector Cable(ATX R4 pin to L4 pin)
Color
Pin
Black
1
Black
2
Yellow
3
Yellow
4
OS support
•Windows NT/2000/2003/XP
•Linux 2.4.x/2.6.x
PW1
LAN1 (JST)
LAN1 (RJ45)
Molex IDE Connector
Pin
Power Signal
1
GND
2
12~24V DC
3
4
1
Advertisement
Table of Contents
Related Manuals for Korenix JetCard 2215
Summary of Contents for Korenix JetCard 2215
- Page 1 Package OS support •JetCard 2215 •Windows NT/2000/2003/XP •DC Connector Cable, ATX R4 pin to L4 pin, 30cm •Linux 2.4.x/2.6.x •Quick installation guide •Documentation and software CD‐ROM Overview •Dimension (mm):107 x 166 PoE x4 JP1 LAN1 (JST) JP3 LAN1 (RJ45) PIN assignment—Power connector (PW1, ATX 4P) —Power Connector Cable(ATX R4 pin to L4 pin) 4‐Pin 12V P4 Connector Molex IDE Connector Power Signal Power Signal Color Black 12~24V DC Black 12~24V DC Yellow 12~24V DC Yellow •Power supply: 12~24V DC (ATX 4P connector)for system use and PoE function •Power consumption: 80W (incl. PoE) JetCard 2215 QIG v1.2...
- Page 2 Rx‐ (UTP wire6) Dup/Col LED Pos‐lead NC (Optional for UTP wire4,5) 10 Dup/Col LED Neg‐lead PIN assignment—PoE LED (JP1,6x2 header) Function Function PoE LED1 + PoE LED4 + PoE LED1 ‐ PoE LED4 ‐ PoE LED2 + I2C SCL PoE LED2 ‐ I2C SDA PoE LED3 + PoE LED3 ‐ PIN assignment—UPCI select (JP3, 1x2 jumper) UPCI reset signal control (Default: short) 新型第 M 339841 號 新型第 M 339840 號 發明第 I 313547 號 Copyright@2010 Korenix Technology Co., Ltd. All rights reserved. Reproduction without permission is prohibited. Specification subjects to change without notice. Customer Service: KoreCARE@korenix.com JetCard 2215 QIG v1.2...
