Installation Instructions
1 M5x12 screws
2 Upper duct assembly
3 Upper mounting point for drive module (M10 pem nut)
4 Mounting backplate

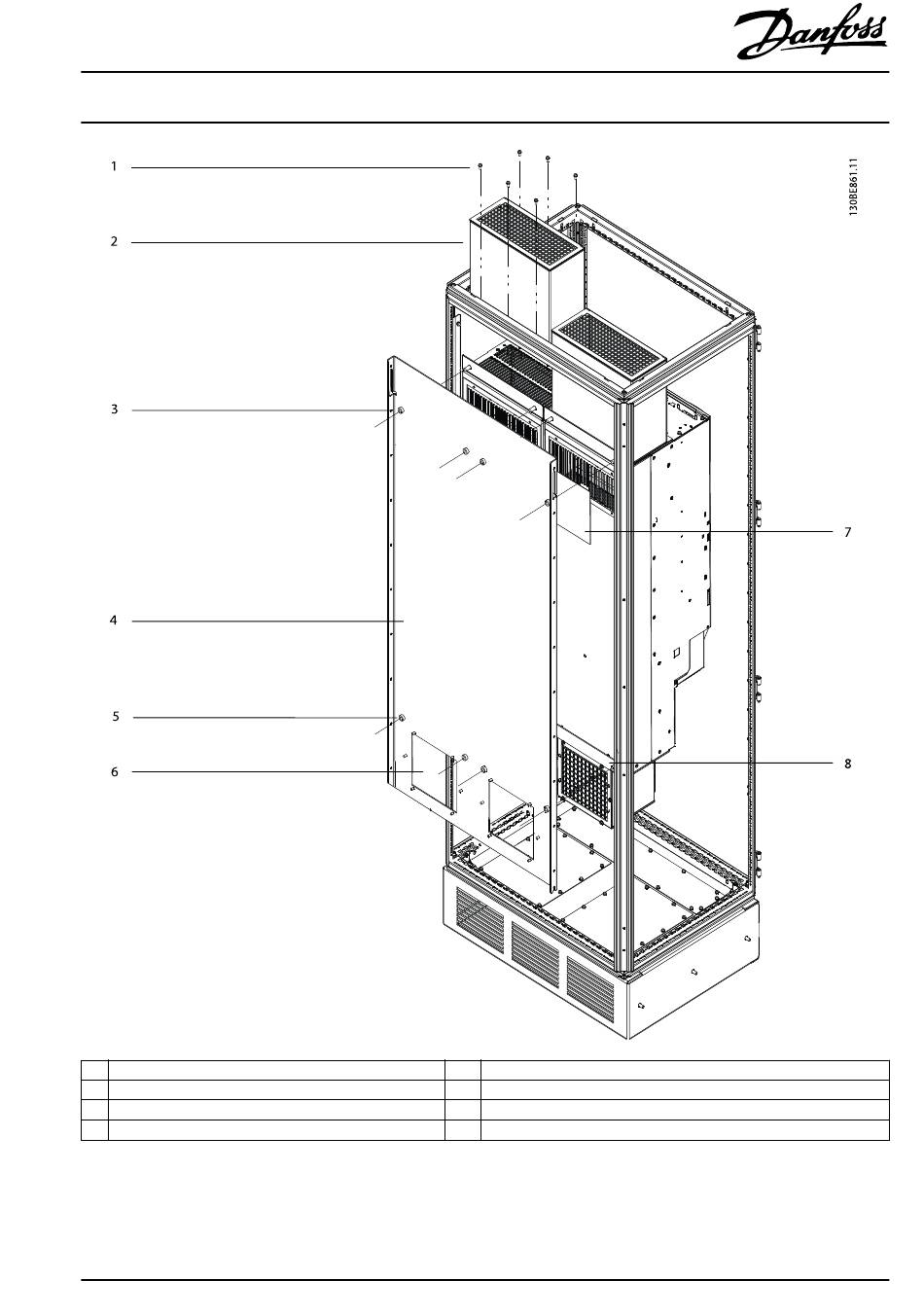

Illustration 1.7 Installing the Drive Modules onto the Mounting Backplate
MI92K102
In-back/Out-top Cooling Kit for VLT
Parallel Drive Modules
®
VLT Series FC 102, FC 202, and FC 302
5 Lower mounting point for drive module (M10 pem nut)
6 Intake vent opening
7 Gasket, between back exhaust and mounting backplate
8 Slot gasket
