Installation Instructions
Assembling the Upper Duct Assembly
1. On the top side of the enclosure, install the gasket (7) and then the grill (2). Secure the grill with 8 M5 nuts and torque to
5.1 N · m (45 in-lb).
2. Install the gasket (1) on top of the grill. Leave the paper backing on the adhesive until ready to install on the drive
module.
3. Turn the duct enclosure over so the base of the enclosure is facing up. Install the gasket (10) on the base of the
enclosure.
4. Place the base plate (11) on the gasket (10). Secure with 8 M5 nuts and torque to 5.1 N · m (45 in-lb).
5. On the front side of the enclosure (8), install the 4 gaskets (3, 4, 5, 9).
6. Place the front cover plate (6) on top of the gaskets. Secure the front cover plate to the enclosure using 8 M5 nuts.
Torque to 5.1 N · m (45 in-lb).
7. Install the gasket (12) on top of the base plate.
1 Gasket between grill and the top panel cover
2 Grill
3 Gasket, top front cover
4 Gasket, left front cover
5 Gasket, bottom front cover
6 Front cover plate

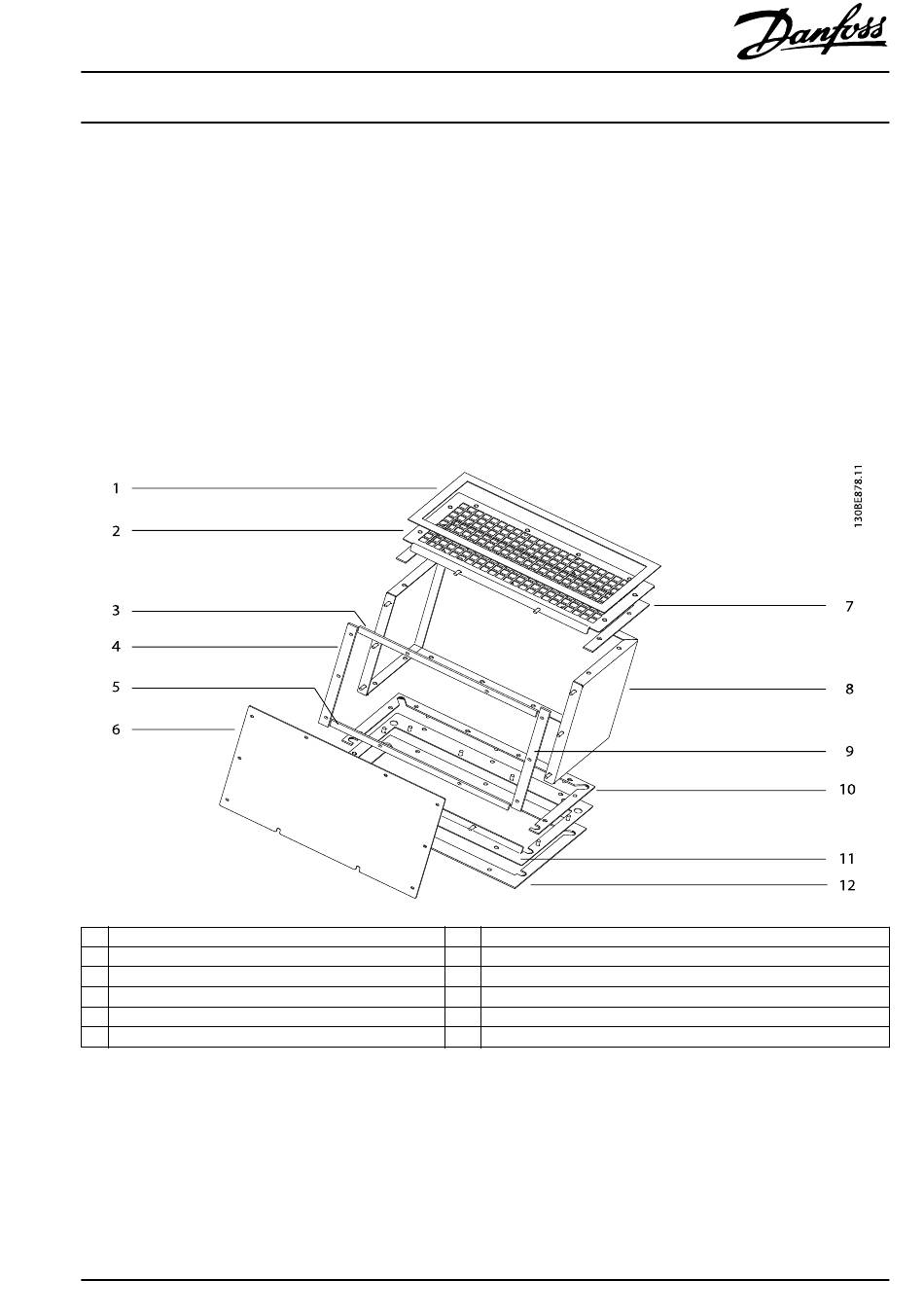

Illustration 1.6 Assembling the Upper Duct Assembly
MI92K102
In-back/Out-top Cooling Kit for VLT
Parallel Drive Modules
®
VLT Series FC 102, FC 202, and FC 302
7 Gasket between duct enclosure and grill
8 Duct enclosure
9 Gasket, right front cover
10 Gasket between duct enclosure and base plate
11 Base plate
12 Gasket between base plate and module
