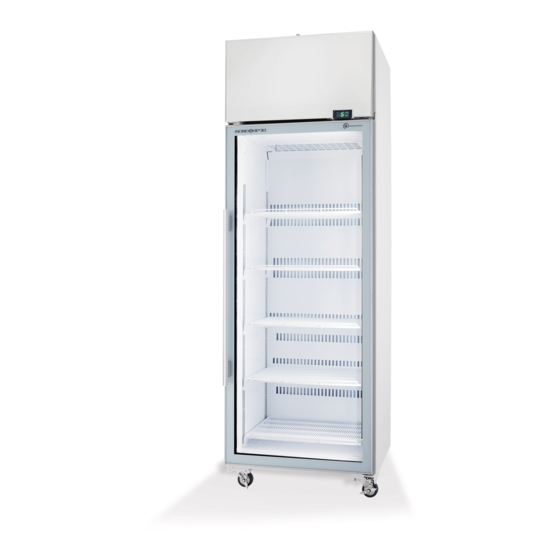

Skope ActiveCore TME series User Manual

User Guide
Thank you for purchasing a SKOPE refrigeration product.

Installation Guidelines

When installing this chiller, ensure the installation guidelines below are considered and met
Ventilation
The installation surface
Ensure all ventilation
requirements below are must be capable of
met. supporting the loaded
Sunlight Uneven Surface
Do not install the chiller in Do not install the chiller on
an uneven surface.
direct sunlight.

Ventilation Requirements

This chiller must have the following ventilation clearances at all times.
TME and SKT models
300mm
Min. above
No side
clearance
required
No below clearance required
Surface Door Opening
Allow adequate space for
the door/s to open and
close properly.
cabinet.
Power Supply
Do not overload the power
supply.
No side
No behind
clearance
clearance
required
required
Climate Class
The chiller must be installed
in an environment within its
climate class.
The climate class is stated
on the cabinet rating label
inside the chiller, and
specified on the back page
of this user guide.
Blocking Ventilation
Do not store boxes or items in
front or on top of the chiller.
BME and SKB models
50mm
Min. above
50mm
Min.
Refrigeration Refrigeration
.
BME and SKB Rear Spacer
Extend the two rear spacers
out, ensuring they are
50mm
Min.
locked into place.
behind (provided
by rear spacer)
below
