22 Heat-Timer Corp.

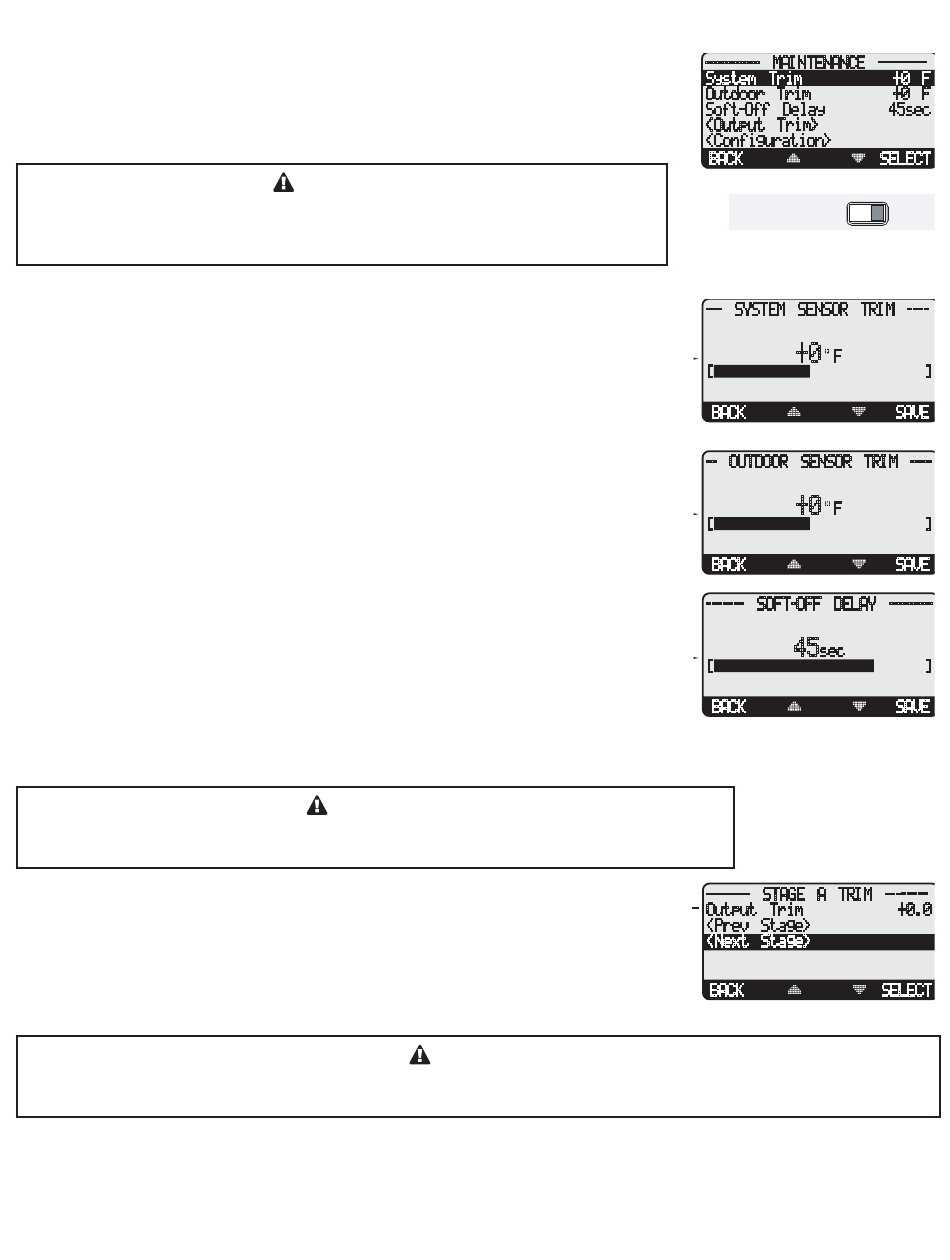

MAINTENANCE

Button: MENU/<Maintenance>
The Maintenance menu gives access to sensor and outputs trimming and Soft-Off. In
addition, you'll have access to view the Startup configuration settings.
To be able to change the Mini-MOD settings the Program/Run Switch must be set
to Program. The switch is located under the Enclosure Wiring Cover for security.
The Enclosure Wiring Cover can be securely closed using a lock.
SYSTEM & OUTDOOR SENSOR TRIM
Adjustable -5°F to +5°F
Button: MENU/<Maintenance>/System Trim
Button: MENU/<Maintenance>/Outdoor Trim
• The Heat-Timer thermistor type sensors are very accurate, and normally require no
calibration. Sometimes it may be desirable to make small adjustments to the displayed
value for either the Outdoor temperature (OD) or the System temperature (SYS). The
Trim setting can adjust the displayed value by ± 5°F.
• Do not use the Trim setting to make the Outdoor temperature sensor match that reported
on the radio or TV. Outdoor temperature can vary widely over a broadcast range. Only
trim the outdoor sensor based on an accurate thermometer reading taken where the
sensor is located.

SOFT-OFF DELAY

Adjustable 0sec to 60sec
Button: MENU/<Maintenance>/Soft-Off Delay
• When a stage is no longer needed, the Soft-Off keeps that stage burner in Low Fire prior
to turning it off.
• The display will show a percent that is equal to the Ignition % for the stage in Soft-Off
delay. That number will blink for the Soft-Off delay period.
• If during the Soft-Off stage delay period the Mini-Mod needed that stage to turn back on,
the stage will be released from the Soft-Off delay and resume normal operation.
When using Soft-Off and Last Stage Hold, the last boiler stage will not turn off until both
parameters have elapsed. In this case, Soft-Off will start after the Last Stage Hold.

OUTPUT TRIM

Adjustable -5 to +5
Button: MENU/<Maintenance>/Output Trim
• Each of the stages controlled by the Mini-MOD has a separate Output Trim setting.
• Output Trim acts as an adjustment to a stage output percent to match the burner motor.
• After adjusting the Output Trim, test the operation to make sure the results match your
expectation.
DO NOT use the Output Trim for a Stage unless it is absolutely necessary. Test burner operation and modulation
output matching after adjusting the Output Trim.
CAUTION
CAUTION
CAUTION
-- ---- --- - MA INTE NAN CE - --- --- --
Sy ste m Trim
Out doo r Tri m
So ft-O ff D ela y
<Out put Tri m>
<C onf igu rat ion >
BAC K
-- - SY STE M SE NSOR TRI M -- --
Default: 0°F
[
- - OUT DOO R SE NSO R TR IM -- --
[
--- --- - SO FT- OFF DELA Y -- --- ---
Default: 45sec
[
- --- --- - ST AGE A TRI M -- --- ---
Outp ut T rim
Default: 0
<Pr ev S tag e>
< Nex t Sta ge>
B ACK
45 sec
SE LEC T
PROGRAM
+0
F
BAC K
+ 0
F
BAC K
45
sec
B ACK
SELE CT
+0 F
+0 F
RUN
]
SA VE
]
SA VE
]
SAV E
+0. 0
