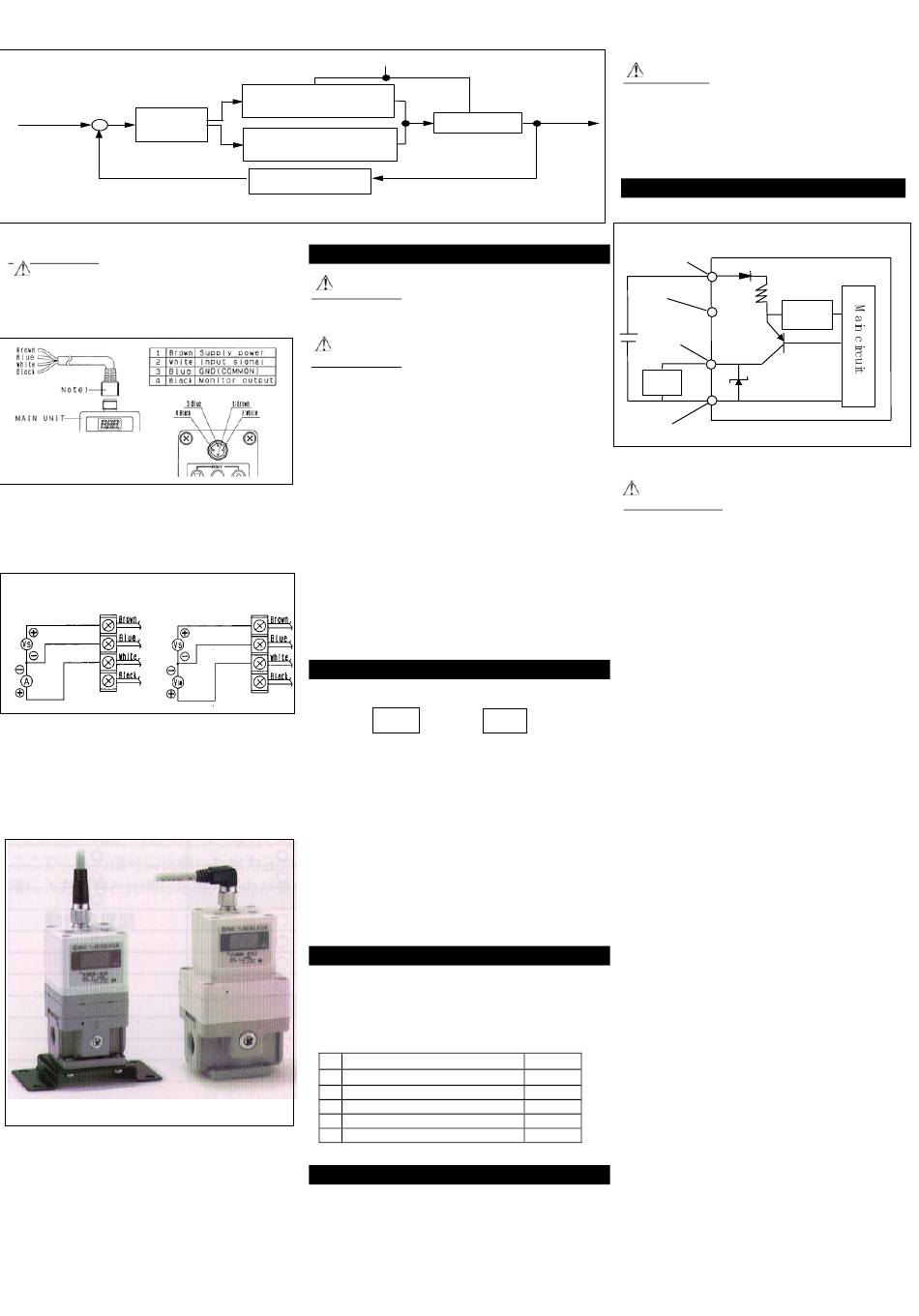

SMC Networks ITV2000 series Installation And Maintenance Manual page 2

B lock line char t
+
In put signal
⑤ Control
circuit
－
Fig 5
CAUTION
Wiring
Connect the cable to the connector on the main unit as shown in the
following diagram. Take precautions as incorrect wiring will damage the
unit. Use a DC power supply capable of supplying the necessary power
requirements with minimal ripple.
Note: The right angle type connector extends to the left side (over the
supply port side).
Wiring diagram
Current signal type Voltage signal type
Vs : Power supply 24VDC
12VDC
A : Input Signal 4 to 20mADC
O to 20mADC
Fig 6
Straight Type Connector Right Angle Type Connector
Fig 7
S u p p ly p re s s u re (V A C )
① Supply solenoid valve
( Vacuum sol.)
② Exhaust solenoid valve
( Atmospheric sol.)
④ Pressure sensor
Setting the Regulator
CAUTION
As soon as the 'set' key is operated minimum/maximum pressure will be
present at the outlet port.
CAUTION
As soon as primary pressure is applied to the regulator minimum pressure
will be present at the outlet port.
・Release 'lock key' (Fig 1) as explained in section 'Function of key-lock'
・To set minimum pressure (display shows F-1 Fig 1) use up/down keys
(Fig 1) to set minimum pressure, press 'set' key(Fig 1) to 'lock '
setting.
・To set maximum pressure(display shows F-2 Fig 1) use up/down keys
(Fig 1) to set maximum pressure, press 'set' key(Fig 1) to 'lock'
setting.
・To set switch output 1 (display shows P-1 Fig 1) use up/down keys to set
switch output, press 'set' key(Fig 1) to 'lock' setting.
・To set switch output 2 (display shows P-2 Fig 1) use up/down keys to set
switch output.
Note 1:If the above sequence of events has been followed correctly, the
settings will complete automatically.
Note 2:If only setting minimum pressure, when pressure is 'set', pressing
the set button once more will 'skip' to the next step.
Function of Key-Lock
With input signal applied
a
Vs : Power supply 24VDC
▽ Push 'down' key (Fig 1) for larger than 2 seconds. Display (a)
12VDC
flashes 'lock'.
Vin : Input Signal 0 to 5VDC
1. Push 'set' key (Fig 1) lock automatically releases.
O to 10VDC
Note: Push 'down' key (Fig 1) again to cancel operation.
2. Key Lock Release
1. Push down on 'unlock' (Fig 1) key for longer than 2 seconds.
2. Key-lock will release.
Note: To cancel push 'lock' key (Fig 1).
3. To Lock
1. Push down on 'up' △ (Fig 1) for longer than 2 seconds.
2. Led will flash 'unL' (unlock).
3. Push 'set' key (Fig 1) to lock.
Note: To cancel push 'down' key (Fig 1).
Function of the 'Error' Display
If an abnormality is detected by the ITV2000, 3000, 2090, the LED display
(Fig 1) will show 'Er' followed by a code number. Isolate the power supply
and ascertain and solve the problem. Re-instate power supply after
correcting fault.
Error codes are as follows:
No
1 Input Signal Outside Spec.
2 EEProm Reading / Writing Error
3 Memory Reading / writing Error
4 Solenoid Valve Fault
5 Switch Output Over-Current
Reset Function
Push up and down keys (Fig 1) together for longer than 3 seconds. Display
(Fig 1) shows 'RES'. Release keys, minimum, maximum pressures, switch
outputs P1 and P2 are reset to start condition.
Output
pressure
③ Pilot valve
※ ( ) : IT V 2 0 9 0 T Y P E
Loc b
unL
Content Display
Er 1
Er 2
Er 3
Er 4
Er 5
CAUTION
1. If the electrical supply fails, settings are 'held' for a short period.
2. If the air pressure fails with power 'on' the solenoid will 'flutter'.
3. If the monitor output functions is not used, ensure that the wire is
totally insulated.
PNP Circuit
B row n
W hi te
sensor
B l ack
l oad
B l ue
Note: If the supply exceeds 30mA the sensor will output to the LED
display (Fig 1) and show 'Er 5'.
CAUTIONS
1. This product (ITV2000, 3000, 2090) is pre-set at the factory and
must not be dismantled by the user. Contact your local SMC office
for advice.
2. Ensure, when installing this product, that is kept clear of power
lines to avoid noise interference.
3. Ensure that load surge protection is fitted when inductive loads are
present (i.e. solenoid, relay etc.).
4. Ensure precautions are in place if the product is used in a 'free flow
output ' condition. All will continue to flow continuously.
5. Do not use a lubricator on the input side of this product. If
lubrication is necessary, place the lubricator on the 'output' side.
6. Ensure all air is exhausted form the product before maintenance.
7. Length of connector cable shall be 10m or less.
