horsch Tiger MT Operation Manual

Tiger AS / MT with slewing undercarriage
Wings operation
This does not replace the operating instructions!
Pay attention to the safety instructions and warnings in the operating instructions!
Keep the operating instructions on board.
Operators must have read and understood the complete operating instructions before working with the machine!

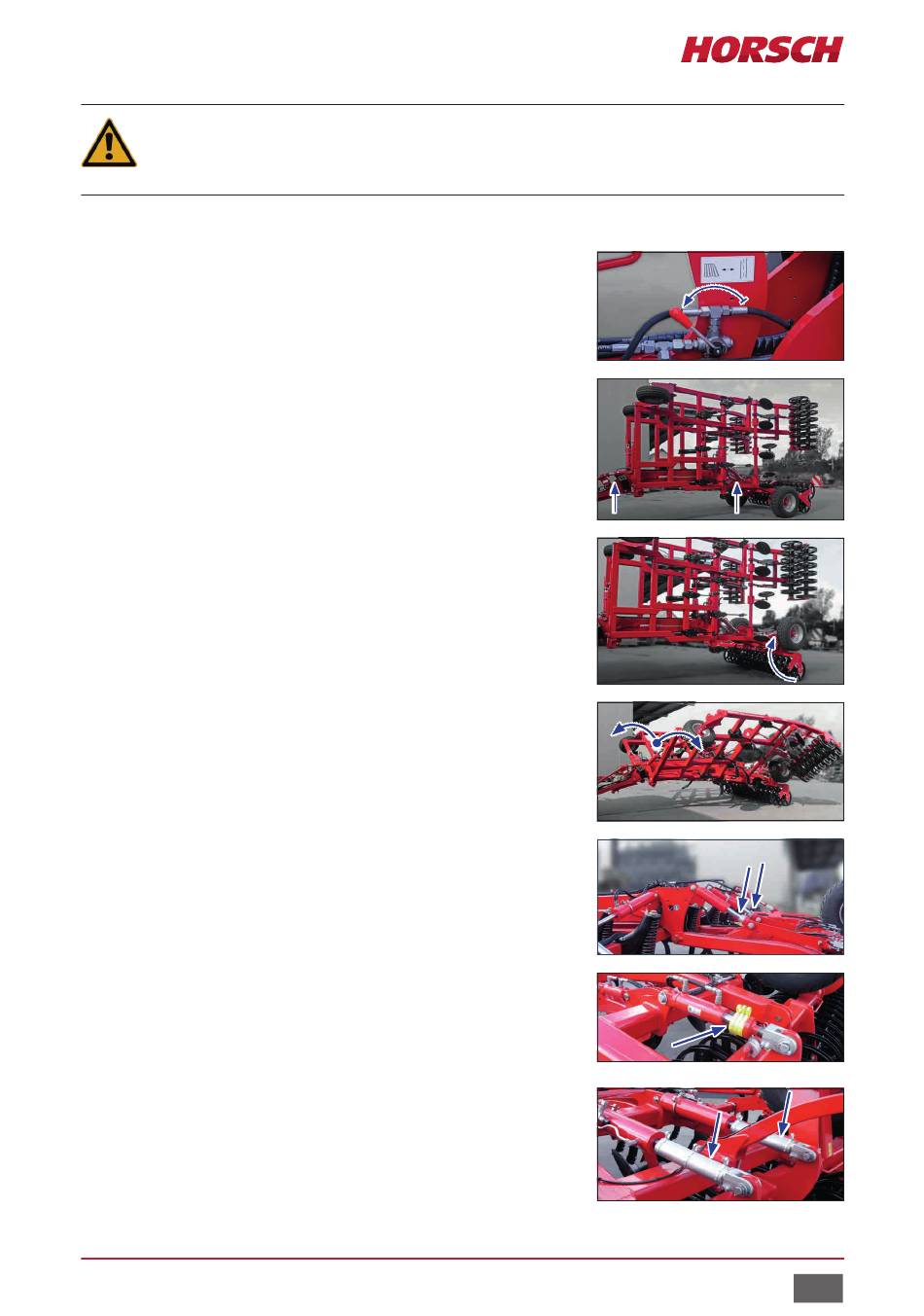

Unfolding
1. Set the rotary spool valve on the drawbar to Field.
2. Lift out the machine.
3. Retract the undercarriage or swivel it up.
4. Unfold the machine.
5. Adjust the working depth.
- Place the aluminium clips on the hydraulic cylinders for
lift/lower.
- Place the same number and colour of clips on both
hydraulic cylinders.
6. Adjust the pendulum compensation.
- Add aluminium clips to the hydraulic cylinders of the
undercarriage.
Art. No.: 80580208
Hydraulic cylinder undercarriage, outside
Hydraulic cylinder, undercarriage centre
1 / 2
