9. Remove the control card EMC shield.
A If the MCB 159 is installed, lift the left side of the control card EMC shield first, then lift the right side until it is possible to
remove the MCB 159 ribbon cable. Otherwise, there is a risk to destroy the cable or the connector. When the ribbon cable is
removed, the EMC shield is separated from the control card.
1
1 T10 screws

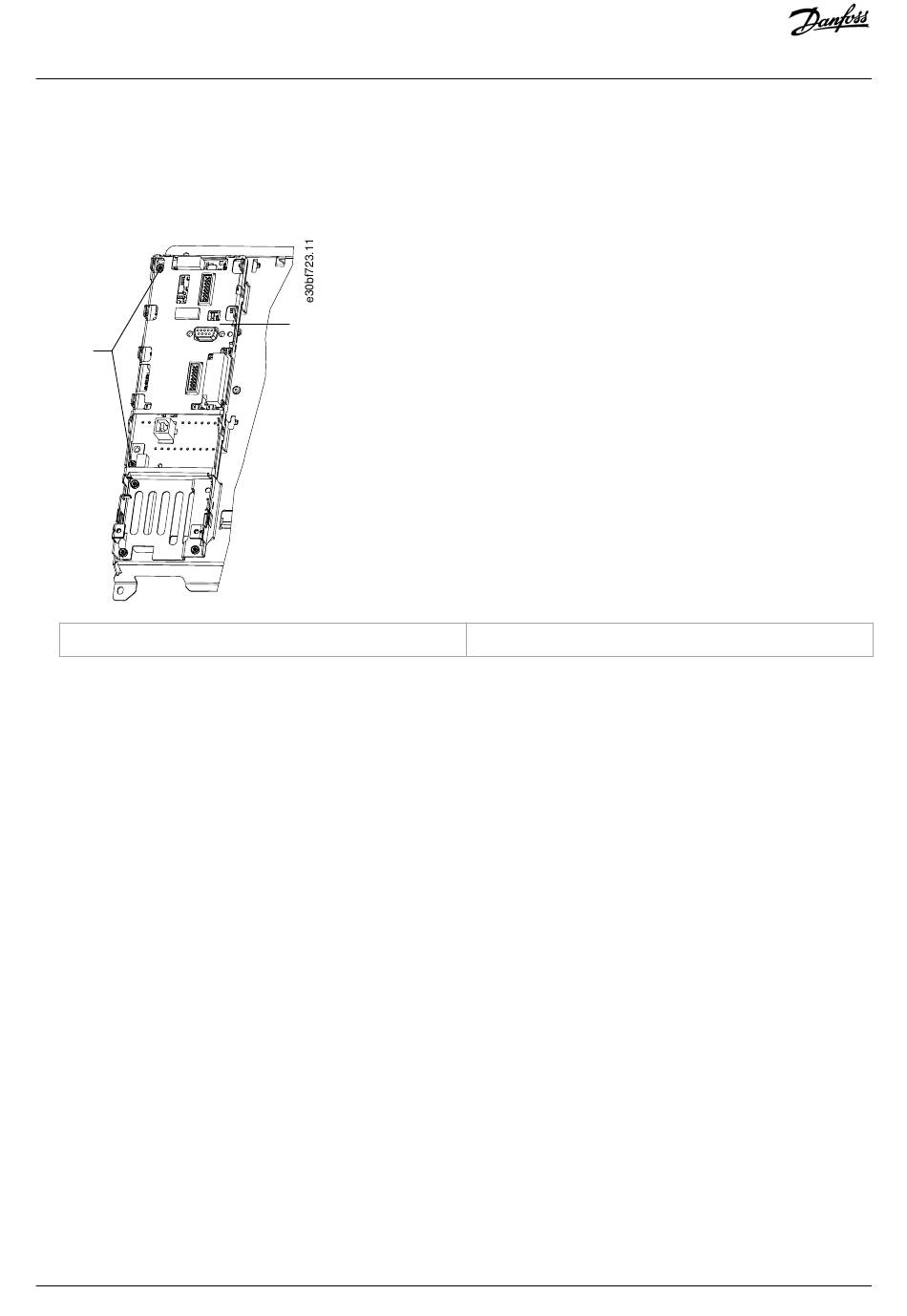

Illustration 8: Screws and EMC Shield
10. Unscrew the 3 T10 screws and remove them.
11. Gently remove the control card from the upper-right socket. Avoid overbending and contact with electronic components.
