Installation Guide | Control Card VLT® FC Series
1
1 Cable shield
3 T10 screws

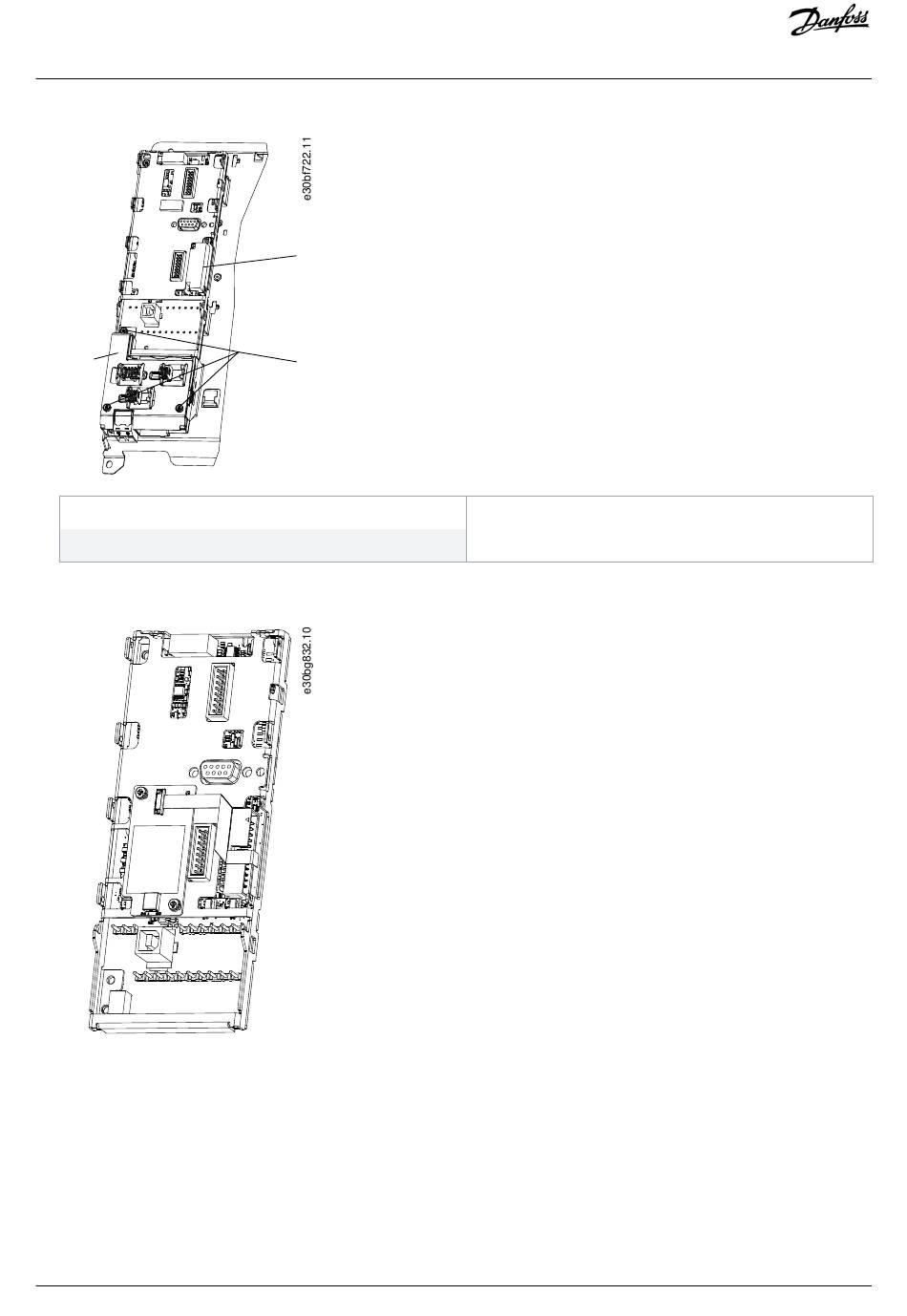

Illustration 6: Location of the Cable Shield, Screws, and MCO Ribbon Cable (Control Card without MCB 159)
Illustration 7: Control Card with MCB 159
8. Unscrew the 2 T10 screws holding the control card EMC shield (4 screws if MCO is installed).
A If MCO is installed, remove the MCO ribbon cable.
B If the VLT® Sensorless Safety MCB 159 option is installed, it is not possible to remove the ribbon cable before removing the
control card EMC shield.
8 | Danfoss A/S © 2018.09
2
3
2 MCO ribbon cable
Replacement
AN279051429263en-000101 / 130R0788
