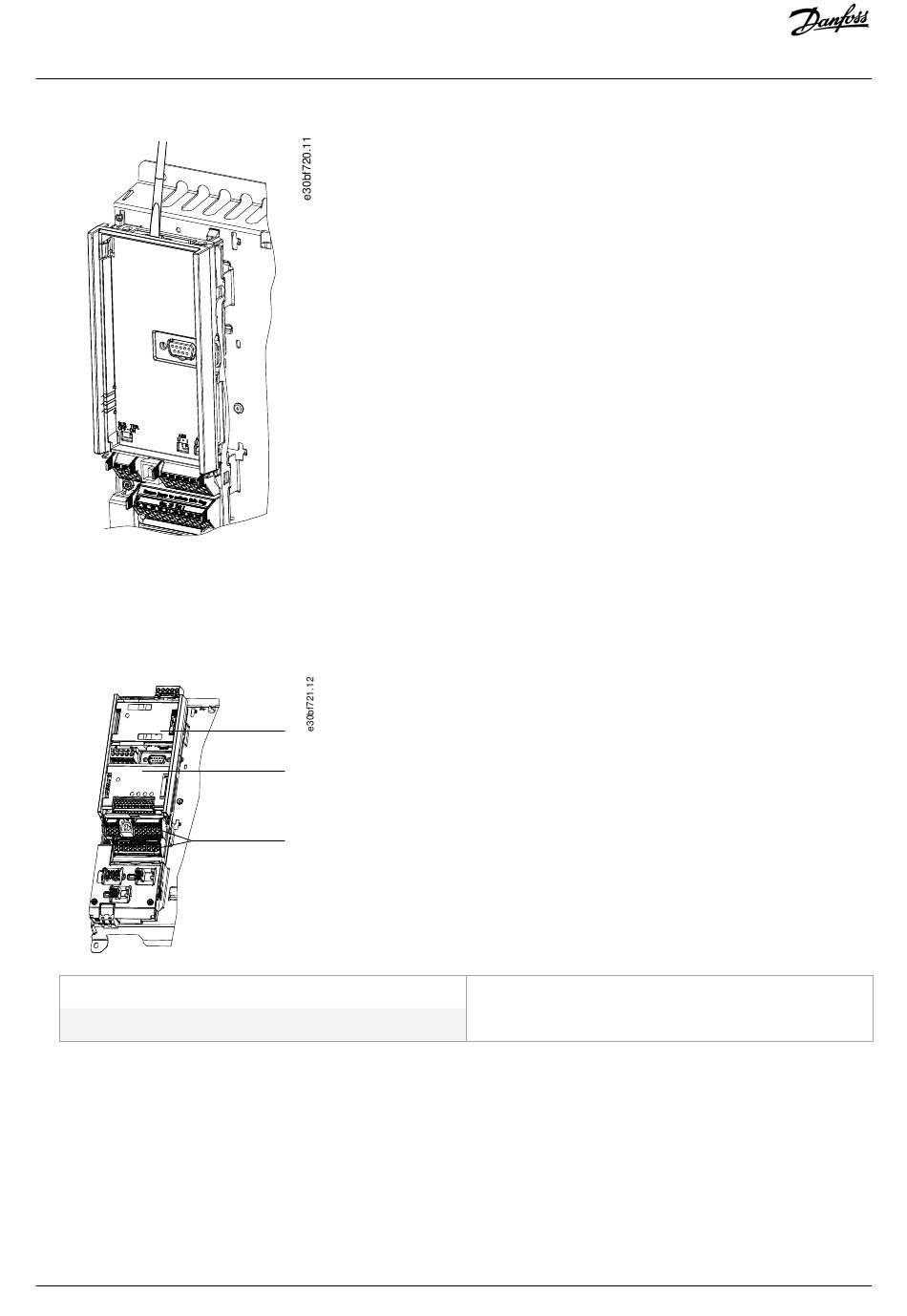

Illustration 4: Removing the LCP Cradle
3. Remove all control cables from the metal bracket (spring-loaded).
4. Remove any A, B, or C options that may be installed.
5. Remove the I/O terminals.
1 Location of A option
3 I/O terminals
Illustration 5: Location of Options and I/O Terminals
6. Unscrew the 3 T10 screws and remove the cable shield.
7. Remove the plastic cover underneath the cable shield.
