The spray gun should be operated by a trained worker. Any use and/or servicing not in compliance with this manual will
INVALIDATE THE WARRANTY. Read these instructions before using the spray gun.
SPECIFICATIONS
Max. working pressure: 6.8 bar (98 PSI)
Temperature range:
Model
Nozzle
diameter
mm (in)
High T.E.C. W400 WB
W400WB-101G
1.0 (0.039)
W400WB-121G
1.2 (0.047)
W400WB-141G
1.4 (0.055)
W400WB-132G
1.3 (0.051)
1.6 (0.060)
W400WB-162G
Nozzle
Diameter
Type
mm
1.0 (0.039)
200WB/10
1.2 (0.047)
400WB/12
1.4 (0.055)
400WB/14
ATTENTION
Spare parts list is provided on page 3.
Manufactured by:
ANEST IWATA Corporation
1-9-14, Ebisuminami, Shibuya-ku, Tokyo, Japan
INSTRUCTION MANUAL

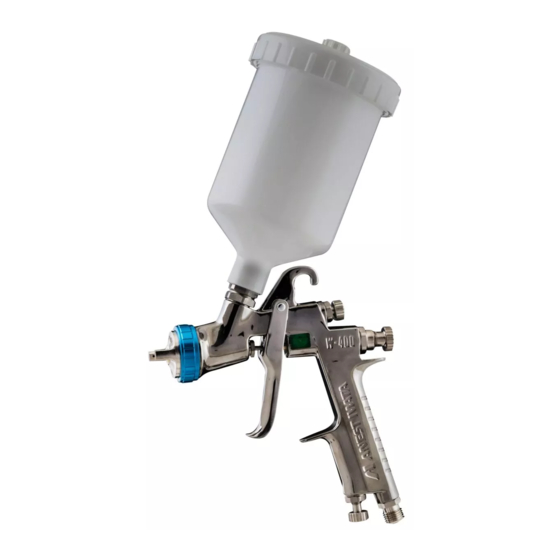

W400 WB SPRAY GUN
Paint tank terminal: M16 x 1.5mm Emitted noise level (LAeqT) 74.5 dB (A)
5~40 °C
Air inlet terminal: G 1/4"
Air
Lacquer
pressure
output
bar (PSI)
ml/min
1.8 (26)
Needle
Type
40012
40012
20015
PL Before commencement of work thoroughly read this
manual and its instructions, including those regarding
safety of work, and strictly observe them.
IMPORTANT
Air
consumption
l/min (cfm)
90
230 (8.1)
120
160
140
390 (13.7)
210
390 (13.7)
1
Jet width
Head
mm (in)
230 (9.1)
WB1
260 (10.2)
290 (11.4)
300 (11.8)
WB2
300 (11.8)
WB2
Weight
g (lbs)
380 (0.84)
Advertisement
Related Manuals for Anest Iwata High T.E.C. W400 WB
Summary of Contents for Anest Iwata High T.E.C. W400 WB
- Page 1 Head Weight diameter pressure output consumption mm (in) bar (PSI) ml/min l/min (cfm) mm (in) g (lbs) High T.E.C. W400 WB W400WB-101G 1.0 (0.039) 230 (9.1) 230 (8.1) W400WB-121G 1.2 (0.047) 260 (10.2) 1.8 (26) 380 (0.84) W400WB-141G 1.4 (0.055) 290 (11.4)
- Page 2 SAFETY FIRE OR EXPLOSION HAZARD Lacquering materials applied with the device may be flammable or explosive: Use the spray gun in well-ventilated lacquering cabins. Avoid ignition sources, including open fire, electric arc, etc. Never use chlorinated hydrocarbons (e.g. trichloroethylene, ethyl chloride, etc.) as solvents, because they may react chemically with aluminium and zinc-coated elements and bring about explosions.
-
Page 3: Spare Parts
6) Turn the jet adjustment knob anticlockwise, until it reaches its full opening position, and then tighten up the pilot sleeve in the spray gun body. ATTENTION Use only original ANEST IWATA spare parts. Never immerse the whole spray gun in a solvent. Protect head holes, nozzle and needle against damage. - Page 4 DISTURBANCES DURING OPERATION Fault Reason Remedy 1. Air penetrates between the nozzle and its 1. Unscrew the nozzle in order to clean the Pulsation tapered seat in the body. seat – replace if damaged. 2. Air is drawn in through the head seal. 2.
