PROGRM Menu
Parameter Choices
Level 4 submenus
CKZBAND 10D
20D
50D
OFF
1D
2D
5D
CKPRINT OFF
WAITSS
TARGET
3.2.6

Print Format Menu

See Section 11.0 on page 56 for information about custom print formatting.
CONFIG FORMAT
GFMT NFMT
Press to insert a space
before the active character
Scroll left in format string
Decrement ASCII value of active character
30 520 Installation Manual
Check Zero Band. Specifies a band around gross zero in which the scale must pass in order to
re-arm the TARGET autoprint and in which the digital outputs are set to OFF. Set in display
divisions.
Check Print. Enables the autoprint feature.
• If set to WAITSS, performs automatic transmission of serial data each time the scale
settles out of motion within the ACCEPT band. When the scale goes into motion again,
data output is again enabled and transmission occurs when the scale comes to a
standstill again.
• If set to TARGET, performs automatic transmission of serial data each time the scale
settles out of motion within the ACCEPT band. When the scale enters and then leaves the
CKZBAND, autoprint is re-armed.
Table 3-6. Program Menu Parameters (Continued)
CALIBR SERIAL PROGRM
CFMT SPFMT
Display first 7
characters of format
Display and edit
active character and
ASCII value
Delete active
character

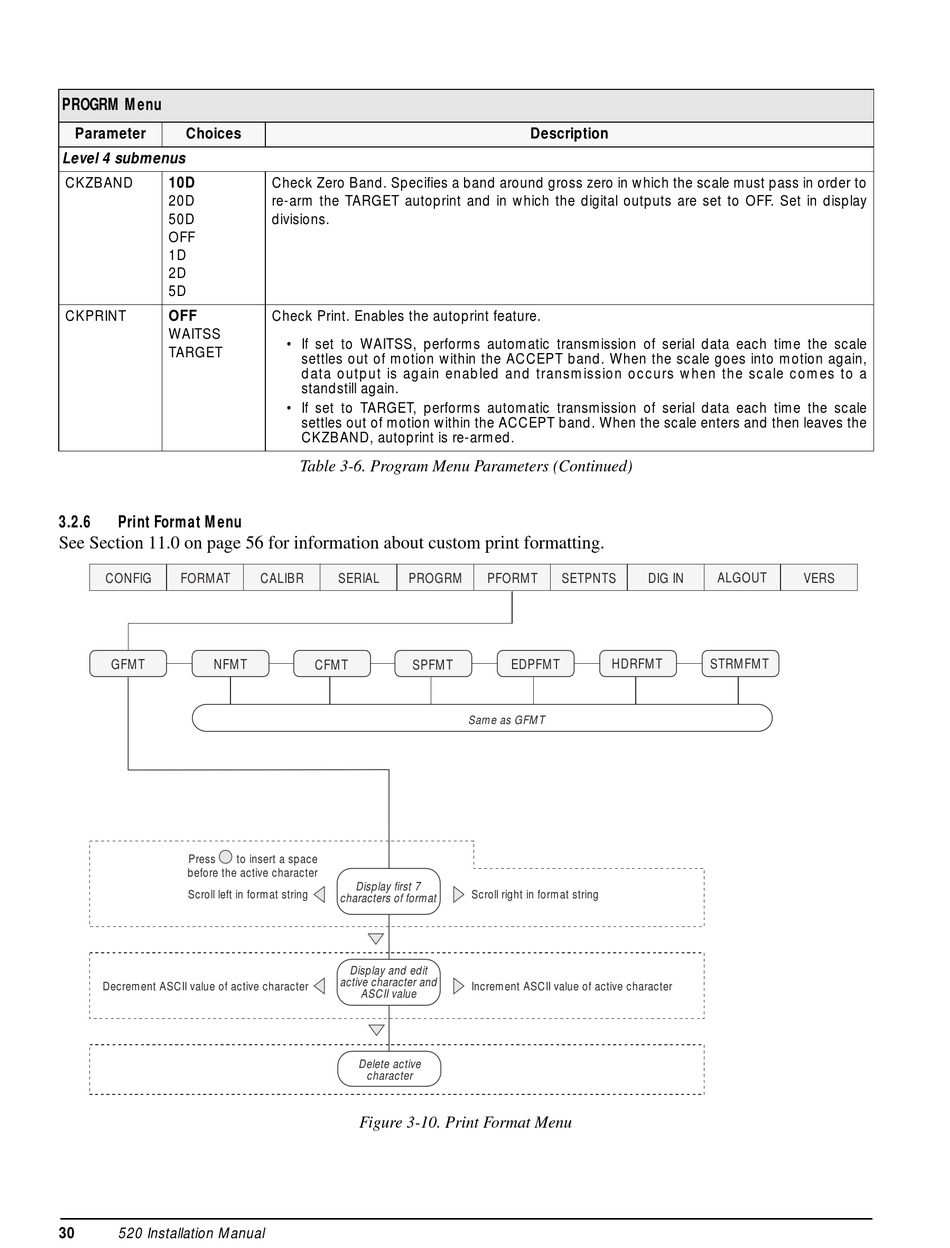

Figure 3-10. Print Format Menu
