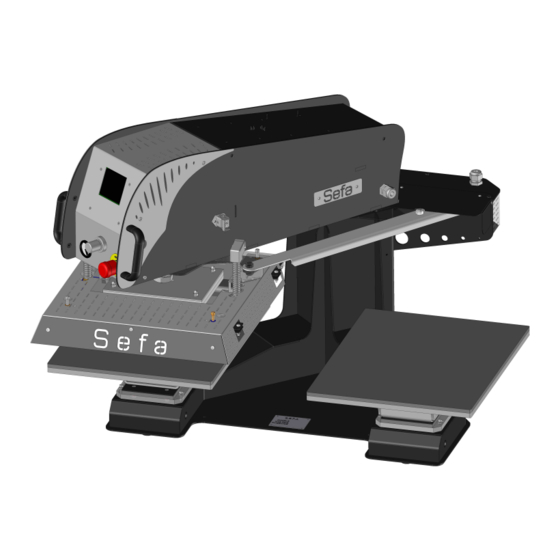

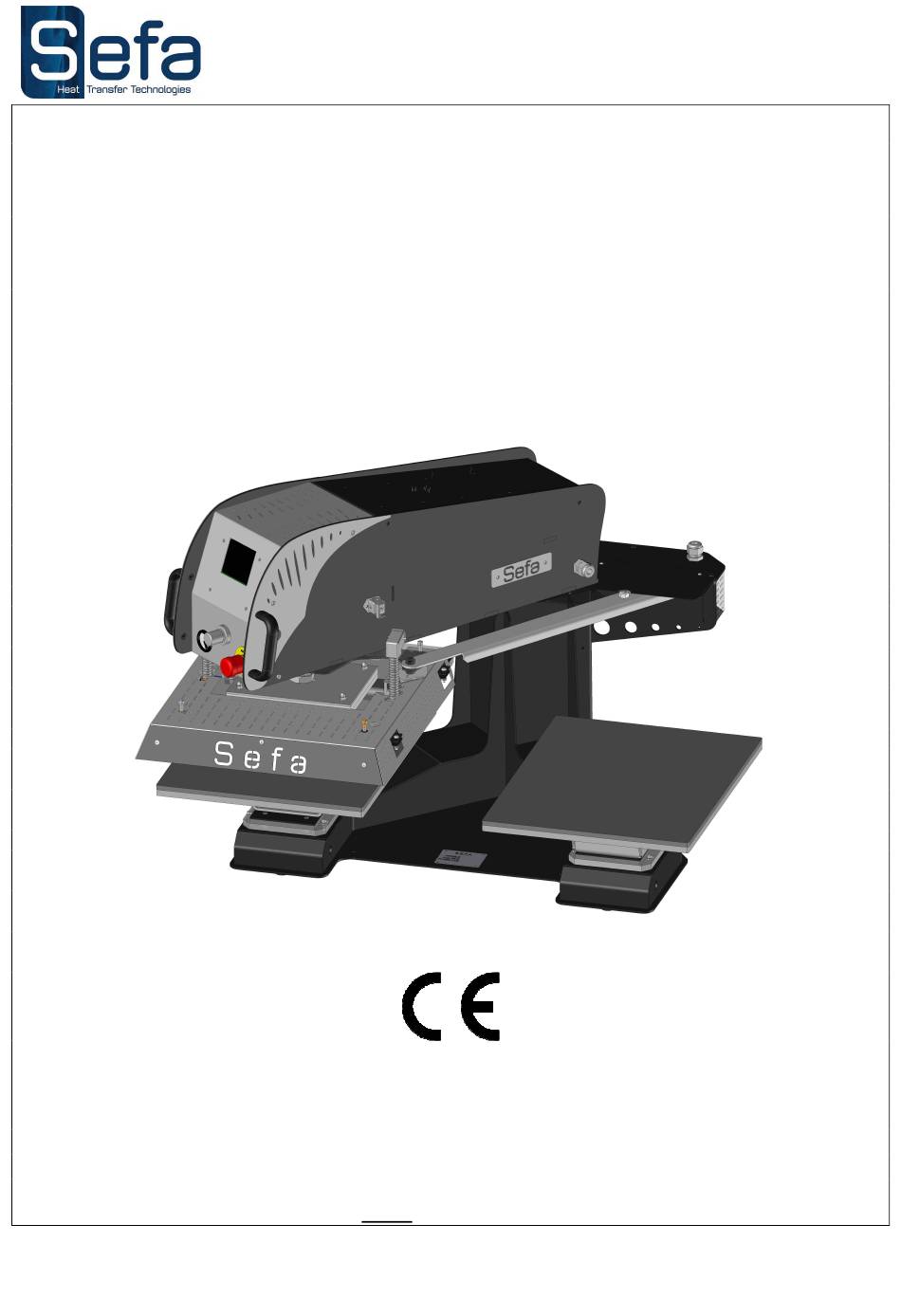

- Page 1 English version INSTRUCTION MANUAL DUPLEX PRO ® S.E.F.A Z.I PASTABRAC 11260 ESPERAZA FRANCE Tel: 33 (0)4.68.74.05.89 - Fax: 33.(0)4.68.74.24.08 E Mail: contact@sefa.fr...
-
Page 2: Warranty Terms
English version V0516 WARRANTY TERMS The warranty period shall come into effect on the day on which the equipment is brought into service at the user's premises, as attested on the returned warranty certificate and the delivery note, and shall run for two years, based on a standard equipment operating schedule of 8 hours per day, i.e. -
Page 3: Table Of Contents
English version V0516 INDEX WARRANTY TERMS ................................. 1 INDEX ......................................2 TECHNICAL DATA ..................................3 SETTING UP THE MACHINE ..............................3 OVERVIEW ....................................4 OPERATION ....................................4 1. SAFETY ....................................5 a) International symbols ................................. 5 b) Important safety precautions.............................. 5 c) Safety features .................................. -
Page 4: Technical Data
English version V0516 TECHNICAL DATA Weight in working order 150 kg Height 713 mm Depth 1005 mm Width 1071 mm Platen size 400 x 500 mm Power supply 220/240 V Single phase + Earth 50/60 Hz Power consumption 3200 W Amp rating Electronic temperature controller Accuracy... -
Page 5: Overview
The factory-installed pneumatic, electrical and mechanical settings programmed by our technicians and the safety features must not be altered under any circumstances. SEFA accepts no liability for problems that may be caused by the machine if such alterations are made. -
Page 6: Safety
They must be refitted if they are removed for servicing work. They must be held securely in place and kept in good condition during normal use. DUPLEX PRO presses are fitted with safety systems to protect the operator from pinch-point hazards. The main safety components are: Emergency stop button Front-mounted button that switches the machine off when pressed. -
Page 7: Safety System Checks
Turn the red button to release the emergency stop. The machine will be reset automatically. Instructions and manuals Technical parts documents are supplied with the machine. Please read them before starting to use your SEFA machine. Page no. 6... -
Page 8: Switching On
English version V0516 2. SWITCHING ON Press the main switch at the back of the machine to turn the power on. Check that the display panel comes on. The screen will show a welcome message, followed by the factory settings. Adjust the temperature (to suit the type of transfer). -
Page 9: Settings
Push the dial back in to save the new setting. d) Swing-away speed Contact your official SEFA stockist to adjust this setting. 5 .OPERATING CYCLE Move the swing arm away to the opposite side from the platen you want to work on. -
Page 10: Electronic Board Settings
English version V0516 6. ELECTRONIC BOARD SETTINGS a) Presets This menu contains nine pre-saved operating programs; up to five presets can be assigned to each program by entering the required setpoints. The operating programs must be suited to the processes you use. The temperature adjustment system is fine- tuned for each program. -
Page 11: C) Sleep Mode
English version V0516 Internal menu code Counters Error log (last 10 errors) To previous screen c) Sleep mode Sleep mode keeps the machine temperature at a certain level for a certain length of time Temperature in sleep mode On/off Start of sleep mode End of sleep mode d) Machine settings Enable drying mode... -
Page 12: E) User Comfort Settings
English version V0516 e) User comfort settings °C / °F Enable/disable buzzer Machine operating temperature range f) Energy saving mode Energy saving mode reduces the machine temperature to the set temperature when the defined idle time has elapsed. Temperature On/off Time Page no. -
Page 13: Full-Auto Mode (Optional)
7. FULL-AUTO MODE (OPTIONAL) a) Cycle options: "foot pedal", "single workstation" and "full auto" DUPLEX PRO has 3 cycle options: Foot-pedal mode: depressing the foot pedal causes the arm to move to the other platen and press. Single-station mode: depressing the foot pedal causes the arm to move to the other platen, press and then return to the original platen. -
Page 14: Parts Layout
English version V0516 PARTS LAYOUT Press cylinder Press function solenoid Safety sensors Swing function solenoid Cylinder stop Filter Swing controller Air supply Power inlet + connection fuses NB: the electronic board is underneath the housing cover (not shown) Control board Press cylinder NB: the front panel Magnetic pass-... -
Page 15: Wiring And Pneumatic Diagram
English version V0516 WIRING AND PNEUMATIC DIAGRAM Page no. 14... - Page 16 English version V0516 Page no. 15...
-
Page 17: Servicing
Contact your stockist to determine whether they need to be renewed or repaired. 2. Maintenance SEFA heat presses are practically maintenance-free. Follow the preventive maintenance instructions below to ensure trouble-free operation: Do not heat items that could perish or score the silicone pad or damage the heat platen’s teflon coating. -
Page 18: Electronic Board Messages
English version V0516 3. ELECTRONIC BOARD MESSAGES Alert 1: PT100 unplugged Alert 2: Platen safety device Alert 3: Triac 1 short-circuited Alert 4: Triac 1 control out of order Alert 5: Triac 1 relay short-circuited Alert 7: Clock battery Alert 8: Cylinder PR245 lift action Alert 9: Cylinder PR245 lowering action Alert 11: Machine cylinder manual lift Alert 12: Heat platen timed out... -
Page 19: Troubleshooting Tips
English version V0516 TROUBLESHOOTING TIPS The machine must be switched off and locked and tagged prior to any service repair work (electric and pneumatic power switched off). The heat platen can cause burns. Check that the platen temperature reading on the display panel is below 25°... -
Page 20: Maintenance Log
English version V0516 MAINTENANCE LOG THE FOLLOWING CHECKS AND MAINTENANCE PROCEDURES SHOULD BE PERFORMED AT REGULAR INTERVALS TO ENSURE THAT YOUR PRESS REMAINS IN GOOD WORKING ORDER AND CONTINUES TO PROVIDE RELIABLE SERVICE Condition Heating Number Pressure Air filter Cylinder Replaced Date of foam...
