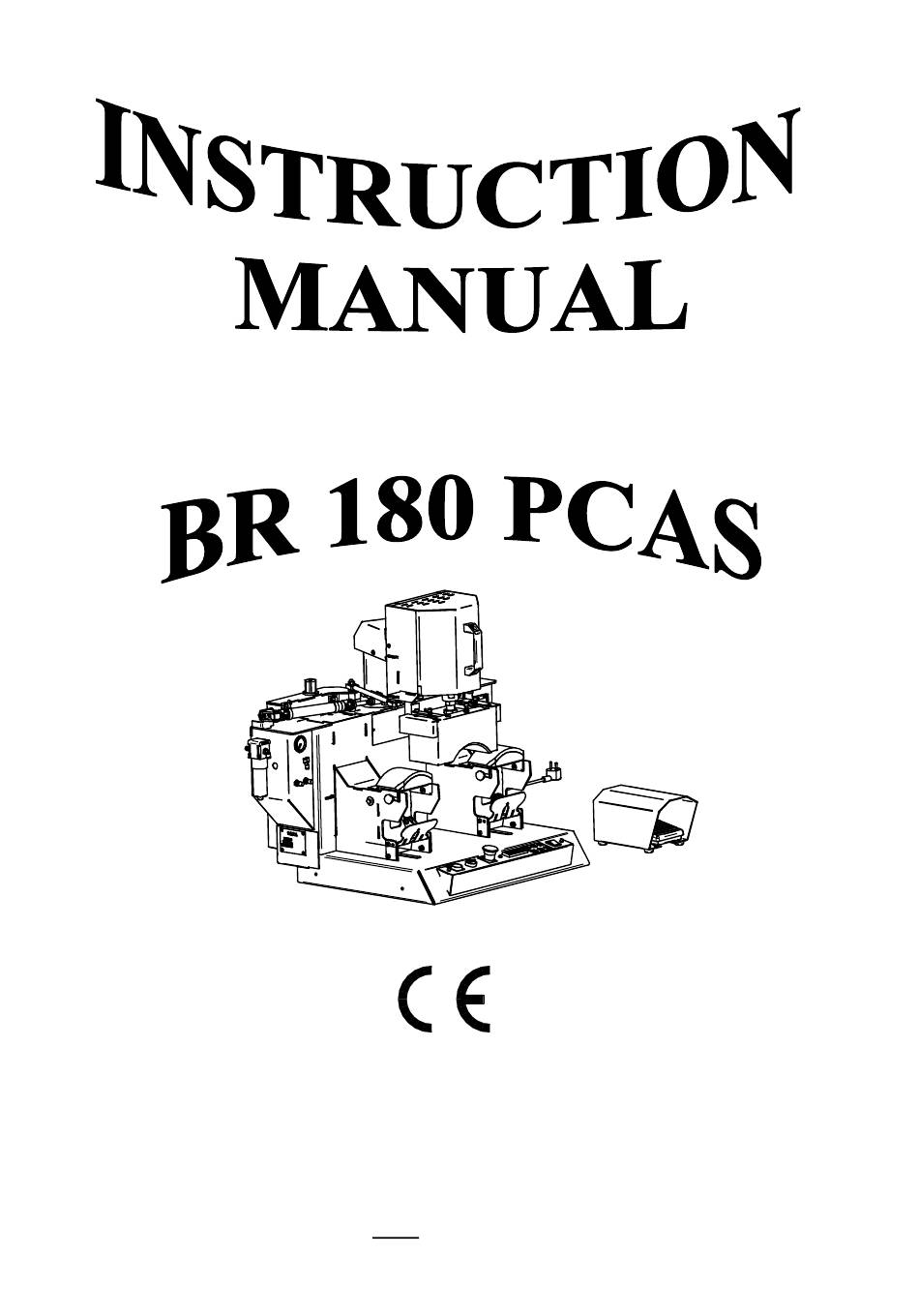

- Page 1 ® SEFA France ® S.E.F.A Z.I PASTABRAC - B.P 44 11260 ESPERAZA FRANCE Tel :33 (0)4.68.74.05.89 - Fax : 33.(0)4.68.74.24.08 www.sefa.fr E Mail : contact@sefa.fr...
-
Page 2: Table Of Contents
® SEFA France SUMMARY CONDITIONS OF GUARANTEE .............................2 SPECIFICATIONS................................3 III. GENERALITIES ................................4 USE OF THE MACHINE .............................5 SAFETY ..................................5 INSTALLATION ................................7 DESCRIPTION OF THE RUNNING CYCLE .......................7 SERVICE..................................8 PARTS SUBJECTED TO WEAR AND TEAR ......................8 REMPLACEMENT OF USED PARTS ..........................9 MAINTENANCE ................................9... -
Page 3: Conditions Of Guarantee
® SEFA France CONDITIONS OF GUARANTEE • The guarantee period starts the day of putting the equipment into service at the user’s place, for a duration of one year and for a common use of 8 hours per day. •... -
Page 4: Specifications
® SEFA France SPECIFICATIONS Poids en ordre de marche / Weight in running order 155 kg Hauteur / Height 570 mm Profondeur / Depth 700 mm Largeur / Width 970 mm Dimension du plateau / Dimension of the heating plate 180 x 80 mm Alimentation électrique / Electric power supply... -
Page 5: Generalities
® SEFA France III. GENERALITIES Pressure regulator Pressing jack (reducer) Manometer Air filter Heating plate with security cover Red button stretcher Foot pedal stretcher Default Reset Emergency Display + On / Off Power 3-positions stop tactile screen button Bracket rotation... -
Page 6: Use Of The Machine
France IV. USE OF THE MACHINE The BR 180 PCAS press was designed for transfer application of all qualities in great mass production. This equipment was tested in our workshops to obtain a one-year guarantee against any manufacturing vice. The adjustments (pneumatic, electric and mechanic) carried out by our technicians (in workshop or in situ) as well as the securities introduced on the machine must not be modified in any case. - Page 7 They must be kept in place and in good condition during normal operation. The BR 180 PCAS is equipped with safety devices protecting the operator from any risk of pinching. The main safety elements are: The heating plate cover It is linked to an electronic card by two cables.
-
Page 8: Installation
® SEFA France 2. INSTALLATION USE BY QUALIFIED STAFF ONLY Do not manipulate the machine by the plates! Unpack the machine from its box. Place it on a stable table manipulating it by its frame. After having properly positioned the equipment on its working place: •... -
Page 9: Service
® SEFA France SERVICE USE BY QUALIFIED STAFF ONLY ANY SERVICE INTERVENTION MUST BE DONE WHEN THE MACHINE IS OFF AND LOCKED (ELECTRIC AND PNEUMATIC ENERGIES UNPLUGGED) It is recommended to have the following tools within reach: End and cruciform screwdriver... -
Page 10: Remplacement Of Used Parts
Leave to settle overnight at room temperature with slight pressure and without heat. 3. MAINTENANCE The heal seal presses SEFA require hardly any maintenance. To ensure a good running, follow the preventive instructions indicated below: Do not heat up objects which could deteriorate or even cut the silicone rubber or damage the teflon... -
Page 11: Possible Breakdowns
® SEFA France 4. POSSIBLE BREAKDOWNS USE BY QUALIFIED STAFF ONLY a) ELECTRICAL BREAKDOWNS POSSIBLE SYMPTOMS REPAIRS BREAKDOWNS The fuses are out of order If no light on the press goes on, check the fuse, change it if necessary. situated in a casing next to the power cable GENERAL FUSE plug (5 A). -
Page 12: Press Settings
® SEFA France VI. PRESS SETTINGS UTILISATION PAR DU PERSONNEL QUALIFIE 1. TEMPERATURE SETTINGS / PRESSURE TIME These parameters must be programmed in the control electronic card thanks to the keyboard. a) TEMPERATURE SETTING (See instruction manual REG 2000) b) TIME SETTING (See instruction manual REG 2000) 2. -
Page 13: Heating Element
® SEFA France VII. HEATING ELEMENT USE BY QUALIFIED STAFF ONLY CAUTION : operation to be done on cold plate Protections and security devices should not be modified. They must be put together again in case of possible removal for maintenance. -
Page 14: Implantation Of The Equipment
® SEFA France VIII. IMPLANTATION OF THE EQUIPMENT Opened back cover diagram Pressure reducer Jack stop Filter Rotation right jack Main switch + fuse holder Pressure reducer on line Pressing jack distributor Cover elements diagrammatic Connector + Relay Relay Automaton P.E fuse... -
Page 15: Electric And Pneumatic Diagrams
® SEFA France IX. ELECTRIC AND PNEUMATIC DIAGRAMS Page N° 14... - Page 16 ® SEFA France Page N° 15...
- Page 17 ® SEFA France Page N° 16...
- Page 18 ® SEFA France Page N° 17...
- Page 19 ® SEFA France Page N° 18...
- Page 20 ® SEFA France Page N° 19...
