INSTRUCTION MANUAL CLAM 45/54 V ® S.E.F.A Z.I PASTABRAC 11260 ESPERAZA FRANCE Tel :33 (0)4.68.74.05.89 - Fax :33.(0)4.68.74.24.08 E Mail : contact@sefa.fr V12/11... -
Page 2: Conditions Of Guarantee
CONDITIONS OF GUARANTEE • The guarantee period starts the day of putting the equipment into service at the user’s place, materialized by the return of the guarantee bill for a duration of two years, 8h per day meaning about 3000 hours. •... -
Page 3: Table Of Contents
SUMMARY CONDITIONS OF GUARANTEE .............................1 SUMMARY ....................................2 SPECIFICATIONS..................................3 INSTALLATION OF THE MACHINE.............................3 PARTS SUBJECTED TO WEAR AND TEAR.........................3 GENERAL POINTS ..................................4 USAGE ......................................5 CONTROL PANEL ................................5 POWER ON ..................................5 SETTINGS ..................................6 TEMPERATURE ................................6 TIME...................................6 PRESSURE ADJUSTMENT .............................6 MAINTENANCE................................6 CYCLE DESCRIPTION: ................................6 QUICK REPAIR ADVICES ...............................7 ELECTRIC DIAGRAM ................................8 NOTEMAKER .....................................9... -
Page 4: Specifications
SPECIFICATIONS CLAM 45M CLAM 54M Weight in running order 37 kg 40 kg 420 mm Height Depth 740 mm Width 420 mm Plate size 400 x 450 mm 400 x 500 mm Power supply 230 V Single phase + Ground 50/60 Hz... -
Page 5: General Points

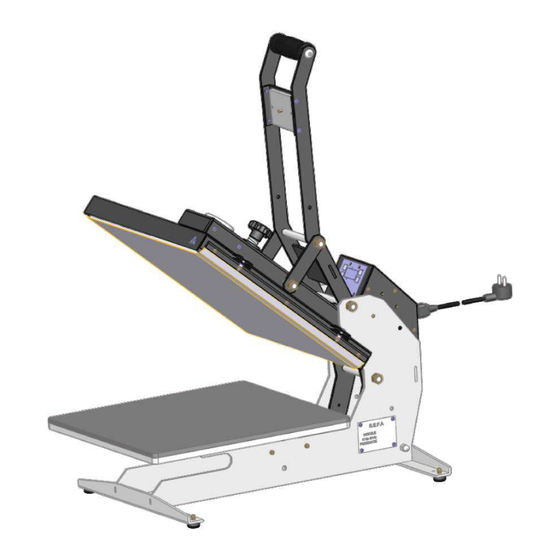

GENERAL POINTS This heat seal press machine is standard to the labour laws to ensure the security of the user. Its design allows it to ensure an intensive production while keeping a total reliability. Pressure Electromagnet adjustment wheel Handle Secondary handle Control panel Heating plate... -
Page 6: Usage
USAGE • It is recommended to read carefully the “instruction manual” before you start any pressing operation. • The press will have to be used by a qualified person who will have been informed of the risks which can be caused by misuse of the equipment. -
Page 7: Settings
3. SETTINGS a) TEMPERATURE • Push twice the selection key. • Push the Up key to increase the temperature. • Push the Down key to decrease the temperature. b) TIME • Push one on the selection key • Push the Up key to increase the time. •... -
Page 8: Quick Repair Advices
QUICK REPAIR ADVICES All repair and maintenance operations should be done when the machine is turned off and unplugged from the main electric power supply. The heating element can cause burns. The user must ensure the temperature is below 25° C on the display, before an y intervention. SYMPTOMS POSSIBLE BRAKDOWNS REPAIRS... -
Page 9: Electric Diagram
ELECTRIC DIAGRAM Page N° 8... -
Page 10: Notemaker
NOTEMAKER ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ Page N° 9...
