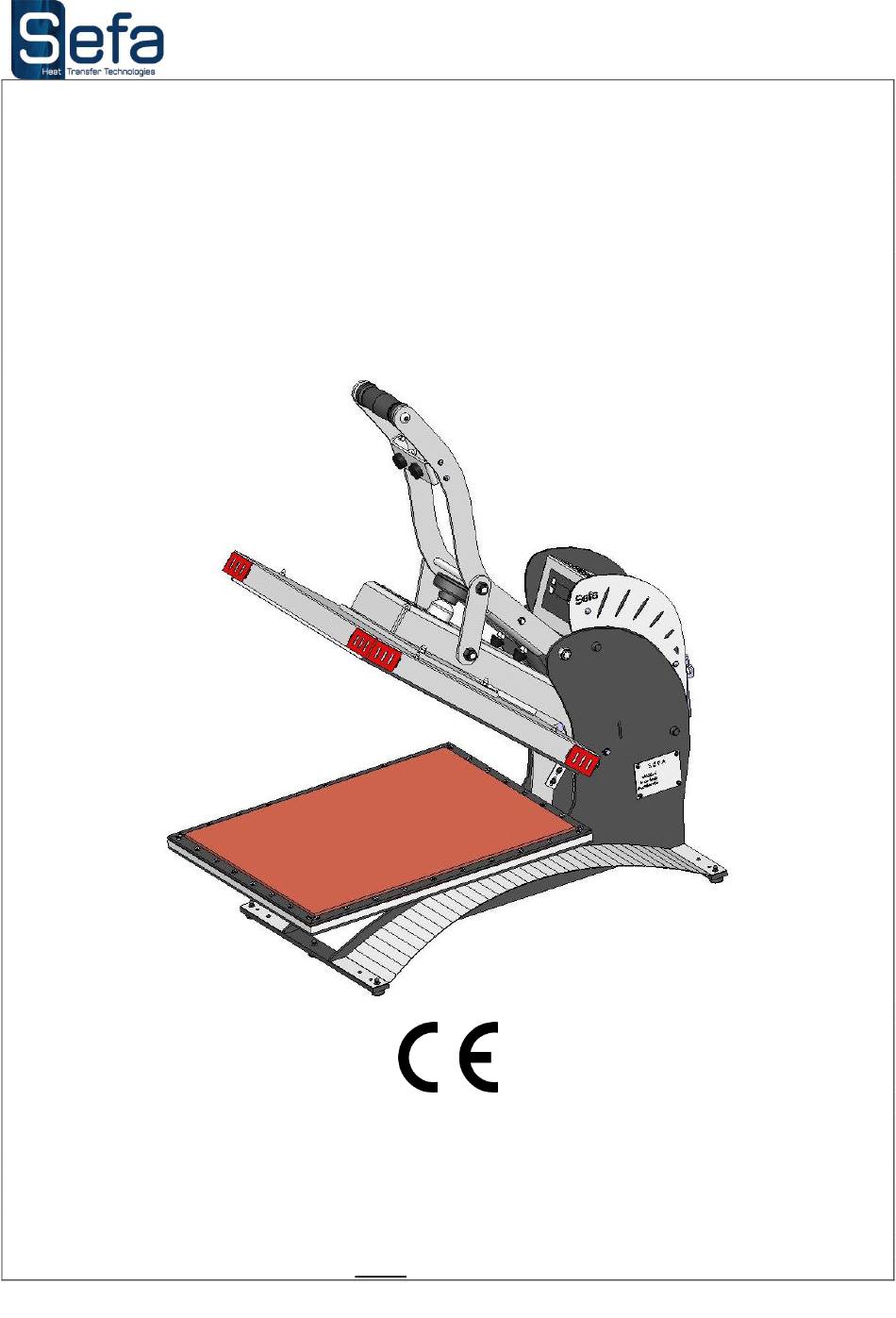

- Page 1 INSTRUCTION MANUAL AIR CLAM X ® S.E.F.A Z.I PASTABRAC 11260 ESPERAZA FRANCE Tel :33 (0)4.68.74.05.89 - Fax :33.(0)4.68.74.24.08 E Mail : contact@sefa.fr...
-
Page 2: Conditions Of Guarantee
V0412 CONDITIONS OF GUARANTEE The guarantee period starts the day of putting the equipment into service at the user’s place, materialized by the return of the guarantee bill for a duration of two years, 8h per day meaning about 3000 hours. ... -
Page 3: Table Of Contents
V0412 SUMMARY CONDITIONS OF GUARANTEE ............................. 1 SUMMARY ....................................2 SPECIFICATIONS ..................................3 INSTALLATION OF THE MACHINE ............................. 3 PARTS SUBJECTED TO WEAR AND TEAR ......................... 4 GENERAL POINTS ..................................5 ELECTRONIC BOX ................................... 6 USAGE ......................................7 CONTROL PANEL ................................7 POWER ON .................................. -
Page 4: Specifications
V0412 SPECIFICATIONS 61 kg Weight in running order 40 kg Height 534 mm Depth 878 mm Width 443 mm Plate size 400 x 500 mm Power supply 230 V Single phase + Ground 50/60 Hz Power 2500 W Amperage 11 A Thermo regulator Accurate to +/- 2%... -
Page 5: Parts Subjected To Wear And Tear
V0412 PARTS SUBJECTED TO WEAR AND TEAR For any order: precise the description, la reference and the quantity Reference Description Quantity CAR-CO1-EV0 ELECTRONIC CARD REL-OM5 HEAT RELAY RES-682 HEAT ELEMENT MICA 400x500 2500W SON-189 SENSOR FIN-231 MICROSWITCH WITH TONGUE MOU-540 SILICONE RUBBER 400x500 mm RES-BI2 GAS SPRING... -
Page 6: General Points
V0412 GENERAL POINTS This heat seal press machine is standard to the labour laws to ensure the security of the user. Its design allows it to ensure an intensive production while keeping a total reliability. Handle Height adjustment Control wheel panel Heating plate Silicon rubber... -
Page 7: Electronic Box
V0412 ELECTRONIC BOX Timer Control panel Relay General Switch and fuse Electronic card Electro distributor Gate Regulator Filter Microswitch Page N° 6... -
Page 8: Usage
V0412 USAGE It is recommended to read carefully the “instruction manual” before you start any pressing operation. The press will have to be used by a qualified person who will have been informed of the risks which can be caused by misuse of the equipment. -
Page 9: Settings
V0412 3. SETTINGS a) TEMPERATURE Push twice the selection key (The T° LED indicator blinking) Push the Up key to increase the temperature. Push the Down key to decrease the temperature. b) TIME Push one on the selection key (The Time LED indicator blinking) ... -
Page 10: Cycle Description
V0412 CYCLE DESCRIPTION: Turn on the machine by switching the power button. Adjust the desired temperature at 180°C (or depending on the type of transfer) See SETTINGS § 3.a). Adjust the time at 15 Sec (or depending on the type of transfer) See SETTINGS §3.b). ... -
Page 11: Quick Repair Advices
V0412 QUICK REPAIR ADVICES All repair and maintenance operations should be done when the machine is turned off and unplugged from the main electric power supply. The heating element can cause burns. The user must ensure the temperature is below 25°C on the display, before any intervention. SYMPTOMS POSSIBLE BRAKDOWNS REPAIRS... -
Page 12: Diagram
V0412 DIAGRAM Page N° 11... -
Page 13: Notemaker
V0412 NOTEMAKER ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ ------------------------------------------------------ Page N° 12...
