  • Page 1 Operating Manual RISH Eine+ 2-60-006-00-00510_Rev_E 3/2018...

  • Page 2: Table Of Contents

    PROGRAMMABLE DC DPM DC Voltmeter : Eine Voltage DC Ammeter : Eine Current Installation & Operating Instructions Section Contents Introduction Measurement Reading Screens Programming Setup Screens 3.1.1 Meter Type Selection 3.1.2 Normal Meter 3.1.2.1 Input start value 3.1.2.2 Display end value 3.1.2.3 Display start value 3.1.2.4 Bent function selection 3.1.2.5 Input bent value...

  • Page 3: Introduction

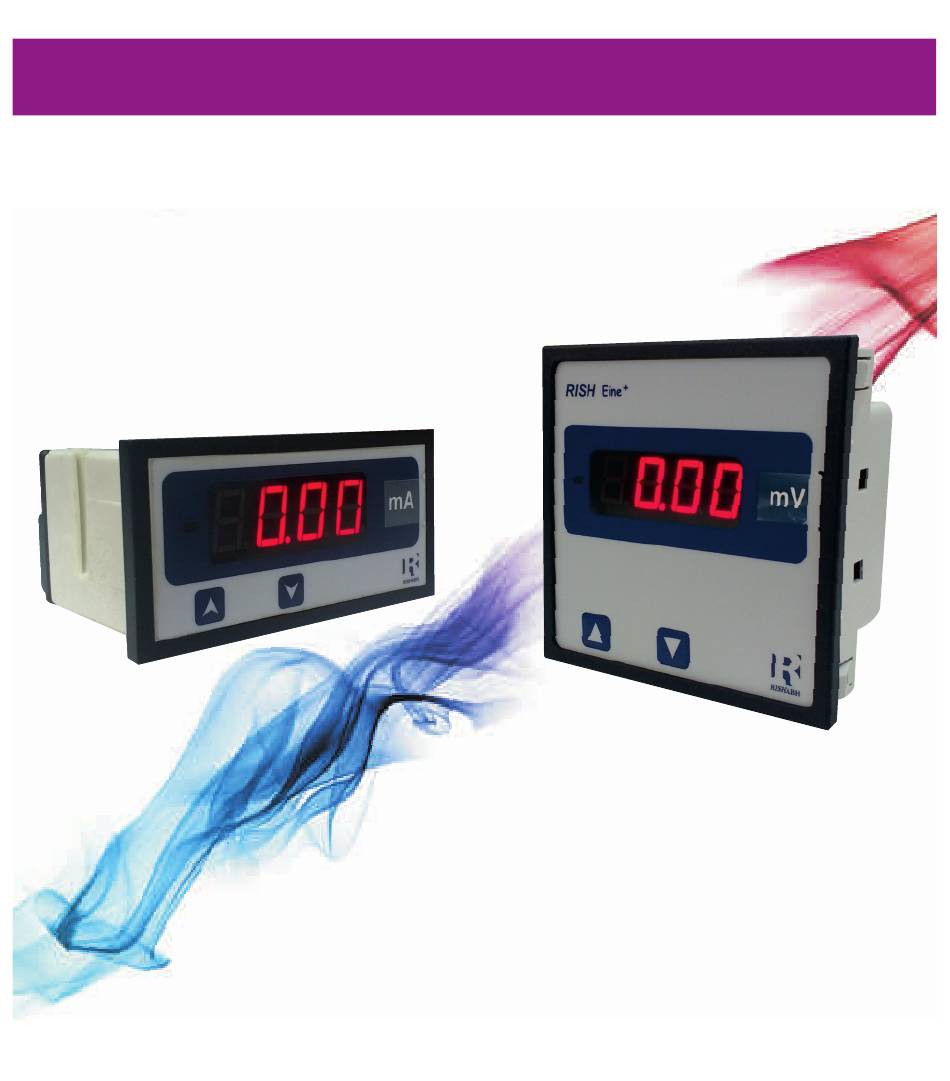

    Available Models : 2. Eine+ mA 4. Eine+ A 1. Eine+ mV 3. Eine+ V 1. Introduction The Eine+ is a series of panel mounted 96 x 96mm and 48x96 Digital Panel Meters for the measurement of DC Voltage and Current. The instrument integrates accurate measurement technology.

  • Page 4: Measurement Reading Screens

    2. Measurement Reading Screen In normal operation the user is presented with the measurement reading screens. These screens may be scrolled through keys one at a time in incremental order by pressing the key and in decrementing order by pressing key.
  • Page 5 Eine+ Setup Parameter Screen Press both keys to enter Setup Exit from setup Parameter to Main Display tYPE (Meter Type) (Sec 3.1.1) (normal display) (PF display) (Sec 3.1.2) (Sec 3.1.3) inP.S inP.S (Input start) (Input start) (Sec 3.1.2.1) (Sec 3.1.3.1) dSP.E PF-E (Display end value)

  • Page 6: Programming

    3. Programming The following sections comprise step by step procedures for configuring the meter for individual user requirements. To access the set-up screens press and hold the “ ” and “ ” keys simultaneously. This will take the User into the Meter Type Screen. (section 3.1.1) 3.1 Setup Screens 3.1.1 Meter type This screen is used to set the meter type.

  • Page 7: Normal Meter

    3.1.2 Normal Meter 3.1.2.1 Input Start Value (inP.S) This screen allows the user to set the Start value of Input. The Start value can be set from -100% to 20% of Input End value for all models, except for 500 & 1000V models in which Start value range is from 0 to 20% of Input End value, where Input End value is the Nominal Input value of the meter.
  • Page 8 3.1.2.2 Display End Value (dSP.E) This screen allows the user to set the Display End value which will correspond to the Input End value. The End value can be set from -9999 to -10 or +10 to +9999 counts. Initially,‘dSP.E’ message is displayed on screen following which user can start editing Display End value by pressing the “...

  • Page 9: Input Start Value

    3.1.2.3 Display Start Value (dSP.S) This screen allows the user to set the Display Start value which will correspond to the Input Start value. If the Display End value is negative then Start value can be set from 90% of End value to +9999 counts, otherwise if the End value is positive then Start value can be set from -9999 to 90% of End value.

  • Page 10: Bent Function Selection

    3.1.2.4 Bent Function Selection This screen allows the user to enable or disable the bent characteristics function. This is applicable only to Normal meter type, and not to PF meter. Initially, ‘bEnt’ message is displayed on screen. On pressing the “ ”...

  • Page 11: Display Bent Value

    Pressing the “ ” key will set the first digit and advance the operation to next digit. Similarly, user can edit the remaining three digits. After all four digits have been set, pressing the “ ” key will advance to the Input Bent value confirmation mode.

  • Page 12: Power Factor Meter

    3.1.3 Power Factor Meter Capacitive Inductive Phasor Diagram Capacitive Inductive PHASOR DIAGRAM 3.1.3.1 Input Start Value (inP.S) Refer section 3.1.2.1. 3.1.3.2 PF End Value (PF-E) This screen allows the user to set the PF End value which will correspond to the Input End value.

  • Page 13: Input Start Value

    After entering the edit mode, by pressing the “ ” key user can turn the ‘-’ symbol On or Off. If ‘-’ symbol is On then PF End value will be set as negative else it will be positive. ‘L’ (inductive) or ‘C’ (capacitive) are automatically displayed depending on the quadrant in which value is being set.

  • Page 14: Other Display Indications

    After entering the edit mode, by pressing the “ ” key user can turn the ‘-’ symbol On or Off. If ‘-’ symbol is On then PF Start value will be set as negative else it will be positive. ‘L’ (inductive) or ‘C’ (capacitive) are automatically displayed depending on the quadrant in which value is being set.

  • Page 15: Installation

    4. Installation Mounting of EINE+ is featured with easy “Clip- in” mounting. Push the meter in panel slot (size 92 x92 mm), it will click fit into panel with the four integral retention clips on two sides of meter. If required Additional support is provided with swivel screws (optional) as shown in figure.
  • Page 16 The Rish Eine+ DC DPM should be mounted in a reasonably stable ambient temperature and where the operating temperature is within the range -10°C to 55°C . Vibration should be kept to a minimum and the product should not be mounted where it will be subjected to excessive direct sunlight.

  • Page 17: Emc Installation Requirements

    4.1 EMC Installation Requirements This product has been designed to meet the certification of the EU directives when installed to a good code of practice for EMC in industrial environments, e.g. 1. Screened output and low signal input leads or have provision for fitting RF suppression components, such as ferrite absorbers, line filters etc., in the event that RF fields cause problems.

  • Page 18: Case Dimensions And Panel Cut-Out

    4.2 Case Dimensions and Panel Cut Out 92mm+0.8 27 mm 96 mm Front Display Area Panel Cutout 6 mm 35 mm MAX PANEL THICKNESS 0.18”,5mm For 96 x 96 mm 66.6mm 92mm+0.8 96.0mm Display Area 48.0mm 58.1mm Mounting Position Installation Cutout For 48 x 96 mm 4.3 Wiring Input connections are made directly to screw-type terminals with indirect wire...

  • Page 19: Auxiliary Supply

    4.4 Auxiliary Supply Eine+ should ideally be powered from a dedicated supply. 4.5 Fusing It is recommended that all voltage lines are fitted with 1 amp HRC fuse. 4.6 Earth/Ground Connections For safety reasons, panels and accesoriess should be grounded in accordance 5.

  • Page 20: Specifications

    6. Specifications : Measuring Range (Eine Voltage) : Nominal Input Voltage Ranges -75...0...75 mV, -150...0...150 mV, -5...0...5 V, -10...0...10 V 0...500 V, 0...1000 V Max continuous input voltage 120% of nominal value Input Current < 300 uA Measuring Range (Eine Current) : -10...0...10 mA, -20...0...20 mA, 4...20 mA, Nominal Input Current Ranges -1...0...1 V, -5...0...5 V...
  • Page 21 Reference conditions for Accuracy : Reference temperature 23 C + 2 C Auxiliary Supply Voltage Rated value ±1% Auxiliary Supply Frequency Rated value ±1% Accuracy : Voltage (mV / V) <0.5% of Display End value ± 1 digit <0.5% of Display End value ± 1 digit Current (mA / A) Ambient Temperature ±3 °C...
  • Page 22 Safety : Pollution Degree Installation Category High Voltage Test 2.2 kV AC, 50 Hz for 1 minute Environmental conditions : Operating temperature -10 to 55 C Storage temperature -25 to 70 C Relative humidity 0 .. 90 % (Non condensing) Warm up time Minimum 3 minute Shock...
  • Page 23 For 48 x 96mm Bezel Size (DIN 43718) 48mm X 96mm 45 + 0.8mm X 92 + 0.8mm Panel Cut-Out <75mm Overall Depth Weight 250 grams Approx. The Information contained in these installation instructions is for use only by installers trained to make electrical power installations and is intended to describe the correct method of installation for this product.
