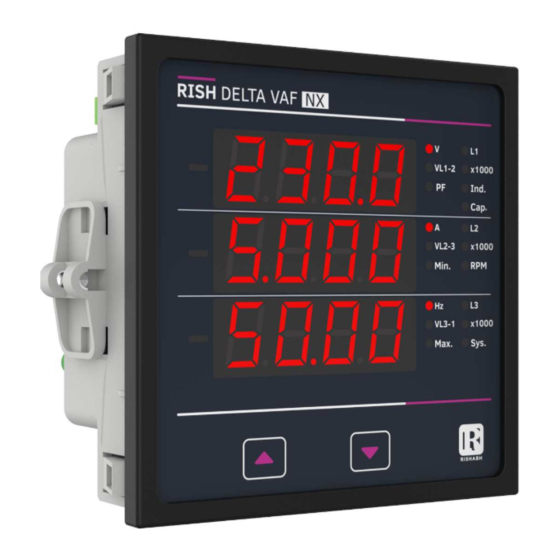

RISH DELTA VAF NX
AMAN-00IM-0118_Rev.D - 11/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELTA VAF NX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rish DELTA VAF NX

Summary of Contents for Rish DELTA VAF NX

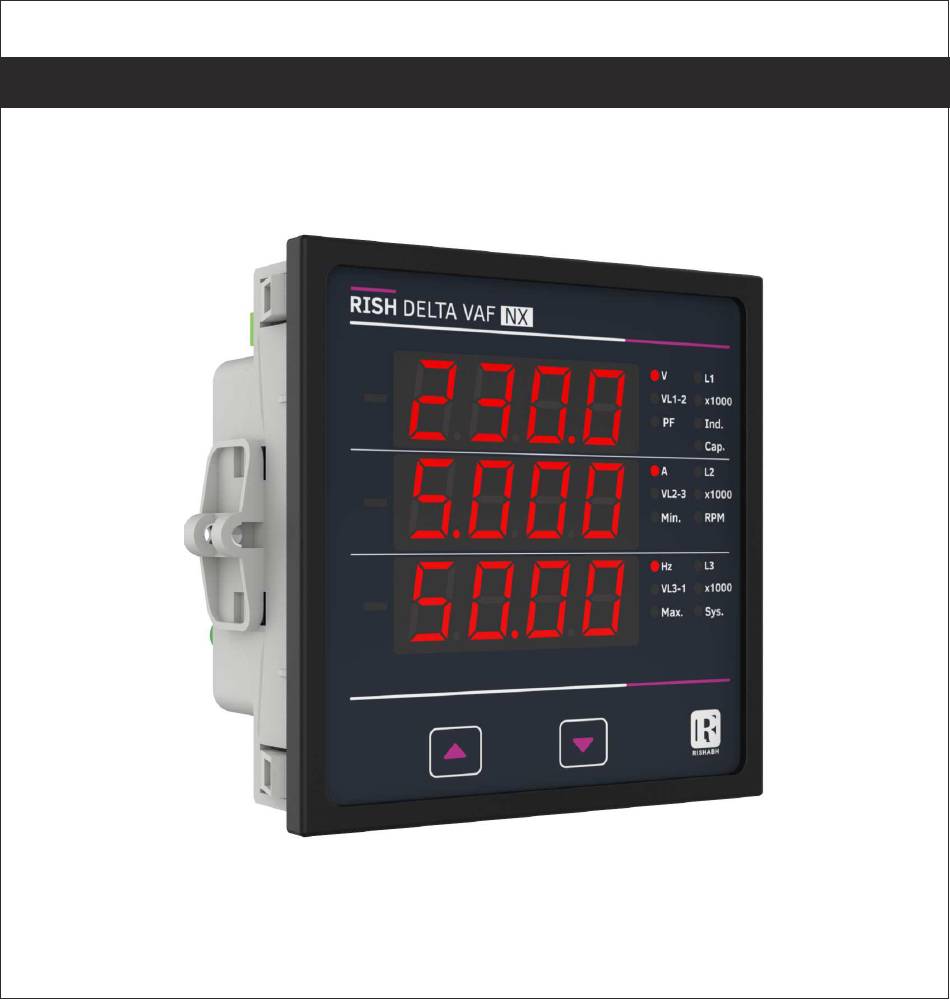

  • Page 1 Operating Manual RISH DELTA VAF NX AMAN-00IM-0118_Rev.D - 11/2023...
  • Page 2 DIGITAL MULTIFUNCTION INSTRUMENT Programmable Multi-function Digital Panel Meter Installation & Operating Instructions Section Contents Introduction Measurement Reading Parameters Programming 3.1 Password Protection 3.2 Menu Selection 3.2.1 System Parameter Selection Screen 3.2.1.1 System Type 3.2.1.2 Potential Transformer Primary Value 3.2.1.3 Potential Transformer Secondary Value 3.2.1.4 Current Transformer Primary Value 3.2.1.5 Current Transformer Secondary Value 3.2.1.6 Noise Cutoff...
  • Page 3 3.2.4.1.1.1.4 Hysteresis selection 3.2.4.1.1.1.5 Energizing delay time 3.2.4.1.1.1.6 De-energizing delay time 3.2.5 Quit screen Run-Hour On-Hour Number of Interruption Negative Sign Indication Relay Output 8.1 Limit Switch RS 485 (ModBus) Output 9.1 User Assignable Modbus Register Phasor Diagram Installation 11.1 EMC Installation Requirements 11.2 Case Dimensions and Panel Cut-out 11.3 Wiring...
  • Page 4 1. Introduction The Multifunction Meter is a panel mounted 96 x 96mm DIN Quadratic Digital Panel Meter, which measures important electrical parameters in 3P4W, 3P3W, 1P3W (Split Phase) and 1P2W networks and replaces the multiple analog panel meters. It measures electrical parameters like AC Voltage, Current, Frequency, Power Factor, The instruments comes with 3 Line 4 Digits ultra bright LED display with clearly visible annunciated units with bright LED Indications.
  • Page 5 :- UP Key scrolls through L1 Voltage, L2 Voltage, L3 Voltage, L12 Voltage, L23 Voltage, L31 Voltage, L1 Current, L2 Current, L3 Current, Neutral Current , System RPM, System Frequency, L1 Power Factor, L2 Power Factor, L3 Power Factor, System Voltage, System Current, System Power Factor, Maximum System Voltage, Maximum System Current, Minimum System Voltage, Minimum System Current, Run hour, On...
  • Page 6 2. Measurement Parameters TABLE 1: Measured Parameters √ : Available x : Not Available 3 Phase 4 3 Phase 3 1 Phase 2 1 Phase 3 Parameter Wire Wire Wire Wire     System Voltage    ...
  • Page 7 Setup Parameter Screens CodE (PassWord ) Exit from setup parameter to Main Display SEL (Select) " " " " " " " " " " " " " " quit SYS PArA rESEt Ser PArA Out PArA (Exit Menu) (Reset Parameter) (System Parameter) (Serial Comm.Parameter) (Output Parameter)
  • Page 8 3. Programming The following sections comprise step by step procedures for configuring the Multifunction Meter for individual user requirements. To access the set-up screens press and hold the “ ” and “ ” key simultaneously for 5 seconds. This will take the user into the password protection entry stage (section 3.1). 3.1.
  • Page 9 Enter Password, fourth Pressing the “ ” key to advance the operation digit entered, awaiting to the next digit and sets the first digit, in this case to “2” verification of the password. New/Change Password, first digit entered, prompting for second digit.
  • Page 10 New Password Confirmed 3.2.3 Reset Parameter Selection Screen Pressing the “ ” key will return to the “New/Change This screen is used to reset Password ”. the different parameters. Pressing the “ ” key will K r h Pressing the “ ” key allows advances to the Menu the user to reset different Selection screen (See...

  • Page 11: Potential Transformer Primary Value

    Initially the “multiplier must be selected, pressing the 3.2.1 System Parameters Selection “ ” key will move the decimal point position to the 3.2.1.1 System Type right until it reaches # # #.# after which it will return to #. # # #. This screen is used to set the Pressing the “...

  • Page 12: Potential Transformer Secondary Value

    When the least significant digit has been set pressing If the scalling is not correct, pressing the “ ” key the “ ” key will advance to the Potential Transformer will return to the “Potential Transformer Secondary Primary Value confirmation stage. Value Edit screen.

  • Page 13: Auto Scrolling

    3.2.1.5 Current Transformer Secondary Value Pressing the “ ” key will enter the Auto Scrolling This screen is used to set the V Ar h Screen edit mode and value for Current Transformer toggle the status ‘Yes’ and Secondary value, “5” for 5A K r h ‘No’.

  • Page 14: Rs 485 Baud Rate

    V A h 3.2.2 Communication Parameter Selection 3.2.2.2 RS 485 Baud Rate 3.2.2.1 Address Setting This screen allows the user This screen applies to the RS 485 to set Baud Rate of RS 485 port. output only. This screen allows the The values displayed on user to set RS 485 parameter for screen are in kbaud.
  • Page 15 Pressing the “ ” key will Reset option “Lo” select: (Reset set the value. Min parameters). Pressing “ ” key will select the value and Pressing the “ ” key again advance to the reset all Low will jump to the Serial parameters.
  • Page 16 3.2.4.1.1.1.1 Assignment of Limit Output L1 L2DM L1 L2DM 3.2.4. Output Option Selection Menu to Parameter 3.2.4.1 Configuration of Output W Ø This screen is for Limit output mode selection. It K r h W Ø This screen applies to the allows the user to set Limit output corresponding Relay Output option Selection.

  • Page 17: Trip Point Selection

    3.2.4.1.1.1.3 Trip Point Selection Entered the value for third L1 L2DM digit. This screen applies to the Trip Point Selection. Press the “ ” key to advance This screen allows the user to set Trip point for K r h to next Screen the meter.

  • Page 18: De-Energizing Delay Time

    The second digit entered, Pressing “ ” key accepts the prompt for third digit present value and “ ” key (Blinking digit denotes advance to Configuration of that value will be output. (See section 3.2.4.1) changing).Use the “ ” key Pressing the “...

  • Page 19: Number Of Interruption

    . Number of Interruption 7. Negative Sign Indication If the segment glows, it indicates negative This screen displays the sign of displayed total no. of times the auxiliary parameter. supply was interrupted. Even if the auxiliary supply is When Power factor lies interrupted count will be in second and third maintained in internal memory.
  • Page 20 TABLE 2 : Parameter for Limit Output Parameter for Limit Relay Trip Point Range Parameter 3P4W 3P3W 1P2W 1P3W Hi-En or Hi-DEn Lo-En or Lo-DEn     None     Volts 1 10 - 120 % 10 - 100 % ...
  • Page 21 Trip point 8. Relay output (Optional) Trip point can be set in the range as specified in table 8.1 Limit Switch 2 of nominal value for Hi-Alarm & 10% to 100 % of Limit switch can be used to monitor the measured nominal value for Lo-Alarm.
  • Page 22 1) Hi alarm & Energised relay 2) Hi alarm & De-energise relay Relay Energise Relay De-energise Relay De-energise Relay Energise Input Input Trip point Trip point Hysterisis point Hysterisis point Time Time 3) Lo alarm & Energised relay 4) Lo alarm & De-energise relay Relay De-energise Relay Energise Relay Energise...
  • Page 23 The each byte in RTU mode has following format: 8-bit binary, hexadecimal 0-9, A-F 2 hexadecimal characters contained in each 8-bit field of the message 4 bytes (32 bits) per parameter. Format of Data Bytes Floating point format ( to IEEE 754) Most significant byte first (Alternative least significant byte first) 2 byte Cyclical Redundancy Check (CRC) Error Checking Bytes...
  • Page 24 Note : Number of registers = Number of parameters x 2 Each Query for reading the data must be restricted to 40 parameters or less. Exceeding the 40 parameter limit will cause a ModBus exception code to be returned. Query : 02(Hex) 30 (Hex) 0A (Hex) 01 (Hex) 04 (Hex)
  • Page 25 Table 3 : Continued Modbus Modbus Read only parameter value 3P4W 3P3W 1P3W 1P2W 3X Add. 4X Add.     30043 40043 Volt Avg     30045 40045 Volt Sum     30047 40047 Current Avg ...
  • Page 26 Table 3 : Continued Modbus Modbus Read only parameter value 3P4W 3P3W 1P3W 1P2W 3X Add. 4X Add.     31333 41333 Max Current L1     31335 41335 Max Current L2     31337 41337 Max Current L3 ...
  • Page 27 Accessing 4 X register for Reading & Start Address High : Most significant 8 bits of starting Writing address of the parameter requested. Start Address low : Least significant 8 bits of starting Each setting is held in the 4X registers. ModBus code address of the parameter requested.
  • Page 28 Example : Writing System type Response: System Type System type : Start address = 1772 (Hex) (3 phase 4 wire = 3) Number of registers = 02 01 (Hex) Query:( Change System type to 3P3W = 2 ) Device Address 03 (Hex) Function Code Device Address...
  • Page 29 Response: 01 (Hex) Device Address Start address high : Most significant 8 bits of starting address of Function Code 10 (Hex) the parameter requested. Start address low : Least significant 8 bits of starting address of Start Address High 17 (Hex) the parameter requested.
  • Page 30 Explanation for 4 X register Address Parameters Description This address is used to set the System Type. Write one of the following value to this address. 1 =1 Phase 2 Wire 4=1 Phase 3 Wire 46003 System Type 2 = 3 Phase 3 Wire 3 = 3 Phase 4 Wire Writing any other value will return error.
  • Page 31 Enables to set No. of poles of a Generator of which RPM is to be measured and to which the instrument is connected to monitor its 46039 No Of Poles parameters. setting range is 2 to 40 (multiples of 2 only) This address is used to activate or de-activatethe auto scrolling.

  • Page 32: User Assignable Modbus Registers

    This address is used to set the De-Energizing delay between 1 to 46067 Limit 1 Off Delay 10 . Writing any other value will return an error. 46085 Version No. This Address shows The firmware version of device Table 6: Limit Configuration Select Table 5: RS 485 Set-up Code Baud Rate Parity...
  • Page 33 Table 7 : User Assignable 3X & 4X Data Registers Address Address Modbus Start Address (Hex) Assignable Register (3X) (4X) High Byte Low Byte Assignable Register 1 35201 45201 35203 45203 Assignable Register 2 Assignable Register 3 35205 45205 Assignable Register 4 35207 45207 Assignable Register 5...
  • Page 34 Table 8 : User Assignable mapping register ( 4X registers) Address Modbus Start Address (Hex) Assignable Register (4X) High Byte Low Byte Map Address for Assignable Register 1 405501 Map Address for Assignable Register 2 405502 Map Address for Assignable Register 3 405503 Map Address for Assignable Register 4 405504...
  • Page 35 Response : Number of register Hi : Most significant 8 bits of number of registers requested. 01 (Hex) Device Address Number of register Lo : Least significant 8 bits of number of registers requested. Function Code 10 (Hex) **Note : Two consecutive 16 bit register 15 (Hex) Start Address High represent one parameter.

  • Page 36: Phasor Diagram

    User assignable mapping registers User assignable data registers ( 4X Registers Table11 ) ( 3X, 4X Registers Table 10 ) (Starting Address) (Starting Address) 0x1451 0x1450 0x157D 0x1450 Voltage 2 (0x0002) (16 bit) (16 bit) 0x1453 0x1452 0x157E 0x1452 Power Factor 1 (0x001E) (16 bit) (16 bit) 0x157F...

  • Page 37: Installation

    11. Installation Caution In the interest of safety and functionality this product must be installed by a qualified engineer, abiding by any local regulations. Voltages dangerous to human life are present at some of the terminal connections of this unit. Panel Ensure that all supplies are de-energised before attempting any connection or disconnection.
  • Page 38 11.2 Case Dimension & Panel Cut Out 11.1 EMC Installation Requirements This product has been designed to meet the 96 mm certification of the EU directives when installed to a good code of practice for EMC in industrial environments,e.g. Display 1.

  • Page 39: Earth/Ground Connections

    11.5 Fusing 3P4W UNBALANCED LOAD DIGITAL METERING SYSTEM It is recommended that all voltage lines are 2 5 8 11 1 3 4 6 7 9 13 14 fitted with 1 amp HRC fuse. 11.6 Earth/Ground Connections For safety reasons, CT secondary connections should be grounded in accordance with local regulations.

  • Page 40: Specification

    13. Specification System 3P3W, 3P4W, 1P3W And 1P2W programmable at site Nominal Input Voltage (AC RMS) 288.68VLN (500VLL) System PT Primary Values 100 VLL to 1200 VLL programmable on site (1000 MVA maximum power) (1200 kVLL when CT Primary <= 1002 A) System PT Secondary Values 100 VLL to 500 VLL programmable on site Maximum Continuous Input Voltage...
  • Page 41 Reference conditions for Accuracy Reference Temperature 23 °C + 2 °C Input frequency 50 or 60Hz + 2% Input waveform Sinusoidal (distortion factor 0.005) Voltage Range 40 - 120 % of nominal value Current Range 10 - 120 % of nominal value Input Frequency 50/60 Hz + 2 % Power Factor...
  • Page 42 IP for Water and Dust IEC 60529 Pollution Degree Installation Category Emission CISPR 11 Isolation High Voltage Test All Circuit vs Surface 3.5 kV RMS, 50Hz, 1min Input/AUX vs Others 3.5 kV RMS, 50Hz, 1min Relay/RS485 vs Others 3.3 kV RMS, 50Hz, 1min Input voltage vs Input Current 2.2 kV RMS, 50Hz, 1 min Input vs AUX...
