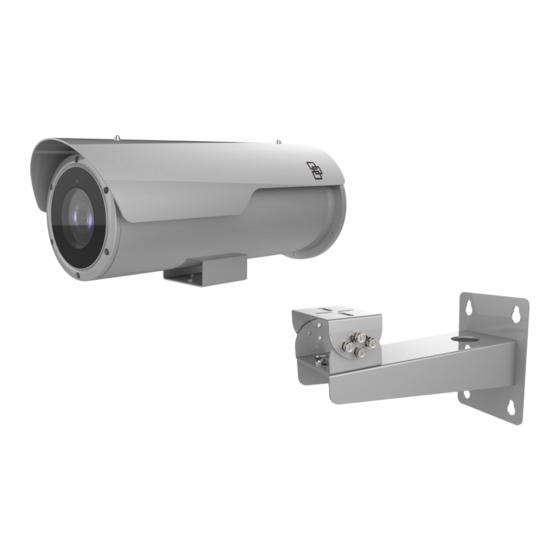

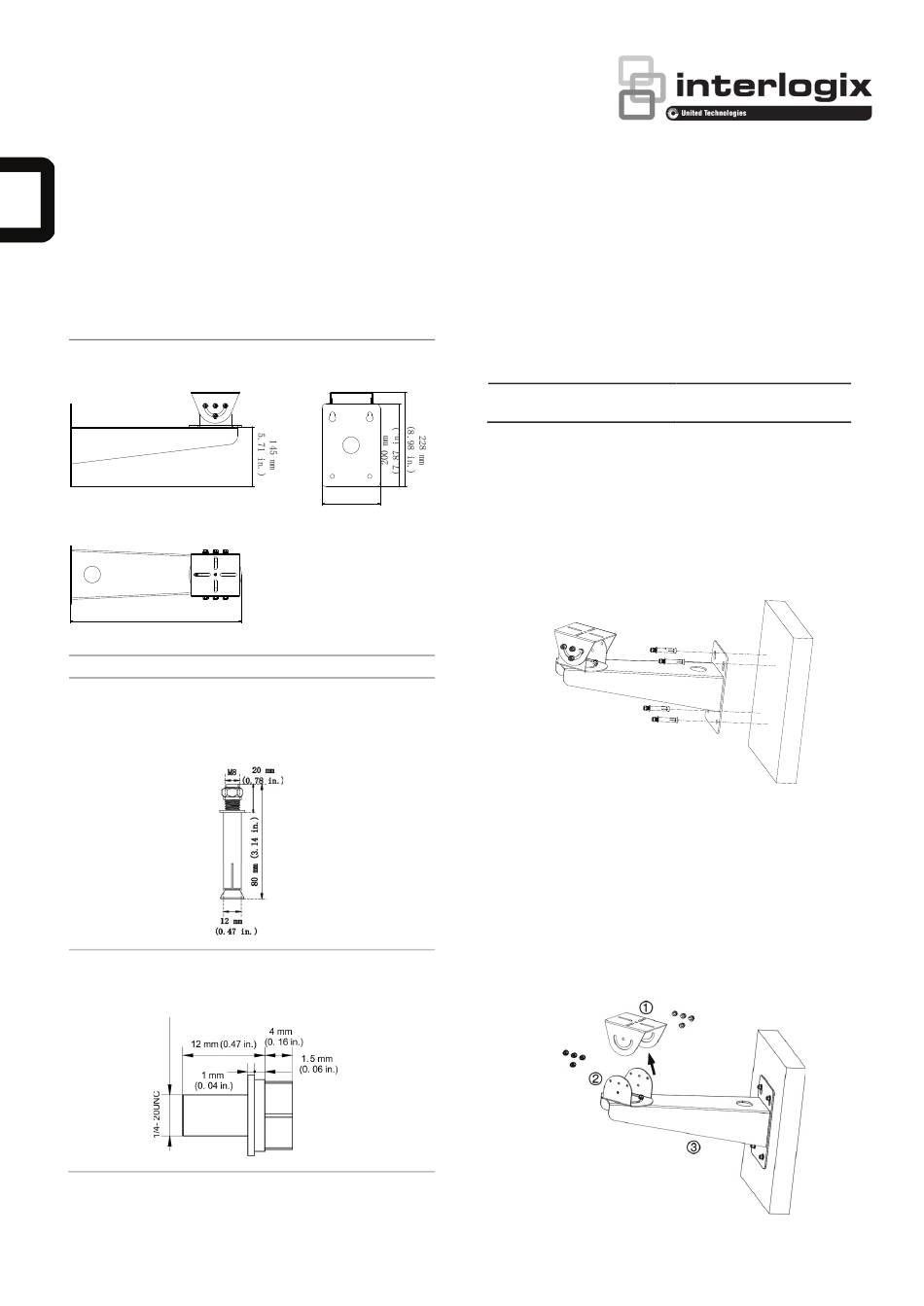

TVB-WBS Stainless Steel Bullet (Box Camera
Housing) Wall Mount Installation Instructions
Specifications
Dimensions:
412.5 × 140 × 228 mm
(16.24 × 5.51 × 8.98 in.)
412.5 mm (16.24 in.)
Weight:
3.80 kg (8.38 lb.)
Accessories:
Expansion anchors: 4 pcs
Used to install the TVB-WBS stainless steel wall mount to the
mounting surface.
Screw A: 4 pcs
Used to install the stainless steel bullet camera to the TVB-WBS
wall mount.
© 2018 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.
140 mm (5.51 in.)
Supported cameras
The stainless steel wall mount can be used with following
cameras:
Stainless Steel Bullet (Box
Camera Housing) Camera:
Installation
To install the stainless steel bullet (box camera housing)
camera to the TVB-WBS:
1.
Mark and drill the mounting holes for the expansion
anchors in the mounting surface. Hammer the supplied M8
expansion anchors into the mounting holes.
2.
The wall mount allows you to adjust the position of the
camera by using the pan (2) and tilt (1) adjust brackets.
You may not need to use all the screws provided to lock
the camera into position, depending on the amount of
range required.
Note: If preferred mount the bullet (box camera housing)
on the wall mount without removing the universal joint
base (2). Use screw A as shown in step 5.
3.
Remove the eight screws that attach the tilt bracket (1) to
the pan bracket (2)
P/N 1073411-EN • REV B • ISS 23APR18
TVB-5801, TVB-5802
