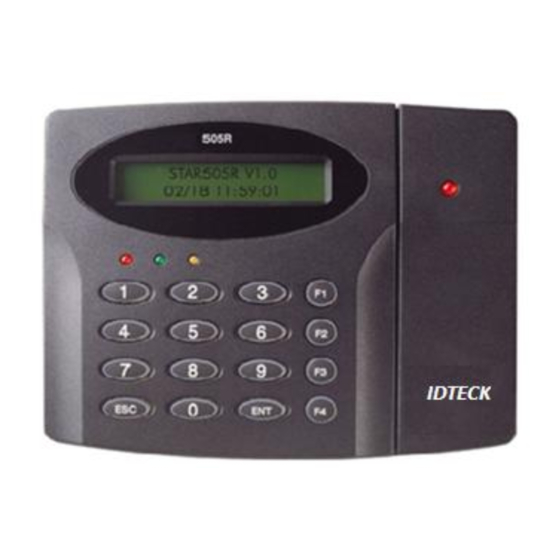

Standalone controller, 505r/finger007 series
Hide thumbs
Also See for 505R:
- User manual (54 pages) ,
- Quick installation manual (21 pages) ,
- Quick install manual (4 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for IDTECK 505R
Summary of Contents for IDTECK 505R
- Page 1 Quick Installation Guide 505R & FINGER007 SERIES STANDALONE CONTROLLER...
- Page 2 Quick Installation Guide 505R Series Standalone Controller 505R, IP505R, SR505, SR505B FINGER007 Series Standalone Controller FINGER007, IP-FINGER007, FINGER007SR, FINGER007SRB...
-
Page 3: Table Of Contents
Quick Installation Guide Table of Contents 1. IDENTIFYING SUPPLIED PARTS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2 2. -
Page 4: Identifying Supplied Parts
Quick Installation Guide 1. IDENTIFYING SUPPLIED PARTS Unpack and check the contents. If any of these parts are missing, contact your distributor. 2. PARTS CODE AND DESCRIPTION 2.1 Rear View ○ Initialization Switch ○ Tamper Switch ○ Communication Indicator LED Initialization Switch ○... -
Page 5: Connection And Color Code Table
Quick Installation Guide 2.2 Connection and Color Code Table I/O Port Name Signal Name Wire Color POWER CON7 Main Power(+12V) DC +12V Power Ground Black OUTPUT CON4 Door Relay(NC) NC(1) Blue with White Stripe Door Relay(COM) COM(1) Gray with Red Stripe Door Relay(NO) NO(1) White with Red Stripe... -
Page 6: Installation Tips & Check Point
Belden #9514, 22 AWG Input -> 505R/Finger007 series 8 conductor, shielded Door Lock, Alarm Device Belden #9409, 18AWG ④ Lock (Alarm) -> 505R/Finger007 series 2 conductor, unshielded RS232 Cable Belden #9829, 24 AWG ⑤ Converter -> Host P.C 2 twisted pair, shielded 505R/Finger007 series ->... -
Page 7: Check Point During Installation
Quick Installation Guide 3.2 Check Point during Installation 3.2.1 Termination Resistor Termination Resistors are used to match impedance of the network to the impedance of the transmission line being used. When impedance is mismatched, the transmitted signal is not completely absorbed by the receiver and a portion of signal is reflected back into the transmission line. - Page 8 If you do not find both earth ground and chassis ground, then connect one end of shield wire to power ground. (GND of FINGER007 series or 505R series) Note: if the chassis ground is not properly connected to the earth, the communication may get interfered.
-
Page 9: Installation Of The Product
CAUTION It is recommended to run operational test in advance to mounting the Star FINGER007 series or 505R series unit to the Wall Mount bracket. Removing the unit from the Wall Mount bracket after the installation may cause damages to... -
Page 10: System Initialization
Once power is supplied to the 505R/FINGER007 series, press down the initialization switch on the back of the 505R/FINGER007 series unit. Keep it down for about 3 seconds until you see the display shown below. Press number 1 key to initialize the device. Otherwise, press number 0. -
Page 11: Wiring
Quick Installation Guide 4.3 Wiring 4.3.1 Power - Connect (+) wire of DC 12V power to +12V (Red wire) - Connect GND (-) wire of DC 12V power to GND (Black wire) 4.3.2 Input Connections Exit Button Connection (Exit) - Connect one wire from an Exit Button to exit (Orange wire). - Connect the other wire from the Exit Button to the GND (Black wire). - Page 12 Quick Installation Guide 4.3.3 2.2K Resistance Connection for Cut Off Check Make sure to connect a 2.2K Resistor between the input wire (e.g. Orange wire) and the GND to activate the Cut Off Check function. First, select whether or not to check the Cut Off status of each device from “F2 SETUP MENU”->...
- Page 13 Wiegand Data Connection (Applicable to Reader Mode) -Connect DATA0 IN wire of controller to TTL1/D0 (TTL Output1) wire of 505R/FINGER007 series (Orange with White stripe) - Connect DATA1 IN wire of controller to TTL2/D1 (TTL Output2) wire of 505R/FINGER007 series(Brown with White...
- Page 14 4.3.5 Reader Connections (External Reader) Proximity Reader Connection - Connect (+) wire of 505R/FINGER007 series to +12V (Red wire) - Connect (-) wire of 505R/FINGER007 series to GND (Black wire) - Connect DATA0 wire of 505R/FINGER007 series to DATA0 (Pink wire)
-
Page 15: Communication
Please follow the instructions. - Connect RS232-TX (Black wire with White stripe) port of 505R/Finger007 series to the PIN 2 of the 9-PIN connector. - Connect RS232-RX (Red wire with White stripe) port of 505R/Finger007 series to the PIN 3 of the 9-PIN connector. - Page 16 Second, you have to connect one of RS422 port of 505R/Finger007 series to RS422/RS232 converter. - Connect RS422-TX (+) of the one 505R/Finger007 series to RX (+) port of the converter. - Connect RS422-TX (-) of the one 505R/Finger007 series to RX (-) port of the converter.
-
Page 17: Tcp/Ip Converter (External Version)
Quick Installation Guide 5.3 TCP/IP Converter (External Version) When using TCP/IP converter, choose one type of communication between RS232 and RS422. Figure: TCP/IP Converter between 505R/FINGER007 series and Host PC INTERFACE FINGER007 ILAN422 LINE COLOR TX (CON2) RX (RS232 DSUB9) -
Page 18: Product Manual Download Information
For registered users of our homepage 1. Visit IDTECK’s homepage (www.idteck.com). 2. Click the Sign in button at the top of the homepage and log in using your registered ID and P/W. - Page 19 Quick Installation Guide MEMO...
- Page 20 The specifications contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 468, Gangseo-Ro, Gangseo-Gu, Seoul, 07573, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com FFQG0179 December. 2016 Copyright ©2016 IDTECK Co., Ltd.
