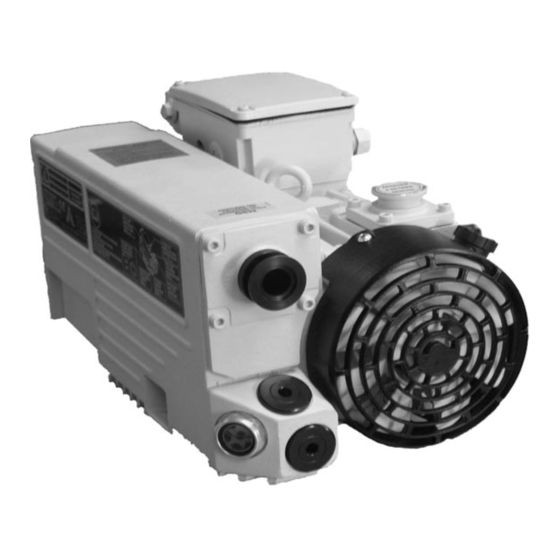

- Page 1 Sogevac SV28 BI Single-stage, oil-sealed Rotary Vane Pump Operating Instructions GA02331_002_01 Part Numbers 960 270 - 960 273 960 276 - 960 278...
-
Page 2: Table Of Contents
Gas ballast valve cleaning Inlet flange sifter cleaning Anti-suckback valve Fan cover cleaning Checking the float valve Breakdown analysis Spare parts Information EC Declaration of Conformity Declaration of contamination Spare Parts list Sales and Service GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... -
Page 3: General Instructions
(>20%) ; . for working in flammable or explosive environment. For all these cases, special materials must be used. In case of doubt, please contact Oerlikon Leybold Vacuum. See also the limits of use indicated in the EC Declaration of Conformity. -
Page 4: Application Range
The anti suck-back valve is not a safety valve. If oil back flowing is to be avoided by all means, it is ncessary to mount a separate safety valve on the pump inlet GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... -
Page 5: Technical Characteristics
Pump with single-phase motor wide range, gas ballast, big oil casing 960 277 180-264V, 50/60Hz Pump with JP and USA single-phase motor, gas ballast, big oil casing 960 278 100V -15/+10%, 50/60Hz & 115V -15/+10%, 60Hz GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... - Page 6 General Instructions GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum...
-
Page 7: Accessories
50Hz at 60Hz with gas ballast without gas ballast Accessories For the accessories, please refer to the Oerlikon Leybold Vacuum General Catalogue chapters C01 and C13. Kit anti suck back valve 9 714 62 600 Gas ballast kit 9 714 62 640... -
Page 8: Mounting Orientation And Storage
Storage temp. : - 15°C to + 60°C. Lubricants The SOGEVAC SV28 BI pumps should be run with mineral oils for vacuum pumps with low viscosity according to ISO category VG32. The Oerlikon Leybold Vacuum oil GS32 corresponds to these prescriptions. -
Page 9: Inlet Connection
3 electrical phases in the terminal box. Looking at the motor fan cover, the direction of rotation has to be counter- clockwise. single-phase connection diagram GA02331_002_01 -09/2007 - © Oerlikon Leybold Vacuum... -
Page 10: Operating Advices
Except the indications in chapter 2.6 (operating advices) there are no particular precautions for the shutdown of the pump. If the pump must be stopped for a longer period, see chapter 1.7. GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... -
Page 11: Maintenance
Refasten the oil drain plug when oil runs slower, start up the pump briefly (5 sec. max) and switch off immediately. Re-open the oil drain plug and drain the rest of the oil. GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... -
Page 12: Exhaust Filters Replacement
Clean the float chamber of the oil casing. Reassemble in the reverse sequence. Breakdown analysis If you have a breakdown, please contact the Oerlikon Leybold Vacuum service station and/or ask us, to send you the guide: “breakdown analysis”. Spare parts To guarantee safe operation of the Oerlikon Leybold Vacuum vacuum pump, only original spare parts and accessories should be used. -
Page 13: Information
Individual spare parts may need longer delivery time. Return to Oerlikon Leybold Vacuum service station If the pump has to be returned to Oerlikon Leybold Vacuum service station for repairing, you have to attach the form “Declaration of Contamination of Vacuum Equipment and Components”. - Page 14 GA02330_002_01 - 09/2007 - © Oerlikon Leybold Vacuum...
-
Page 15: Declaration Of Contamination
I / we hereby declare that the information supplied on this form is accurate and sufficient to judge any contamination level. Name of authorized person (block letters) : firm stamp Date signature of authorized person 17200001_002_00 © Leybold Vacuum GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... -
Page 16: Spare Parts List
Spare parts list GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... - Page 17 Spare parts list GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum...
-
Page 18: Sales And Service
Export, PA 15632 D-50968 Cologne Phone: +1-724-327-5700 Phone: +49-(0)221-347 0 Fax: +1-724-325-3577 Fax: +49-(0)221-347 1250 w w w . o e r l i k o n . c o m info.vacuum.ex@oerlikon.com info.vacuum@oerlikon.com GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum... - Page 19 Notes GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum...
