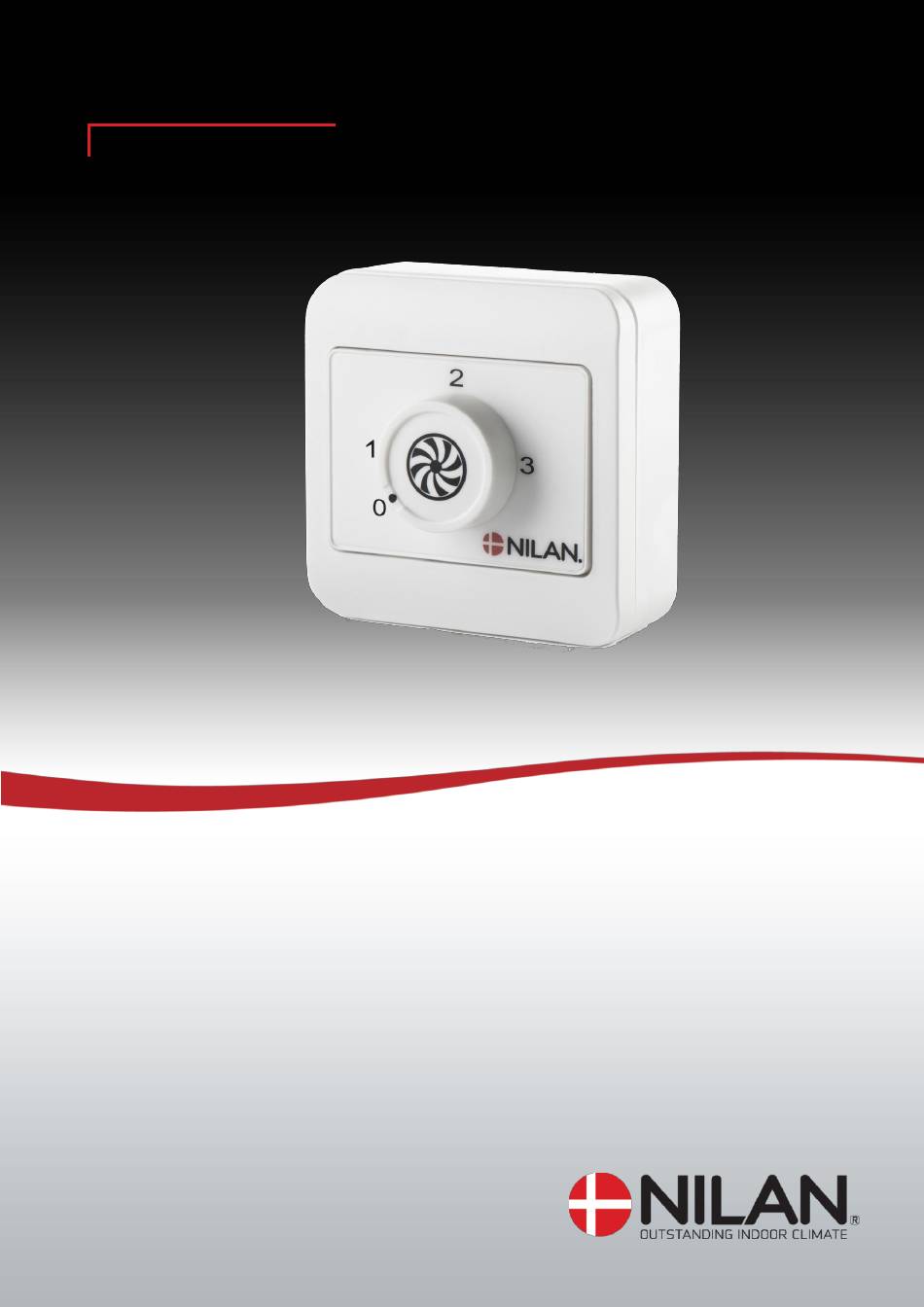

- Page 1 User manual User manual CTS 602 by Nilan Comfort CT150 Version: 10.00, 13-04-2015 Software-version: 2.30...
-
Page 2: Table Of Contents
Contents Contents ............................2 List of figures ..........................2 Introduction ............................. 3 Basic panel ............................. 4 Filter change ........................... 5 Condensation drain and water trap ....................5 System dimensions ........................6 Accessories/spare parts ......................... 7 List of figures Figure 1: Basic - Stepwise adjustable control panel ....Fejl! Bogmærke er ikke defineret. Figure 2: Filter change ........................ -
Page 3: Introduction
Introduction Please check that the following documents have been supplied with the unit: Installation instructions CTS 602 User manual (this manual) Wiring diagram The purpose of this guide is to indicate on the proper use and maintenance. IMPORTANT: If the plant gets damage or otherwise becomes damaged – the injury must be inspected and repaired by a qualified person. -
Page 4: Basic Panel
Basic panel 0: OFF 1: Speed 1 2: Speed 2 3: Speed 3 Slow flashing (½Hz) = filter Alarm Fast flashing (2 Hz) = critical alarm The alarm is acknowledged by STOP plant (knob to 0) Figure 1: Basic - Stepwise adjustable control panel Page 4 of 7 May be subject to change... -
Page 5: Filter Change
Filter change Outdoor- and extract air filters are placed behind the front of the system. These filters must be controlled at least 3 times a year and replaced as required. (See section about accessories). Before filter change the system is turned off. Screws are loosened and the lid is removed. The filters can be removed without using tools. -
Page 6: System Dimensions
System dimensions Fresh Air Air Inlet Air Exhaust Air Discharge Condensation drain Comfort CT150 Page 6 of 7 May be subject to change... -
Page 7: Accessories/Spare Parts
Accessories/spare parts Filters HUSK CT150 Type System type Nilan item no. Pollen filter for fitting Comfort CT150 3927 Filter G4 (1set = 2stk.) Comfort CT150 39170 Spare parts/accessories Type Nilan item no. Control panel, 3 steps 2399002 CTS 602, control PCB...
