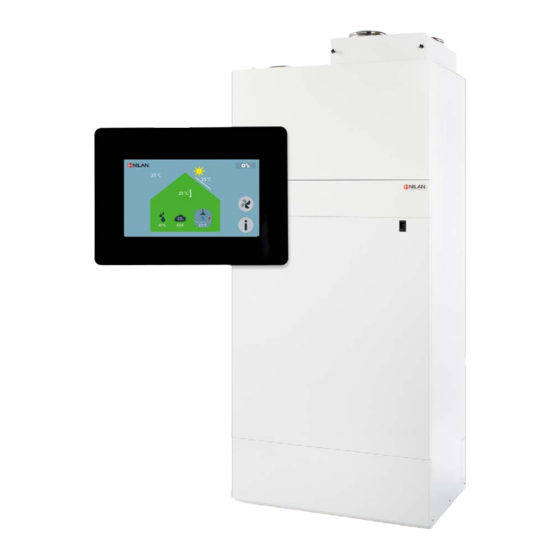

- Page 1 SOFTWARE INSTRUCTIONS CTS700 TOUCH BY NILAN Compact P / Compact P Polar (English) Version 2.30 - 20.02.2018...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Settings ..........................................................Ventilation ......................................................Domestic hot water ................................................. Software Functions touch-panel ..................................................Front-mounted components ............................................Front page setting options .............................................. Information ......................................................Warnings and alarms ................................................Settings menu overview ..............................................User and installer rights ..............................................How to unlock the installer settings ......................................... -
Page 3: Installation Settings
Compact P / Compact P Polar (English) BY NILAN Installation Settings Ventilation How to set the ventilation This list is for helping the installer get an overview of the settings, which has to be made in consultation with the user or builder. -
Page 4: Software
Software Functions touch-panel Front-mounted components The front of the touch panel contains the setting options and the information the user most often needs. 1. Displays the current room temperature in the house, measured via the exhaust air or via an external temperature sensor 2. -
Page 5: Front Page Setting Options
Compact P / Compact P Polar (English) BY NILAN Front page setting options The settings which the user needs in daily use, can be changed on the front page of the touch-panel. 1. By touching the current room temperature, the wanted room temperature is shown. You can change the wanted room temperature by touching the red or blue arrow. -
Page 6: Information
Information By touching the information button, you get an overview about the actual operation state of the unit. -
Page 7: Warnings And Alarms
Compact P / Compact P Polar (English) BY NILAN Warnings and alarms If an error in the operation of the unit occurs, a warning or an alarm will be shown in the user-panel. A warning is a yellow button, which tells you to notice something, e.g. filter or anode must be changed. -
Page 8: Settings Menu Overview
Settings menu overview The setting menu is build in a way, which makes it easy to use. Ventilation: Here are settings made concerning the ventilation of the house. Domestic hot water production: Here are settings made concerning the domestic hot water production. General settings: Here are settings made concerning both ventilation and domestic hot water and service settings. -
Page 9: User And Installer Rights
• Settings with a white lock can only be set by installers • Settings with a red lock can only be set by Nilan The reason why some settings are locked for the user, is because it requires a certain amount of knowledge about how the unit works in order to change these settings, and if they are set wrongly the unit does not work properly and can be damaged. -
Page 10: How To Unlock The Installer Settings
How to unlock the installer settings It is possible for the installer to unlock a white lock by touching it and entering a password. The locks can be opened anywhere in the settings menu. When touched, a pop-up picture will appear in which the password can be entered. -
Page 11: Start Up
Compact P / Compact P Polar (English) BY NILAN Start up Set language Default language in the control system is Danish. Other languages can be selected in the touch-panel. General settings Language ↳ Change language Description: Select a language by touching the "Change language"... -
Page 12: Turning The Unit On
Turning the unit on When power is on, light will appear in the control panel, but all functions will be off. This is to prevent errors, e.g. no water supply to the hot water tank, when the unit starts producing hot water. The unit's functions are activated in the service menu under General settings. -
Page 13: Ventilation
Compact P / Compact P Polar (English) BY NILAN Ventilation Filter settings The filter alarm is factory set using a timer set at 90 days between filter changes. This interval can be changed and adapted to meet local requirements, or if an F7 filter is installed, for example, which is replaced at longer intervals. -
Page 14: Operating Mode
Operating mode It is possible to provide the unit with an input which determines whether it will operate in Auto, Heating or Cooling. Ventilation Operating mode Settings: Auto/ Heating/ Cooling Standard setting: Auto Description: Auto : The unit operates in accordance with the set values. -
Page 15: Fan Speed Adjustment
Compact P / Compact P Polar (English) BY NILAN Fan speed adjustment Stepless adjustment between 20% and 100% is available for the four fan speeds. It is also possible to adjust supply air (inlet air) and extract air (outlet air) separately, which is a great advantage when balancing the ventilation system. -
Page 16: Humidity Control
Humidity control The unit has a built-in humidity control to control the ventilation relative to the average humidity, in order to maintain a good relative humidity in the house. If the average humidity in the house is below a set level (factory setting 30%), it is possible to reduce the ventilation to avoid further drying of humidity in the house. -
Page 17: Settings Active Cooling
Compact P / Compact P Polar (English) BY NILAN Settings active cooling Depending on architecture, the home may require cooling during the summertime. Compact P has an integral heat pump, primarily used for production of domestic hot water. The heat pump has a reversible cooling cycle, and in the summer time it is able to cool the supply air while simultaneously producing domestic hot water. - Page 18 Prioritisation sequence in the control system: 1. Userprogram 2 and 1 with high priority for ventilation Userprogram 2 2. High ventilation in connection with cooling Userprogram 1 3. Low ventilation in connection with low outdoor air level (accessory) temperature Manually set values 4.
-
Page 19: Ventilation At Times Of Low Outdoor Air Temperature
Compact P / Compact P Polar (English) BY NILAN Ventilation at times of low outdoor air temperature It is possible to prevent low humidity in the home by reducing ventilation in case of low outdoor temperatures. This function is particularly useful in countries with heavy frosts and at high altitudes where the outdoor air is very dry. -
Page 20: Co 2 Control
control ATTENTION A CO sensor is not standard in all units, but may be purchased as an accessory. If the occupancy varies greatly, it may be better to control ventilation by the CO -level in the extract air. This function is often used in offices and schools where loadings vary greatly during the day and from week to week. -
Page 21: After Heating Element
Compact P / Compact P Polar (English) BY NILAN After heating element ATTENTION The after heating element is not standard, but can be purchased as an accessory. If it is wished to control the air inlet temperature, it will be necessary to fit an after heating element. An after heating element allows you to control the supply air temperature, regardless of the outdoor temperature. -
Page 22: Temperature Settings
Temperature settings For smooth, reliable operation, it is important that the temperature settings are correct. The default settings are chosen for normal conditions, but it may be necessary to adjust them for the specific installation. Ventilation Temperature regulation ↳ Desired room temperature (°C) Setting: 5 ↔... - Page 23 T3 the temperature sensor in the extract air (outlet air). TExt external temperature sensor located in the residence (not a Nilan supply). ↳ Temperature regulatory deadband (°C) Setting: 0 ↔ 10 °C Standard setting: 1 °C...
- Page 24 ↳ Deadband external room heating (°C) Setting: 0 ↔ 10 °C Standard setting: 1 °C Description: The unit can control an external heat supply by sending a release or blocking signal. The regulatory deadband for the control is set here. Regulation of external heat source 20 °C Regulatory deadband for external heating (ºC)
-
Page 25: Reading Of Temperatures
Compact P / Compact P Polar (English) BY NILAN Reading of temperatures Here readings can be taken from all temperature sensors. Ventilation Temperature sensor overview ↳ TExt room temperature (°C) Description: Indicates the room temperature measured by an external room sensor (only if connected). -
Page 26: Frost Protection Or De-Icing
Frost protection or de-icing All ventilation units with a heat exchanger with high heat recovery rate will be subject to ice formation in the heat exchanger in periods of heavy frost. The unit has an automatic integral de-icing function, which thaws out the heat exchanger if there is ice in it. - Page 27 Compact P / Compact P Polar (English) BY NILAN If Polar is selected for frost protection, only Compact P Polar applies: ↳ Frost protection ↳ Frostprotection heat exchanger Setting: Polar ↳ Start frost protection below (ºC) Setting: 1.0 ↔ 5.0 °C Standard setting: 1.0 °C...
- Page 28 If the EHD solution with energy hose is selected: ↳ Frost protection ↳ Frostprotection heat exchanger Setting: ↳ EHD offset (°C) Setting: 0 ↔ 10.0 °C Standard setting: 2.0 °C Description: Offset for temperature regulation by EHD. ↳ EHD retention time Setting: 1 ↔...
- Page 29 Compact P / Compact P Polar (English) BY NILAN De-icing the heat exchanger: ↳ De-icing heat exchanger ↳ Frost protection below temp. (°C) Setting: -10 ↔ 1 °C Standard setting: 1 °C Description: Indicates when the control system is to start monitoring the heat exchanger via the T4 temperature sensor after the heat exchanger.
-
Page 30: Domestic Hot Water Production
Domestic hot water production DHW standby function It is possible to set the hot water production on standby for a period between 1 and 180 days. In this way, energy for heating the domestic hot water can be saved when on vacation, or the holiday cabin is closed for the winter. -
Page 31: Dhw Settings Domestic Hot Water Production
Compact P / Compact P Polar (English) BY NILAN DHW settings domestic hot water production Settings for hot water production have been set at the factory, but it may be necessary to adjust them to match the user´s needs. Domestic hot water production DHW hot water tank ↳... -
Page 32: Dhw Anti Legionella
DHW anti legionella The control has an built-in anti-legionella function to combat possible legionella in the hot water tank. Domestic hot water production DHW hot water tank ↳ Anti legionella settings ↳ Start anti legionella manually Settings: On / Off Standard setting: Description: It is possible to start the anti legionella function... -
Page 33: Dhw Compressor Settings
Compact P / Compact P Polar (English) BY NILAN DHW compressor settings Compressor settings for hot water production can be read as information for the installer, and can only be set as an administrator. Domestic hot water production DHW hot water tank ↳... -
Page 34: General Settings
General settings Display settings The brigtness of the display can be adjusted. It is also possible to set the display to shut down at a set time to save energy. General settings Display settings ↳ Brightness (%) Settings: 0 ↔ 100 % Standard setting: 100 % Description:... -
Page 35: Week Program
Compact P / Compact P Polar (English) BY NILAN Week program It is possible to programme the unit to run in accordance with specific settings at fixed times of the week via a weekly programme. General settings Week program ↳ List of week programmes Description: This shows a list of weekly programmes. -
Page 36: Smart Grid
Smart Grid Smart Grid gives the opportunity to achieve financial advantages by adjusting the heat pump’s power consumption according to price fluctuations in electrify over the course of the day. Smart Grid receives an external signal from electricity company, which determines in what operating setting the unit should run. -
Page 37: Service
Compact P / Compact P Polar (English) BY NILAN Service General settings Service ↳ Unit start/stop Settings: On / Off Standard setting: Description: The unit is turned off at the factory to prevent errors occurring when power is connected. The installer starts the unit here. -
Page 38: User Selection Programmes
User selection programmes It is possible to set two user selection programmes with special settings which override the settings in Compact P. The user selection programmes are activated via an external signal. The user selection programmes are used, for instance, for connecting cooker hoods in which the ventilation runs at a high speed when the cooker hood is in operation. - Page 39 Compact P / Compact P Polar (English) BY NILAN ↳ User programme 2 ↳ Running time (min) Settings: 0 ↔ 480 minutes Standard setting: 0 minutes Description: Here it is set how long the programme is to run after the external signal has stopped.
-
Page 40: Network Settings
Network settings The unit can be accessed via a local network or via a Modbus connection. Here, it is possible to adjust the network settings so that they are compatible with the local network. General settings Network settings ↳ IP address Description: Enter the permanent IP address for the local network here. -
Page 41: Information
Compact P / Compact P Polar (English) BY NILAN Information Event log Warnings, alarms or changes to settings can be read of in the event log. It is also possible to reset warnings and alarms in this menu. Information Event log ↳... -
Page 42: Read Data For Ventilation And Domestic Hot Water
Read data for ventilation and domestic hot water It is possible to read of relevant data for Compact P ventilation and for domestic hot water. Information Compact P all device data ↳ Software version Description: Shows the installed software version. ↳... - Page 43 Compact P / Compact P Polar (English) BY NILAN ↳ T1 Outdoor temperature Description: Shows the outdoor temperature. ↳ T2 supply air temperature Description: Shows the air inlet temperature without after-heating element. ↳ T3 extract air temperature Description: Shows the room temperature.
-
Page 44: Safety Switch
Safety switch Emergency stop ventilation If the ventilation has been stopped for a lengthy period, condensation will occur in the duct system. This occurs when the warm air in the residence oozes into the cool ducts. This presents the risk that the water will drip out of the ceiling valves, damaging floors and furniture. -
Page 45: Alarm Lists Compact P
Compact P / Compact P Polar (English) BY NILAN Alarm lists Compact P: Alarm list ventilation and domestic hot water First column in the eventlog shows if it concerns the master (M) or the slave (3). The list below concerns Compact P (M) and the events are divided into following categories:... - Page 46 Info Too long start-up of a function Software failure Turn the unit off and turn it on again. If the error occurs again, contact the installer. Info Slave device connected A new slave device has been connected Failure in de-icing Failure in de-icing (2 hours) Inspect the counterflow exchanger.
- Page 47 Compact P / Compact P Polar (English) BY NILAN...
