- Page 1 Installation Instruction CTS 602 by Nilan VPM 120 VPM 240 VPM 360 VPM 480 VPM 560 Version: 8.00, 25-09-2012 Software-version: 2.17...
-
Page 2: Table Of Contents
Guide to performance data, water heating element ..............8 Heating element, electric (option) ....................11 Guide to performance data for electric heating element ............11 Setting up the CTS 602 control system ..................12 Activating service menu ......................12 Heating element ........................13 Air quality .......................... -
Page 3: General Information Before Installation
The unit is supplied as standard with filter classes F5 (EU5) for exhaust and F7 (EU7) for inlet air. The unit is operated by a CTS 602 control system, featuring a wide range of functions, e.g. menu- controlled operation, weekly programme, filter monitor with timer, adjustment of fan speed etc. CTS 602 is described in a separate user guide supplied with the system. -
Page 4: Electrical Installation
Each ventilation part must be connected to mains electricity before the unit can be start- The unit is supplied with a 1m test cable for the CTS 602 panel. The panel is connected to the CTS 602 control system in the unit by cable type 2 x 2 x 0.25 mm2 twisted pair (max. length 50 m). -
Page 5: Setting Up Vpm
A non-return damper should be fitted to prevent condensation, frost and heat loss. Dampers can be controlled via the CTS 602 control system. The unit must be installed level for the sake of the condensation outlet. The condensation outlet requires clearance of min. -
Page 6: Condensation Outlet/Water Lock
Condensation outlet/water lock VPM models are supplied with a 20 mm condensation outlet (PVC, GF fittings). The drain is locat- ed under the discharge air nozzle. The unit is supplied with a fitting in front of the drain for protection during transportation. Remove the fitting before fitting the water lock. ... -
Page 7: Heating Element, Water (Option)
The heating element is installed inside the unit by the factory if ordered as an option. If retrofitting a water heating element, it must be activated in the CTS 602 control system as described on page Pass the pipe connections to the element through the inlet nozzle side. It is important that the pipes are supported from the element where connected. -
Page 8: Guide To Performance Data, Water Heating Element
Guide to performance data, water heating element The table below shows heat production at various supply and return temperatures - at 5°C inlet after the heat pump and before the heating element. Guide to performance data for VPM 120 water heating element Pipe connection: Ø15 (for factory-fitted element) Inlet air tempera- Recom-... - Page 9 Guide to performance data for VPM 360 water heating element Pipe connection: Ø22 (for factory-fitted element) Inlet air tempera- Recom- Sup- ture Pressure Pressure Perfor- Water mended ply/return Air volume (at temperature of drop on drop on mance volume Kv value temperature 5°C just before the water side...
- Page 10 Guide to performance data for VPM 560 water heating element Pipe connection: Ø22 (for factory-fitted element) Inlet air tempera- Sup- Recom- ture Pressure Pressure ply/return Perfor- Water mended Kv Air volume (at temperature of drop drop tempera- mance volume value 5°C just before the water side air side...
-
Page 11: Heating Element, Electric (Option)
Heating element, electric (option) The electric heating element is installed by the factory if ordered as an option. If retrofitting an elec- tric heating element, it must be activated in the CTS 602 control system as described on page 13.. ... -
Page 12: Setting Up The Cts 602 Control System

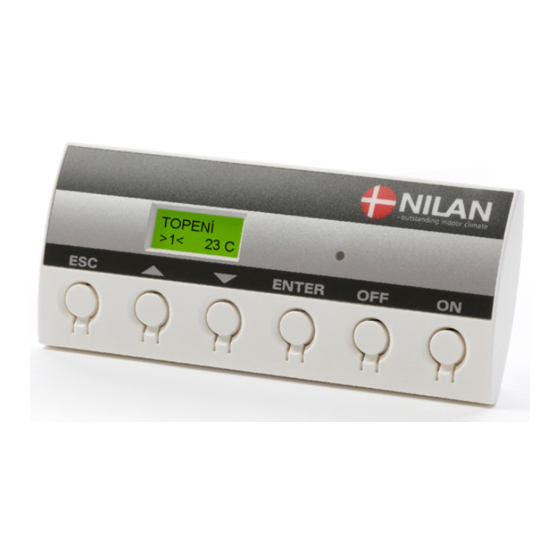

Setting up the CTS 602 control system This chapter focuses on the CTS 602 control system service menu. Daily use of the CTS 602 con- trol system: see the CTS 602 user guide supplied. Use of the CTS602 panel: - press ESC to go one step back in the menu... -
Page 13: Heating Element
The unit is prepared for installation of a supplementary heating element. If the element is supplied and fitted by Nilan, it will be activated in the CTS 602 control system. A water or electrical heating element can be retrofitted. The element must be activated in the CTS 602 control system to work as part of the unit, and to activate frost protection for the element. -
Page 14: Air Quality
Air quality In the ”Air quality” menu it is possible to choose between 3 types of regulation: Humidity, Humidity + CO or OFF. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated menu - press ENTER to activate a menu - press ENTER to confirm a menu... -
Page 15: Air Exchange
Air exchange The air exchange menu can be used to set 4 ventilation steps (air volumes) for the unit. Inlet air and exhaust air can be set individually for each ventilation step. A minimum ventilation step can be set for inlet, and min./max. ventilation steps for exhaust. A delay can be set from when the unit switches on until the fan starts, to give the non-return damp- er time to open. -
Page 16: Defroster
Defroster The Defrost menu is used to programme the unit for defrosting the condenser surface for exhaust. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated menu - press ENTER to activate a menu - press ENTER to confirm a menu... -
Page 17: Temp. Control
Temp. control The Temperature control menu is used to select the master temperature sensor for the unit. A minimum value can be entered to stop the unit in the event of loss of the primary heating supply to prevent further cooling of the building. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated... -
Page 18: Inlet Control
Inlet control The Inlet control menu can be used to set the regulator for the inlet air temperature. The parameters in the "INLET CONTROL” menu should only be adjusted by authorised personnel. (To reset factory settings, see page 21). Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated... -
Page 19: Room Control
Room control The Room control menu can be used to set the regulator for the room temperature. The menu will NOT appear if T7 is selected as the master sensor on the Temp. control menu. The parameters in the "ROOM CONTROL” menu should only be adjusted by authorised personnel. -
Page 20: Restart
Restart The Restart menu is used to set the unit for automatic restart in the event of a high/low pressure fault. The "HP/LP" setting in the Restart menu must not be used for normal operation. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated menu... -
Page 21: Reset
Reset The Reset menu is used to restore the factory settings for the unit. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated menu - press ENTER to activate a menu - press ENTER to confirm a menu... -
Page 22: Manual
Manual The Manual menu is used for performing a manual test of the unit's functions. Use of the CTS602 panel: - press ESC to go one step back in the menu - press qpto move up or down in a menu or to adjust an activated menu - press ENTER to activate a menu - press ENTER to confirm a menu... -
Page 23: Guide To Unit Dimensions
Guide to unit dimensions The unit dimensions are shown on a left model (supply air on the left side, seen from the front). The dimensions are reversed for a right model. Feedthrough for water heatingelement Air Inlet Fresh Air Air Exhaust Dischange Condencation drain (20 MM) -
Page 24: Accessories/Spare Parts
Accessories/spare parts VPM 120 Filter class Name Quantity Nilan item number HI-FLO 490 x 392 – 4 x 380 – 40 F5 (Standard in exhaust) 3948 HI-FLO 490 x 392 – 8 x 380 – 85 F7 (Standard in inlet) - Page 25 Heating cable for condensation outlet (frost protection) Unit Name Nilan item number VPM 120 VPM 240 VPM 360 Heating cable (state length when ordering) 2172 VPM 480 VPM 560 Non-return damper Unit Name Voltage Nilan item number VPM 120 DTBU315...
