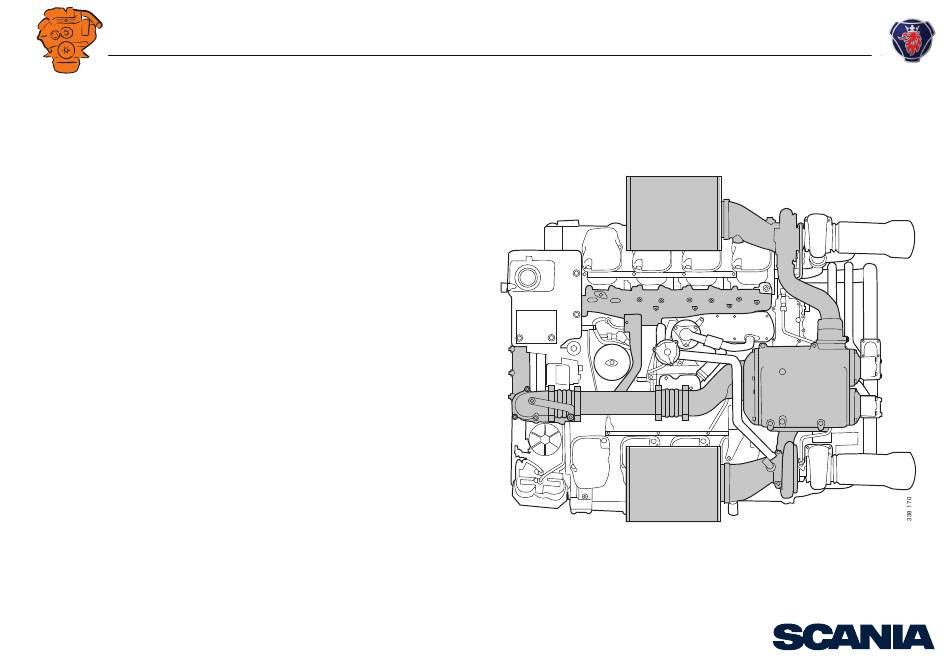

Installation manual
Intake system and ventilation
Marine engines
DI09, DI13, DI16
02:02 Issue 4.0 en-GB
© Scania CV AB 2018, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Scania DI09

  • Page 1 Installation manual Intake system and ventilation Marine engines DI09, DI13, DI16 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 2: Table Of Contents

    Air cleaner......................10 Air cleaners with precleaner................11 Air cleaners without precleaner................. 11 Turbo-mounted filter ..................12 Clean air ......................12 Air pressure......................13 Crankcase ventilation.................... 14 Important data....................... 15 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 3: Changes From The Previous Issue

    • Information about the safety cartridge for the air cleaner with precleaner has been removed, as a safety cartridge is no longer included. See cleaner. • Clearances for Air cleaners with precleaner Air cleaners without precleaner have been corrected. 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 4: Intake Air

    The engine air consumption in kg/min at full power and at different engine speeds is indicated in the tables showing the air consumption and radiated heat for the relevant engine type in 02:06 Technical data. 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 5: Intake Air Taken From Outside Engine Room

    Measure the vacuum when the installation is complete. Refer to 02:08 Measuring in- structions for installation inspection. 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 6 50 m It is not necessary to check the vacuum in the following cases: • If the intake system is comprised of air hoses and air pipes from Scania's standard range. • If the fresh air line is a maximum of 5 m and has an inner diameter of a minimum of 210 mm.
  • Page 7 The amount of radiated heat emitted by the various engines is indicated in 02:06 Technical data. The exhaust pipes should be insulated to reduce the radiated heat in the engine room. See 02:04 Exhaust system. 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 8: Intake Air Taken From Engine Room

    Calculation of minimum air intake area. REQUIREMENT! The vacuum in the engine compartment must not exceed 2 mbar. Measure the vacuum when the installation is complete. Refer to 01:08 Measuring in- structions for installation inspection. 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 9 The amount of radiated heat emitted by the engine is indicated in the tables showing the radiated heat for the relevant engine type in 02:06 Technical data . 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 10: Air Cleaner

    It is also important to make sure that any insulation in the engine room and around the exhaust pipes cannot come loose and be drawn into the intake line. If a non-Scania air filter is used, engine air consumption and filter element pore size must be considered.
  • Page 11: Air Cleaners With Precleaner

    The cover should then face downwards. A 15 inch air cleaner without precleaner is available for DI09 and DI13. The amount 1010 of free space required for prefilter renewal is shown in the illustration.
  • Page 12: Turbo-Mounted Filter

    Therefore, Scania recommends that these type of filters are not used in the following Turbo-mounted filter for DI09 and DI13. engine installations: •...
  • Page 13: Air Pressure

    100% engine power when the intake air is at a pressure of 1,000 mbar. Contact a Scania distributor to check the engine power if the engine is to be used at heights. If the engine power is set incorrectly, this will cause abnormal smoke levels and result in high thermal stress.
  • Page 14: Crankcase Ventilation

    INSTALLATION MANUAL Crankcase ventilation Crankcase ventilation Scania offers closed crankcase ventilation systems. In a closed crankcase ventilation system, the crankcase gases are routed to the intake line between the air filter and the turbocharger via a centrifugal oil cleaner. Note: It is not permissible to lead the crankcase gases to the intake upstream of the engine air filter.
  • Page 15: Important Data

    65 mbar Maximum temperature in the engine compartment when the intake air is taken from outside the engine compartment 60 °C Max. permissible vacuum in engine compartment (pressure difference) 2 mbar 02:02 Issue 4.0 en-GB © Scania CV AB 2018, Sweden...
