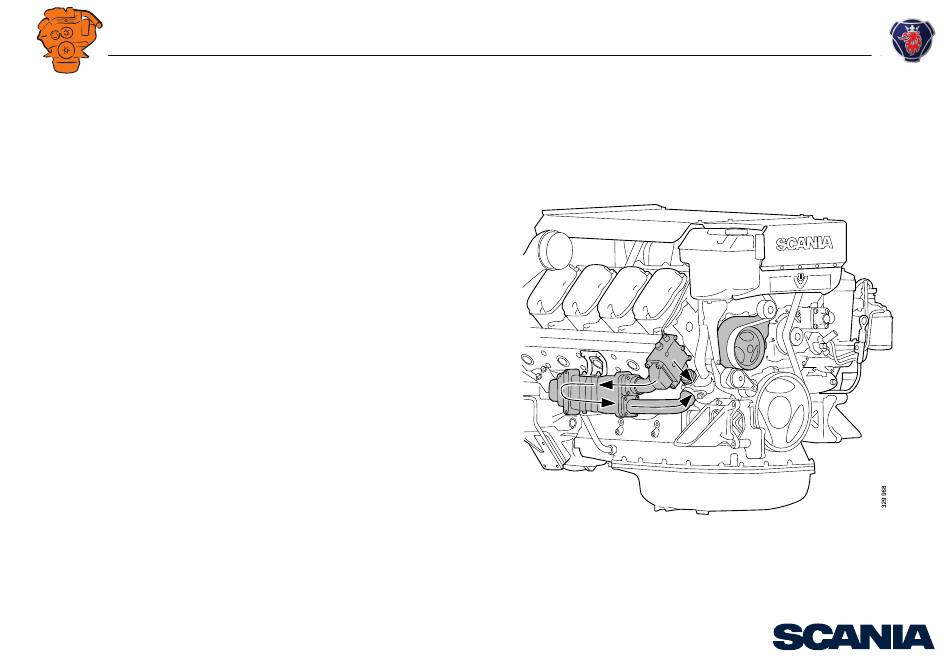

Installation manual
Cooling system
Marine engines
DI09, DI13, DI16
02:05 Issue 8.0 en-GB
© Scania CV AB 2017, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scania DI09

  • Page 1 Installation manual Cooling system Marine engines DI09, DI13, DI16 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 2: Table Of Contents

    Keel cooling design and installation ..............21 Cooling system with air-cooled cooler ..............22 Connecting an auxiliary oil cooler ............... 23 Engines with heat exchanger................23 Engines with keel cooling ................. 23 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 3: Changes From The Previous Issue

    All engines apart from DI16 XPI can also be ordered with a self-priming sea water pump. Scania recommends use of this pump if the sea water is heavily contaminated or if the engine will be repeatedly started without sea water in the system.
  • Page 4: Draining The Sea Water Circuit

    To avoid damage caused by freezing during transport or storage, the sea water system should be drained even when the engine has been test run on land. Draining the sea water circuit. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 5: Pipes And Hoses

    Pressure drop (bar) outlet lines must be dimensioned for the prevailing sea water flow and pressure drop DI09, DI13 DI16 conditions. 0.40 0.30 0.45 0.35 0.50 0.40 0.45 0.50 0.60 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 6: Sea Water Intake

    The suction line must be fitted with a sea cock. This must have an opening diameter that is at least as large as the inner diameter of the suction line to prevent excessive pressure drops. It is important that the sea cock be easily accessible. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 7: Warning System For Low Sea Water Flow

    Connecting a temperature monitor in the sea water outlet Exhaust flow Sea water flow Temperature monitor Adapter with sensor body Exhaust hose 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 8: Coolant Circuit

    On keel cooling engines, the charge air cooler may be connected to the coolant cir- cuit. Higher power outputs for DI16 and DI13 with keel cooling have a separate cool- ant circuit for the charge air cooler, whereas all DI09 with keel cooling have a separate circuit.
  • Page 9 The expansion tank has a pressure cap with an opening pressure of 0.75 bar. Note: Scania engines must always have corrosion protection in the coolant circuit in the form of antifreeze. Coolant circuit DII6...
  • Page 10: Draining Coolant

    2 443 679 Coolant pump WARNING! Example of drain valve, DI09 and DI13. If the engine has been warmed up, the coolant is very hot and can cause burns. Environment Use a suitable container. Dispose of used coolant according to national and interna- tional laws and regulations.
  • Page 11: Filling Coolant

    Check that filling starts. If it doesn't, swap the position of the cable termi- nals. Start the engine and leave it running for a while. Check that there are no leaks. Check the level of the coolant and top up as necessary. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 12: Sea Water And Coolant Flow Of The Water Pumps

    Max. external pressure drop applies for the separate charge air circuit for keel cooling engines with two coolant circuits. Engine speed (rpm) DI13 XPI DI16 XPI DI09, DI13 PDE, DI16 PDE DI09, DI13 PDE Flow (l/min) Max. external pres- Flow (l/min) Flow (l/min) Max.
  • Page 13: Self-Priming Pump

    Max. external pressure drop applies for the separate charge air circuit for keel cooling engines with two coolant circuits. Engine speed (rpm) DI09, DI13 DI16 Flow (l/min) Flow (l/min) Max. external pressure drop 1,200 0.55 1,500 0.70 1,800 0.85 2,100 1.00 2,300 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 14: Connecting An External Expansion Tank

    The outer DI16 with keel cooling, 1 coolant circuit diameter of the static line pipe must be at least 25 mm for the DI09 and DI13 and 38 DI16 with keel cooling, 2 coolant circuits mm for the DI16.
  • Page 15: Keel Cooling

    Expansion tank Coolant level monitor Bleed pipe from highest point of cooling coil Cooling coil Coolant return pipe to engine Static line pipe Outlet from thermostat housing to coolant pipes 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 16 Coolant level monitor Bleed pipe from highest point of cooling coil Cooling coil Coolant return pipe to engine Static line pipe Outlet from thermostat housing to coolant pipes Bypass pipe 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 17: Keel Cooling Engines With 2 Coolant Circuits

    This coolant circuit must be equipped with a separate expansion tank, as illustrated on the following pages. DI09 and DI13 with 2 coolant circuits The pipe for connection to the engine main circuit has an outside diameter of 63 mm.
  • Page 18 Return line to the suction side of coolant pump. Coolant pump suction side. Cooling coil for the charge air circuit. Inlet to charge air cooler. Outlet from the charge air cooler. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 19: Pressure Drop And Coolant Flow

    The coolant lines should be made of pipe, which is bent and jointed with short straight hoses. Ribbed hoses can hinder flow. DI13 PDE with 2 coolant circuits and DI09. The maximum permitted pressure drop (Dp) over the external cooling system and the minimum coolant flow in litres/minute at different engine speeds are covered in the diagrams on this page and the next one.
  • Page 20 1200 r pm 0,25 L/min DI13 XPI. MAXIMUM RESTRICTION 1,75 2200 r pm 2000 r pm 1,25 1800 r pm 0,75 1500 r pm 1200 r pm 0,25 L/min DI16. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 21: Keel Cooling Design And Installation

    • If an auxiliary oil cooler, e.g. a reverse gear oil cooler, is incorporated into the sys- The outer diameter of the static line pipe must be at least 25 mm for the DI09 and tem, the added heat from this cooler must be taken into account when calculating DI13 and at least 38 mm for the DI16.
  • Page 22: Cooling System With Air-Cooled Cooler

    Information on dimensioning can be found in 01:05 Cooling system in the installa- tion manual for industrial engines. Note that marine engines have a greater cooling requirement due to their water-cooled exhaust manifolds. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 23: Connecting An Auxiliary Oil Cooler

    If an auxiliary oil cool- ant is connected, an external thermostat must be fitted and the engine thermostat must be locked in the open position. 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
  • Page 24: Connecting A Cab Heater

    If external circuits are connected, there must always be venting on these circuits. On the DI09 and the DI13, the cab heater intake line is routed to the connection above the coolant pump on the cylinder block. Cut a hole in the protective casing perfora- tion to access the connection.
  • Page 25 Connecting a cab heater Connection of the intake line to the cab Connection of the return line from cabin Connection of cab heater, DI16 heater, DI09 and DI13, M18x1.5 heater, DI09 and DI13 Intake line, M26x1.5 M18x1.5 Return line, M26x1.5 M22x1.5...
  • Page 26: Immersion Heater

    It also prevents the temperature from becoming so high that oil film on e.g. the piston and cylinder liner evaporates or dries. For DI09 and DI13 with keel cooling, there is also an immersion heater without thermostat.
  • Page 27: Electrolytic Corrosion

    The sacrificial anodes must be checked and renewed at regular in- tervals. For extra protection of the DI09 and DI13 in very corrosive water, a spacer flange 1 Position of sacrificial anodes 728 674 for fitting 2 extra sacrificial anodes can be connected to the suction side of DI09 and DI13: 2 off the sea water pump.
  • Page 28: Important Data

    Minimum outer diameter for static line pipe DI09, DI13: 25 mm DI16: 38 mm Minimum inner diameter for static line pipe DI09, DI13: 20 mm DI16: 35 mm Maximum inner diameter for bleed pipes 8 mm 02:05 Issue 8.0 en-GB © Scania CV AB 2017, Sweden...
