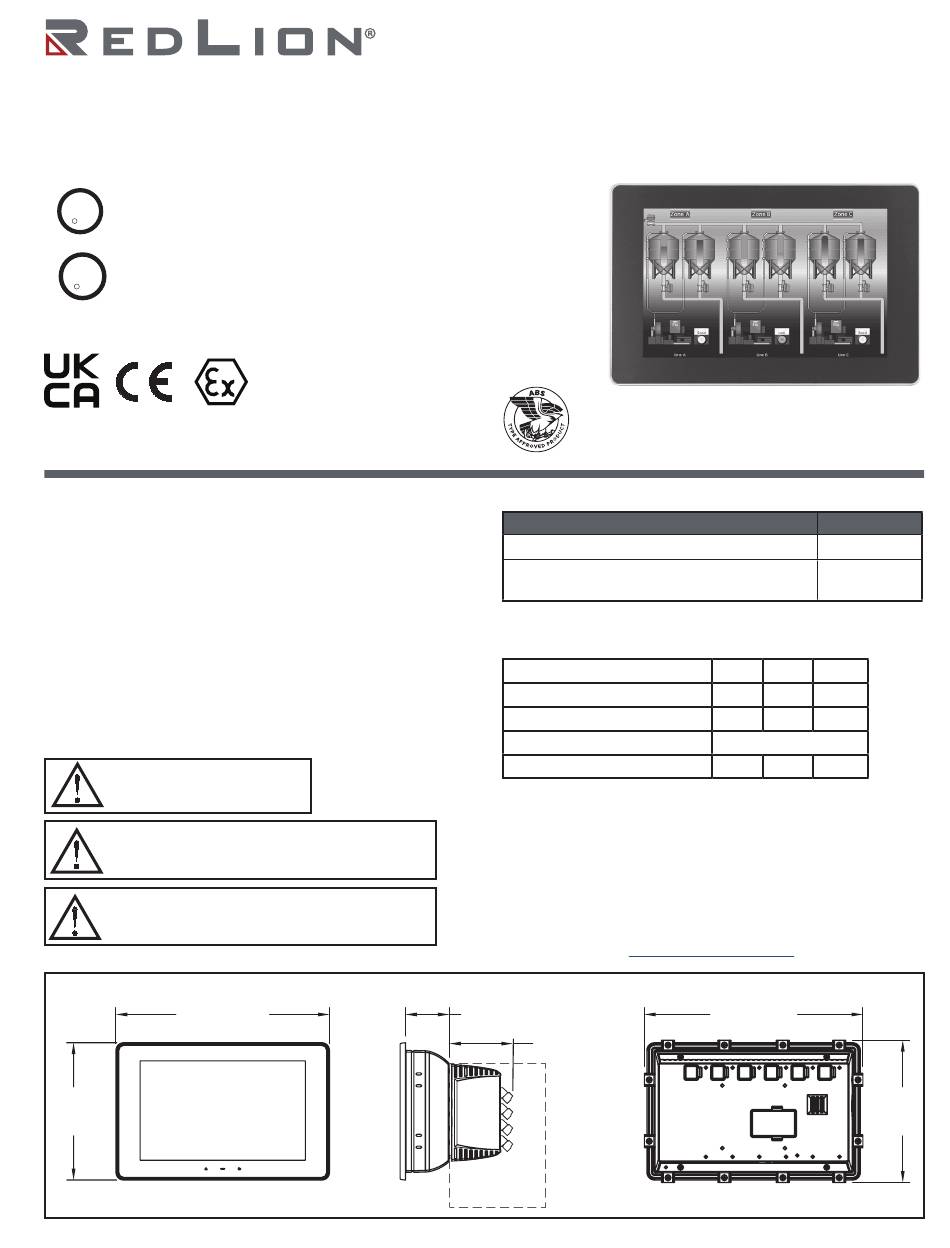

red lion Graphite G09 Installation Manual

Model G09 - Graphite
Touchscreen Operator Interface Terminal
Installation Guide
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
E302106
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
Class II, Division 2, Groups F and G
IND.CONT. EQ.
Class III, Division 2
E317425
See the Red Lion website at www.redlion.net for full user manual,
Crimson® software and software manual.

SAFETY SUMMARY

All safety related regulations, local codes as well as instructions
that appear in this document or on equipment must be observed
to ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - Do not
disconnect equipment unless power has been
switched off or area is known to be non-hazardous.
WARNING - EXPLOSION HAZARD - Substitution
of components may impair suitability for Class I,
Division 2.
DIMENSIONS In inches [mm]
10.06 [255.6]
6.47
[164.4]
®
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
≤60°C
-20°C≤T
AMB
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
UL23UKEX2879X
Series 9" Color

ORDERING INFORMATION

DESCRIPTION
9" Color Touch Screen, Indoor Use
9" Color Touch Screen, Indoor Use, Additional
Ethernet Port

SPECIFICATIONS

POWER:
Typical Power HMI Only:
Maximum Power HMI Only:
Available Power for Modules:
Max Power HMI With Module(s):
Must use a Class 2 circuit according to National Electrical
Code (NEC), NFPA-70 or Canadian Electrical Code (CEC),
Part I, C22.1 or a Limited Power Supply (LPS) according to
IEC/EN 60950-1 or Limited-energy circuit according to
IEC/EN 61010-1.
Power connection via removable three position terminal block.

ENVIRONMENTAL CONDITIONS:

Operating Temperature Range: -20 to 60 °C, or lowest range
among equipment used in your Graphite system. Consult the
user manual or
2.06 [52.4]
2.97 [76]
Module sold
separately
1
Drawing No. LP0908
Input Voltage 10V 24V
11 W 12 W
16 W 17 W
25 W
41 W 43 W
www.redlion.net/OpTemp for further details.
10.3 [262]
(MOUNTING CLIPS INSTALLED)
Install - G09-G
Revised 11/2023
PART NUMBER
G09C0000
G09C1000
30V
12 W
18 W
43 W
6.7
[171]
