Summary of Contents for BLAUBERG HRV H 120

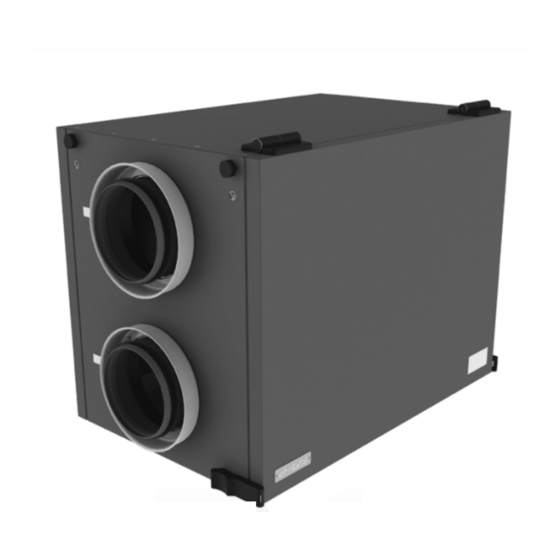

- Page 1 HEAT RECOVERY VENTILATOR HRV H 120 ERV H 120 HRV H 170 ERV H 170 OPERATION MANUAL...
-
Page 2: Table Of Contents
HRV/ERV H 120(170) www.blaubergventilatoren.de CONTENTS Application ....................2 Delivery set ....................3 Unit designation key ................3 Basic unit dimensions ................3 Technical data ....................3 Safety requirements ................4 Structure and operating logic ...............4 Mounting and setting-up ...............5 Condensate drainage ................5 Unit connection to power mains ............6 Unit control ....................7 Servicing and maintenance ..............8 Troubleshooting ..................8... -
Page 3: Delivery Set
HRV/ERV H 120(170) www.blaubergventilatoren.de DELIVERY SET Unit HRV/ERV H 120(170) - 1 pce; User’s manual - 1 pce; Drain hose - 1 pce; Oil filter - 1 pce; Packing box - 1 pce. UNIT DESIGNATION KEY HRV/ERV H 120 (170) Air capacity [CFM] Unit type: HRV - Heat Recovery Ventilator... -
Page 4: Safety Requirements
HRV/ERV H 120(170) www.blaubergventilatoren.de SAFETY REQUIREMENTS While operating and mounting unit fulfill the requirements of the present operation manual as well as general requirements of all applicable codes and standards valid in USA and Canada. Ground the unit! Before connecting the unit to power mains make sure that the unit is free of any visible damages or any other foreign objects inside the casing that can damage the impeller blades. -
Page 5: Mounting And Setting-Up
3. Plate cross flow heat recovery core that can be replaced with a summer block when no need for heat recovery. 4. G4 supply air filter. 5. G4 extract air filter. 6. Drain pan (applicable only for HRV H 120(170) 7. Drain hose (included into delivery set). 8. Frost protection thermostat. -
Page 6: Condensate Drainage
CONDENSATE DRAINAGE The unit is equipped with a condensate drain hose for condensate drainage (fig. 5), (applicable only for HRV H 120(170). Connect the drain hose (1), U-trap (3) and drain system (5) with metal, plastic or rubber pipes (2 and 4). The pipes must be sloped down at least by 3°. Before starting operation of the unit fill the system with water and check that U-trap is always filled with water. -
Page 7: Unit Control
HRV/ERV H 120(170) www.blaubergventilatoren.de Black Setup of Low Setup of Med Green White Х1 120V 60Hz Stand by Х2 White Kon 1 White Kon 2 Х3 ~120V PE M1 PE M2 Х5.2 ~24V Brown M1 Х5.1 М1 Cap1 FAN MOTOR Cap1 Сap1 Black M1... -
Page 8: Servicing And Maintenance
Clean the fans with a soft brush or dry cloth. No water and abrasive detergent, sharp objects or solvents are allowed for cleaning to prevent the impeller damage. Condensate drainage system maintenance (once per year), (applicable only for HRV H 120(170). The drain hose can get clogged with the extracted particles. Clean the drain hose is required. Check proper functioning of the drain system by pouring some water into the drain pan at the unit bottom. -
Page 9: Storage And Transportation Rules
HRV/ERV H 120(170) www.blaubergventilatoren.de STORAGE AND TRANSPORTATION RULES • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С (+41 ˚F) to +40 ˚С (+104 ˚F) and relative humidity up to 70 %. •... - Page 10 HRV H 120 (170) HRV/ERV H 120(170) www.blaubergventilatoren.de www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model HRV/ERV H 120(170) Serial Number Manufacture Date We hereby declare that the product complies with the protection requirements of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
- Page 11 HRV/ERV H 120(170) www.blaubergventilatoren.de...
- Page 12 www.blaubergventilatoren.de HRV/ERV_H_120(170)_EN-01...
