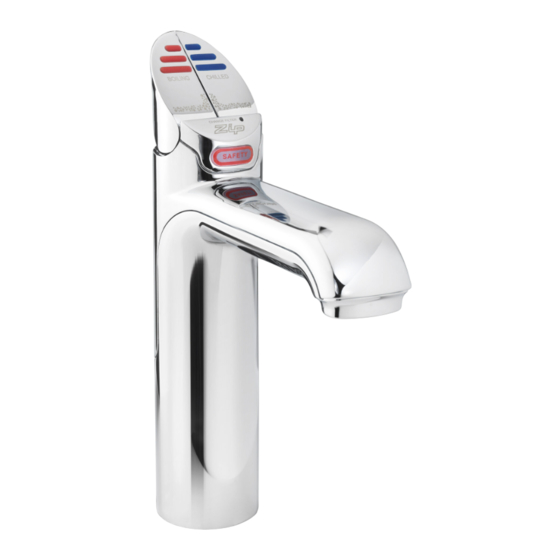

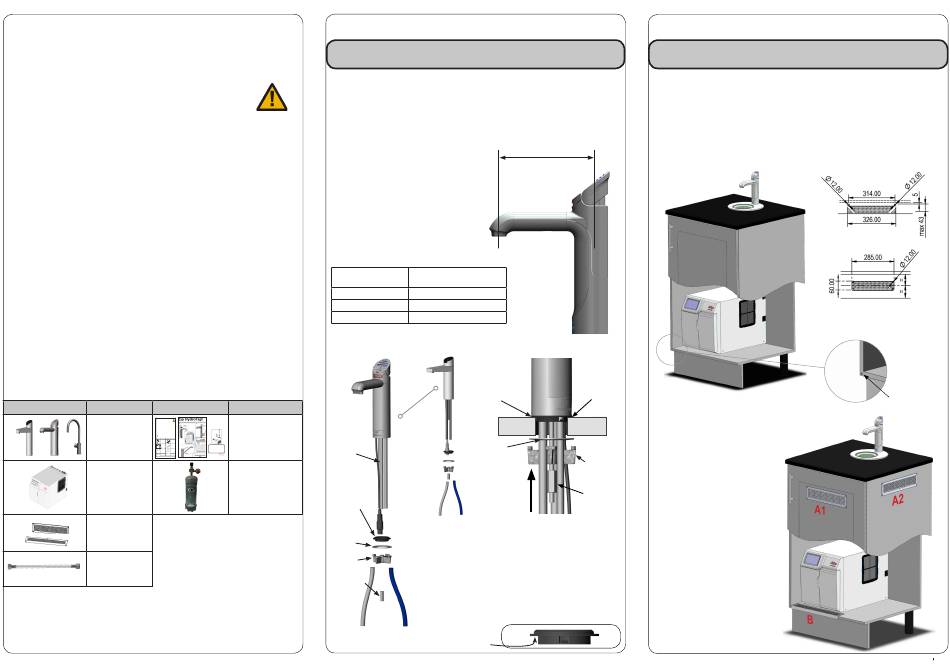

Zip HydroTap G4 Classic Quick Start Manual

Quick Start Guide

Note
VENTILATION IS ESSENTIAL Read 'Step 2' 'Ventilation' before you start.
Note
This quick start guide must be read in conjunction with the Installation instructions
and User manual.
•
Before proceeding, read the Installation instructions and User manual.
•
Check all the components are present and correct.
•
Check that you have all the necessary tools.
•
Ensure the under-counter cupboard floor can support the product weight when full
of water,(check the specifications in the Installation instructions and allow an extra
5-8kg when full of water).
Prior to installation, ensure that the following have been
provided at the installation site.
• Sufficient space in the cupboard to install the Command-Centre
components. Refer to the Technical specification of the Installation instructions for
dimensions.
•
A potable water supply connection with min. / max. working pressures of: (refer
to the Technical specification of the Installation instructions for specific model
information).
•
An isolating valve inside the cupboard within reach of the flexible braided hose and
positioned so that the connection point and the stop cock will not be obstructed
when the Command-Centre and it's ancillary components are installed.
TM
• For Zip HydroTap G4, a single 220-240V AC, 13A socket is required.
®
•
The Command-Centre TM must be installed in accordance with IEE regulations, see
Technical specifications in the Installation instructions, for power ratings.
Note
Check the cable lengths and outlet positions before proceeding and ensure that the
tap location will allow the tap spout to drain into the sink.
• The Command-Centre must be mounted in upright positions, with base mounted
TM
horizontally, as shown overleaf.
IMPORTANT!
Do not proceed with the installation if these requirements are not met.
Parts supplied Description Parts supplied
QUICK START GUIDE STEP 1-
Note: This quick start guide must be read in conjunction with
the main installation and user instructions
1 x HydroTap G4* • • Check all the components are present and correct. Before proceeding, read the installation and user instructions
® • Check that you have all the necessary tools
• (Check the specifications in the main book and allow an extra 5-8kg when full. ) Ensure the underbench can support the product weight when full of water,
Before installing ensure the following have been provided at
the installation site:
• Sufficient space in the cupboard to install all of the undersink units in accordance
required, make allowance for a booster heater. (Refer to the main book, for detailed with these Installation Instructions. Refer to technical specification for dimensions. If
• A potable water supply connection with isolating valve inside the cupboard within installation instructions). BLACK
Classic, Elite stop cock will not be obstructed when all the undersink units are installed. reach of the flexible braided hose and positioned so that the connection point and the PLASTIC SPACER
• For Zip HydroTap 160/125 &160/175 models, a 220-240Vac, 10A GPO will be
required. For Zip HydroTap 240/175 models, two 220-240Vac, 10A GPOs will be required. (One GPO is for the Zip HydroTap and the other for the Booster heater). CLAMP SPIDER
NOTE: Check the cable lengths and outlet positions before proceeding. NUT
• A potable cold water supply with a minimum working pressure of 172kPa and a maximum working pressure of 700kPa connected via an isolation valve.
• For the mains pressure All-IN-ONE, both a hot and cold water supply will be required. Hole positioning:
• The undersink appliances must be mounted in upright positions as shown in the diagrams. the tap could be mounted away from the sink using a Zip Font, avail- the sink bowl with ample clearance for a cup or tea pot. Alternatively,
able as an accessory.
requirements are not met. IMPORTANT! Do not proceed with the installation if these Apply a light smearing of silicon sealant
or # Arc / Cube on the underside of the upper spacer to ensure a watertight fi t.
Parts Supplied Description Parts Supplied Description
Mixer Tap
1 off 1x Air Duct Duct kit
Hydrotap Tap and hoses 1 x Mounting
plate
Vent kit
1 off UPPER
(inc. Tube kit) Undersink Unit 1 x Kickboard louvre WASHER RUBBER
# with air and water- filter 1 x Door vent
1 x front vent grill louvre LOWER RUBBER WASHER
1 x Restrictaflow HydroTap 1 off WASHER
valve and Tee Booster heater
piece for Mixer Taps (Supplied with and hoses NUT
240/175 models) For HydroTap and Mixer taps
cut a 35mm hole in the bench / sink top.
1 off Mains water connection hose
Ø35mm
1 x
Command-
Centre TM with air
and water filters
* Tap options supplied are dependant
2 x Outlet vent
1 x Inlet vent upon configuration purchased.
1 x
Mains water
connection hose
804053UK CS Res Quick Start Guide June 2016 - V3.01
Step 1-
(for Arc / Cube also refer to the tube kit assembly instructions) supplied with the tap.
HydroTap
Tap installation special tool requirements
For the HydroTap
• 35mm diameter sheet metal hole punch for sinks (not supplied).
• 35mm diameter hole saw for worktops (not supplied).
• Nut runner tube spanner for fixing the tap assembly.
Hole positioning
Position the tap such that it dispenses into the
sink bowl with ample clearance for a cup or
tea pot. Alternatively, the tap could be mounted
and it's ancillary
TM
away from the sink using a Zip Font, available
as an accessory. (See Major components and
accessories, Command-Centre
instructions).
Tap positioning
HydroTap
HydroTap
Description
Prepare and fit the Taps
HydroTap Tap All-In-One Tap
ZIP HydroTap (If required) ®
For AIO mains and vented Taps 1 x User manual and
Cut a 50mm hole in the bench / sink top. User Guide
spacer Black plastic SINK TOP
• 50mm Tap Operation...................(Pages 2-5)
ALL THREAD LCD Screen & Menu .......(Pages 6-18)
ROD Stainless washer NOTE: make sure the tap location will allow the nozzle to drain into the sink. •
SPIDER • Maintenance.................... (Pages 18-20)
STAINLESS STAINLESS STEEL Fit the CLAMP • Date of Installation.........
WASHER STEEL SPIDER CLAMP, WASHER, 6mm NUT 1 x Quick start guide
AND 6mm NUT. BC160/125G4
NOTE: feed each of the three tubes and BC240/175G4 BCH160/125G4
the SPIDER CLAMP when installing. electrical cable evenly in between the legs of O-RING AV160/125G4 BCH240/175G4
35mm dia hole AN160/125G4
Position the tap such that it dispenses into BASE BLOCK ALL AV240/175G4 AN240/175G4
SPIDER THREAD ROD O-RING SINK TOP
Sink BASE
BLOCK NUT USB
CABLE 1 x Installation
4-in-1 (If required) then pass all hoses through the 50mm hole. Fit the O-ring to the underside of the AIO tap
Tap All thread
O ring Base
UPPER RUB- BER WASHER Chiller instruction
Clear tube to Vent Affix Model Number Label connection
NOTE: feed each of BLUE Here
BER WASHER LOWER RUB- trical cable evenly in the tubes and elec- Boiler connection 801599
WASHER the BASE BLOCK between the legs of RED
BRAIDED NUT SPIDER.
HOSE x 3 White ring Blue ring on rod
White Hose Ext. Mains on LHS to RHS mains IN to
Mains in Mixer IN
BENCH TOP Blue band Mixer IN From Mixer OUT to Tap - Vented version only
Red band Mixer Out
801600 - Zip Quick Start Guide - October 2013 - V1.06 801599 - HydroTap User Guide - Nov 2013 UK - V1.05 Page 1 of 20
1 x
CO gas cylinder Black
2
assembly plastic
spacer
Stainless
steel
washer
Spider
clamp
6mm nut
Apply a light smearing of silicon sealant on the
underside of the spacer to ensure a watertight fit.
Prepare and install the taps. Refer to 803341UK Tap installation instructions
G4 Classic & Elite tap installation
®
® G4
116
TM Installation
Tap Recommended dispensing
distance (mm)
Elite 116
Classic 116
®
Arc/Cube 171 (-174 extended)
®
HydroTap
Ø35mm hole
Stainless steel
washer
Fit the
stainless steel
washer, spider
clamp, and
6mm nut.
HydroTap G4 Classic & Elite taps
®
Ø35mm hole in the worktop / sink.
Note
Feed each of the three tubes and USB cable evenly in
between the legs of the spider clamp during installation.
Hole positioning
Position the tap such that it dispenses
into the sink bowl with ample clearance for a cup or tea pot.
Alternatively, the tap could be mounted away from the sink using
a Zip Font, available as an accessory. See Major components
and accessories, in the Installation instructions.
Step 2-
Cut cupboard holes and fit the air vent ducts.
.
Ventilation for all models
• The clearance envelope dimensions stated in the specification sheets and installation
instructions must be observed.
• Adequate ventilation must be provided to ensure that the cupboard space
temperature does not exceed 35
Preferred arrangements
4mm door buffers (at the four corners of each door) supplied with the Command-Centre
should be used to provide adequate ventilation in normal usage, see illustration below.
G4 Classic
®
Black plastic
spacer
Note
shown, louvred
outlet vent also
supplied.
Alternative arrangement
For high use applications where the
Spider
cupboard space temperature is near
clamp
35 C or higher, the vent kit supplied
0
can be used to provide further
6mm
ventilation by convection.
nut
Cut a
Note The vent kit has to be
installed in a way that allows air
to be drawn in from the bottom of
the cupboard and expelled through
the top of the cupboard. The outlet
vent should be towards the top of
the door (position A1) or side of the
cupboard (position A2).
(Where possible air inlet vent
and the air outlet vent should be
positioned at opposite ends of the
same cupboard space).
Ventilation
C.
0
B Air inlet vent
A1 or A2 Air outlet vent
Vent cut-out details
Door buffer
Flat outlet vent detail
TM
