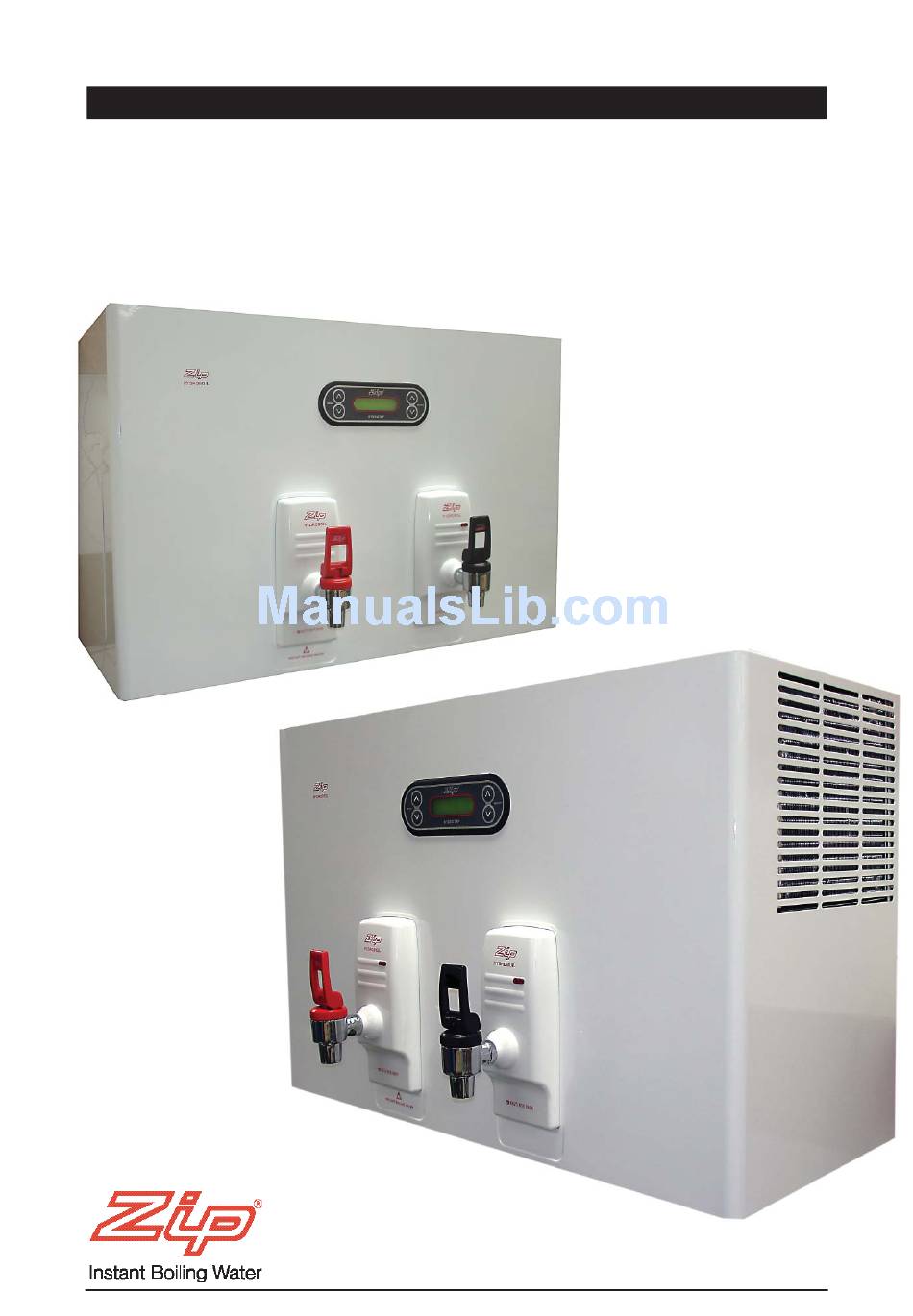

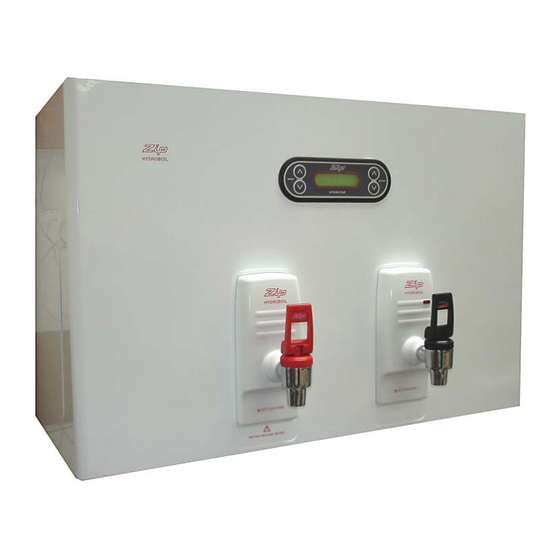

- Page 1 Installation and Operating Instructions Zip Hydroboil Duo Instant boiling and chilled water dispenser with 5 Micron filter (Std.) Std. Model : 310111 -2000 W Std. Model : 320111 - 3500 W Std. Model : 330111 - 2300 W Installation & Operating Instructions - 87078 - May 2012 v1.01...
-
Page 2: Table Of Contents
Contents Model options ................ 2 Read These Warnings First ............ 3 Installation Requirements ............3, 4 & 5 Cleaning ................5 Replacing the Filter ..............5 Setting the Energy Saver Timer ..........6 Trouble Shooting ..............7 End of life disposal ..............7 Spare Parts List &... -
Page 3: Read These Warnings First
In areas where the water quality is above average, lengthening the preset capacity may be desirable, but not essential. If any of these changes is needed, follow the instructions on page 5 or contact your Zip Service Provider. - Page 4 .To prevent sediment from entering the Zip Hydroboil Duo at connection, flush water through the supply line thoroughly before connection to the Zip Hydroboil Duo. With the cover removed check the filter is in place and secure. Connect the water supply (Only use new hose sets, discard any old hoses) turn on water and check for leaks. If no leaks are evident turn the power on.
-
Page 5: Cleaning
Replacing the filter The Zip Hydroboil Duo notifies when filter replacement is due. The default setting is 6000 Ltrs or 12 months, but this can be set in increments of 1000Ltr from 1000Ltr to 10000Ltrs, or from 1-14 months in 30 day increments. Depending on local water quality conditions and usage, the filter may require changing anywhere from 1000 Ltrs to 10000 Ltrs. -
Page 6: Setting The Energy Saver Timer
Setting the energy saver timer Plus adjust button Mode plus button Mode minus button Minus adjust button Normal Operation Set Time To change time, press either Mode or Mode button until Set Time is on the display screen. Press Adjust button to increase time or Adjust button to decrease time. -
Page 7: Trouble Shooting
More than one fault identified messages: at the same time Contact local Zip Service Provider High Altitude Contact local Zip Service provider, ref. Altitude P3 Water continues to boil Refer to the Hydrotap Workshop manual for set- ting instructions Warning:... -
Page 8: Spare Parts List & Diagram (310111)
Spare parts List model 310111 Item Kit No Description 90756 Plumbing and Fittings Kit 150/125 90614 Safety Solenoid Kit 90762 Double Solenoid Kit Hot=0.5li/min, Cold=1.3li/min 90758 Gasket /Grommets Kit 150/125 90753 Filter-Dryer Kit Danfoss Type 90757 Evaporator Kit 150/125 90635 Level Sensor Kit Cold Tank 90773 PCB Kit 150/125 Wall Mounted 90623 Transformer Kit 90763 Leak Sensor Kit 300mm lg... - Page 9 Exploded diaramEeploded diagram Exploded diagram model 310111 Accessory - Frame and Tray Kit Hydroboil Duo Frame and Tray Kit Pt No 90777 Installation & Operating Instructions - 87078 - May 2012 v1.01 Page 9 of 12...
-
Page 10: Spare Parts List & Diagram (320111 And 330111)
Spare parts list model 320111 and 330111 Item Kit No Description 90756 Plumbing and Fittings Kit 150/125 90614 Safety Solenoid Kit 90762 Double Solenoid Kit Hot=0.5li/min; Cold=1.3li/min 90758 Gasket /Grommets Kit 150/125 90753 Filter-Dryer Kit Danfoss Type 90757 Evaporator Kit 150/125 90635 Level Sensor Kit Cold Tank 90755 PCB Kit 15amp 90773 PCB Kit 10amp... - Page 11 Notes page Exploded diagram model 320111 and 330111 Accessory - Frame and Tray Kit Hydroboil Duo Frame and Tray Kit Pt No: 90778 Installation & Operating Instructions - 87078 - May 2012 v1.01 Page 11 of 12...
-
Page 12: Contact Details
Telephone: (02) 9796 3100 Free Call: 1 800 638 633 As Zip policy is one of continuous product improvement, changes to speci- fications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
