AMAZING SCALE DETAIL WITH FUNCTIONING RETRACTS AND FLAPS
Wingspan:
Length:
Flying Weight:
Battery:
Motor:
On-Board Electronics:
Additional Servos:
Top Wing Area:
Bottom Wing Area:
Transmitter:
Specifications
20 3/16 in. (513mm)
17 1/16 in. (433mm)
2.4 oz. (68g)
3.2V 1S 200mAh LiPo
Dual Brushed w/Gearbox
4-in-1 Receiver (2 Servos/ESC)
2 (Ailerons and Retracts/Flaps)
15.15 sq. in. (.977 cu. dm.)
15.15 sq. in. (.977 cu. dm.)
5-Channel 2.4GHz w/Integrated LiPo Charger

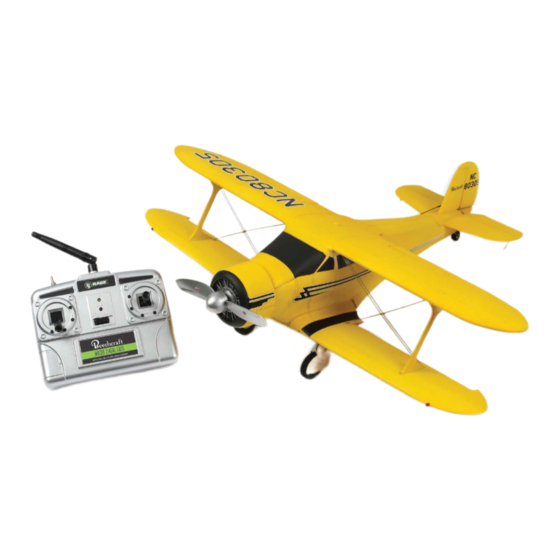

Model D17 "Staggerwing" RTF
Advertisement
Table of Contents
Related Manuals for Rage RGRA1109
Summary of Contents for Rage RGRA1109
-

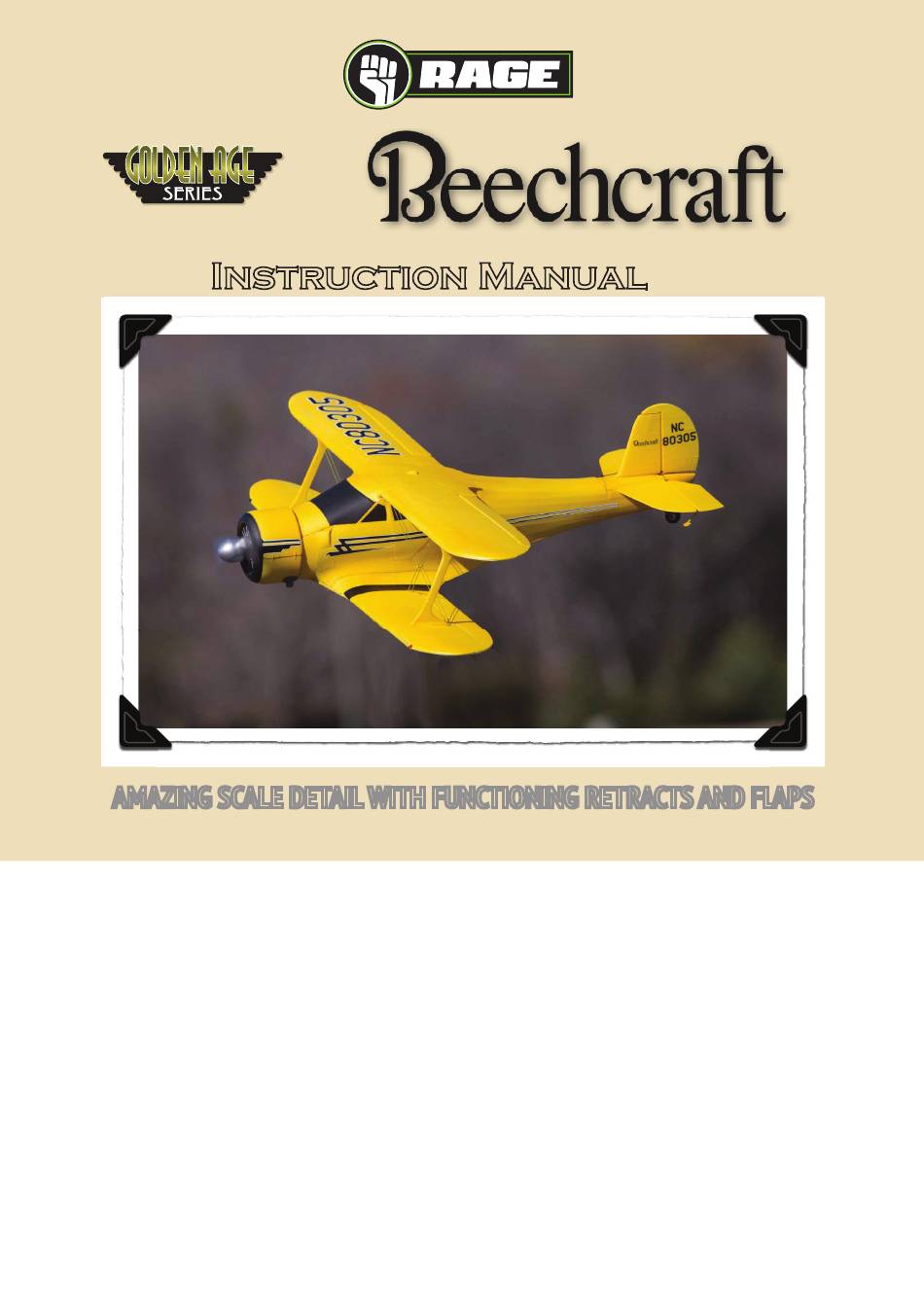

Page 1: Specifications
Model D17 "Staggerwing" RTF AMAZING SCALE DETAIL WITH FUNCTIONING RETRACTS AND FLAPS Specifications Wingspan: 20 3/16 in. (513mm) Length: 17 1/16 in. (433mm) Flying Weight: 2.4 oz. (68g) Battery: 3.2V 1S 200mAh LiPo Motor: Dual Brushed w/Gearbox On-Board Electronics: 4-in-1 Receiver (2 Servos/ESC) Additional Servos: 2 (Ailerons and Retracts/Flaps) Top Wing Area:... -
Page 2: Table Of Contents
Table of Contents Specifications Table of Contents General Precautions Staggerwing Story Safety Precautions Staggerwing RTF Contents FCC Information LiPo Battery Warning Staggerwing Assembly Charging LiPo Battery Battery Install Center of Gravity Transmitter Details Servo Reversing Control Movement Control Movement (cont.) Retract/Flap Operation Binding/Arming Prop Replacement... -
Page 3: Staggerwing Story
Race, Jackie Cochran set a women’s speed record of 203.9 mph (328 km/h) while also establish- ing an altitude record of over 30,000 feet (9,144 m) in a special Model D17W. The Rage Beechcraft Model D17 “Staggerwing” provides smooth, capable flight performance (either indoors or outdoors in light winds) that’s ideal for experienced pilots due to extremely... -
Page 4: Staggerwing Rtf Contents
FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Charging Lipo Battery
Charging LiPo Battery Move charge plug out and close door Yellow Charge Light maintain correct polarity by aligning the red dots lights during charging. When the light goes out, charging is complete. Battery Install The upper half of the engine cowl is held in place by magnets. Remove the upper cowl by gently grasping the sides of the cowl and lifting up. -
Page 6: Transmitter Details
Transmitter Details Antenna Charge Indicator Light Retract Switch Handle Throttle Trim Elevator Trim Throttle/Rudder Stick Aileron/Elevator Rudder Trim Stick Flight Battery Aileron Trim Charge Plug Power Light Power Switch PLEASE NOTE: Install the 4 supplied AA batteries into the battery compartment located on the back of the transmitter, under the battery hatch cover. -
Page 7: Control Movement
Control Movement With both the transmitter and the aircraft powered on, check the movement of the control surfaces. When the elevator stick is moved toward the bottom of the transmitter the elevator should move up. When in flight this will Elevator raise the nose. -
Page 8: Control Movement (Cont.)
Control Movement (cont.) When the aileron stick is moved to the right of the transmitter the right aileron should Aileron move up and the Right left one move down. This will roll the wing to the right. When the aileron stick is moved to the left of the transmitter the... -
Page 9: Binding/Arming
First Flight Perform a preflight check to see that the controls are moving in the correct direction. The ideal flying site needs to be about the size of a ball field and without obstacles. Face the model with its nose pointing into the prevailing wind. Smoothly advance the throttle and allow the aircraft to take off after a short roll. -
Page 10: Parts List
Parts List See your local hobby shop or place of purchase first. If unavailable, parts can be ordered direct at www.ragerc.com or call 1-800-622-7223 M-F 9:00-5:00PM Mountain Time Part Number Description RGRA1109 Beechcraft Model 17 Staggerwing Micro RTF RGRA1191 Propeller and Spinner; Beechcraft RGRA1192 Gearbox w/Shaft; Beechcraft RGRA1193 Gearbox w/Motors; Beechcraft RGRA1194 Propeller Shaft w/Gear; Beechcraft RGRA1195 Replacement Cowl; Beechcraft... -
Page 11: Limited Warranty
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Rage R/C exceed the individual price of the Product on which liability is asserted. As Rage R/C has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or... - Page 12 2018 HRP Distributing, Inc...
