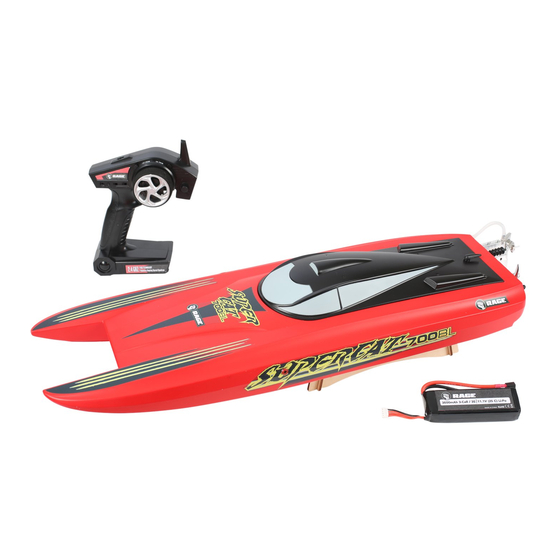

Specifications
Hull:
Hull Length:
Overall Length:
Motor:
ESC:
Transmitter and Receiver:
Battery:
Hull Width:
Servo:
Weight:
INSTRUCTION MANUAL
ABS
24" (61cm)
26-7/8" (69cm)
3540/2000KV Water-Cooled BL Motor
40A Water-Cooled Brushless
2-channel, 2.4GHz
11.1V 3S 3600mAh 25C LiPo
7-3/4" (20cm)
40g Waterproof
42.5 oz. (1200g)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rage SUPERCAT 700BL
Summary of Contents for Rage SUPERCAT 700BL
- Page 1 INSTRUCTION MANUAL Specifications Hull: Hull Length: 24” (61cm) Overall Length: 26-7/8” (69cm) 3540/2000KV Water-Cooled BL Motor Motor: 40A Water-Cooled Brushless ESC: 2-channel, 2.4GHz Transmitter and Receiver: 11.1V 3S 3600mAh 25C LiPo Battery: Hull Width: 7-3/4” (20cm) 40g Waterproof Servo: 42.5 oz. (1200g) Weight:...
-
Page 2: Table Of Contents
LiPo battery charger capable of charging a 3S battery pack, and you’ll be ready to make all the bystanders at the lake green with envy when you show up with your new SuperCat 700BL! Table of Contents Introduction ..............................2... -
Page 3: Quick Start Guide
Quick Start Guide If you’re an experienced RC driver, this list will give you all the information you need to get started driving your new boat as quickly as possible. If this is your first RC vehicle, it is strongly recommended that you read the ENTIRE manual before you attempt to operate your new boat. -
Page 4: Safety Precautions
Please make sure you read the entire instruction manual to become familiar with the features of the Supercat 700BL before operating. Failure to operate this product correctly can result in damage to the product or personal property – and even cause serious injury. -
Page 5: Battery Safety Precautions
Battery Safety Precautions Important Note: Lithium Polymer (LiPo) batteries are more volatile than the alkaline, NiCad and NiMH batteries used in other RC applications. All instructions and warnings must be followed exactly to prevent possible personal injury or damage to property, including by fire. By handling, charging, or using the included LiPo battery you assume all potential risks. -
Page 6: Lipo Battery Warning
However, even before the LVC takes place, if you find that more than typical throttle is needed to power the boat you should drive it back to yourself and disconnect the battery immediately to avoid over-discharge. It is NOT recommended that you continue to drive the boat after LVC occurs or permanent damage to the battery could occur leading to reduced power and run times with future use. -
Page 7: Battery Installation
LiPo cells should not be discharged to below 3.0V each under load. In the case of the 3-Cell/3S 11.1V LiPo battery used to power the SuperCat 700BL, you will not want to allow the battery to fall below 9.0V during operation. -
Page 8: Transmitter Operation
Transmitter Operation Servo Reversing Switches Transmitter Details Thro�le Reverse Switch Steering Trim Thro�le Trim Antenna 5:5 / 7:3 Switch Steering Reverse Switch Thro�le Reverse Steering Reverse ON/OFF Switch Steering Rate Knob Indicator LED Bind Bu�on Steering Wheel Thro�le Trigger If the direction of travel on the rudder is backwards, slide the steering reverse switch to the other position. - Page 9 Throttle Ratio Switch set to 7:3 The steering trim button is used to adjust the steering To safely operate the SuperCat 700BL, the switch trim when the wheel is centered. on the top of the transmitter has been fixed in the...
- Page 10 Failsafe Setting • Steering The SuperCat 700BL comes with the receiver failsafe set to NONE. In the event of loss of signal the motor Le� Right will stop and the vehicle will drift.
-
Page 11: Checking The Radio System And Getting Started
Changing the Travel Adjust Settings • Connect the equipment into an outlet on a circuit different from that to which the receiver is The travel function supports precise endpoint connected. adjustments in each direction for the steering and • Contact your local retailer. throttle channels. -
Page 12: Boating Tips
Before using on a pond or lake consult sharper turns as your skills increase. local laws and ordinances before choosing a location You will likely find that the SuperCat 700BL to run your boat. turns more tightly to the right than to the left. -
Page 13: Boat Maintenance
Boat Maintenance Always replace the shaft when it is damaged or shows Coupling visible wear. Running the boat with a damaged shaft will not only damage the boat and void the warranty, but could also cause personal injury or property damage. -
Page 14: Troubleshooting
Problem Possible Cause Solution Boat will not respond Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Extra noise or extra Damaged propeller, shaft or motor Replace damaged parts... -
Page 15: Replacement Parts List
Battery C rating might be too small Use recommended battery Replacement Parts List Need spare parts? Contact your local hobby shop or place of purchase. If unavailable, contact Rage RC direct at (800) 860-3709 or visit www.hobbyrecreationproducts.com. Part Number Part Description... -
Page 16: Warranty
Purchaser’s Remedy - Rage R/C’s sole obligation and purchaser’s sole and exclusive remedy shall be that Rage R/C will, at its option, either (a) service, or (b) replace, any Product determined by Rage R/C to be defective. Rage R/C reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Rage R/C. - Page 17 Operating and Maintenance Notes:...
